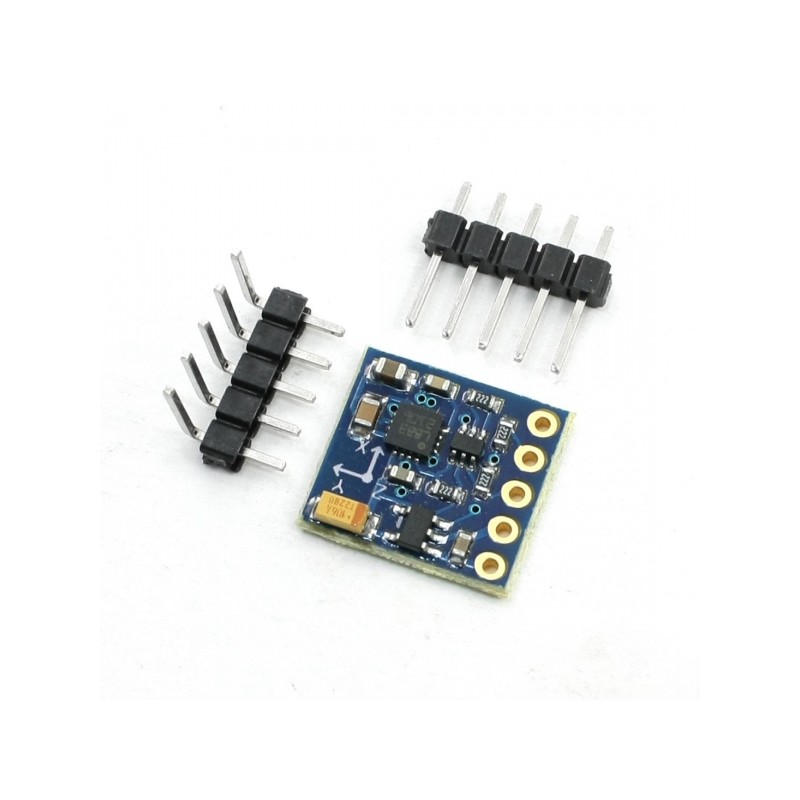

Bússola HMC5883L 3 eixos c/ Regulador 3.3Vdc

:SEN02011
7,90 €
preço com IVA incluído

Este módulo usa o chip HMC5883L da Honeywell que é uma bússola digital de 3 eixos com interface i2c.

A alimentação pode ser entre 3~5Vdc.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

The Compass Module is designed for low-field magnetic sensing with a digital interface and perfect to give precise heading information. This compact sensor fits into small projects such as UAVs and robot navigation systems. The sensor converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions.

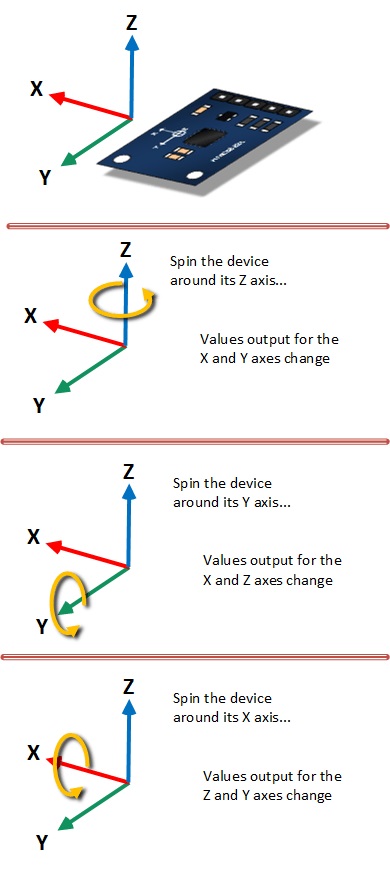

Orientation



Specifications:

  • Power 3V-5VDC
  • Chipset HMC5883L
  • Communication via I2C protocol
  • Measuring range: ± 1.3-8 Gauss
  • Dimensions 14.8 x 13.5 x 3.5mm

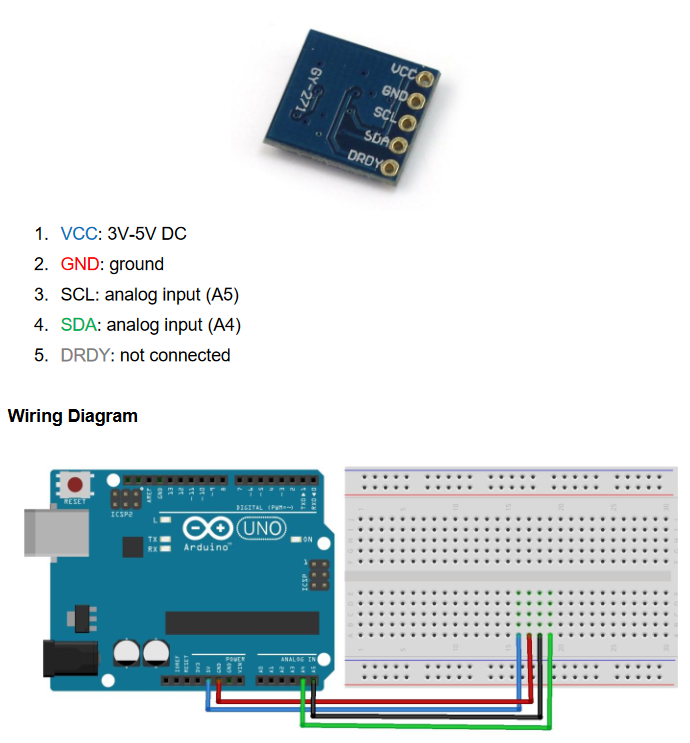

Pinout Configuration:

Pinout



Documents:

SEN02011
