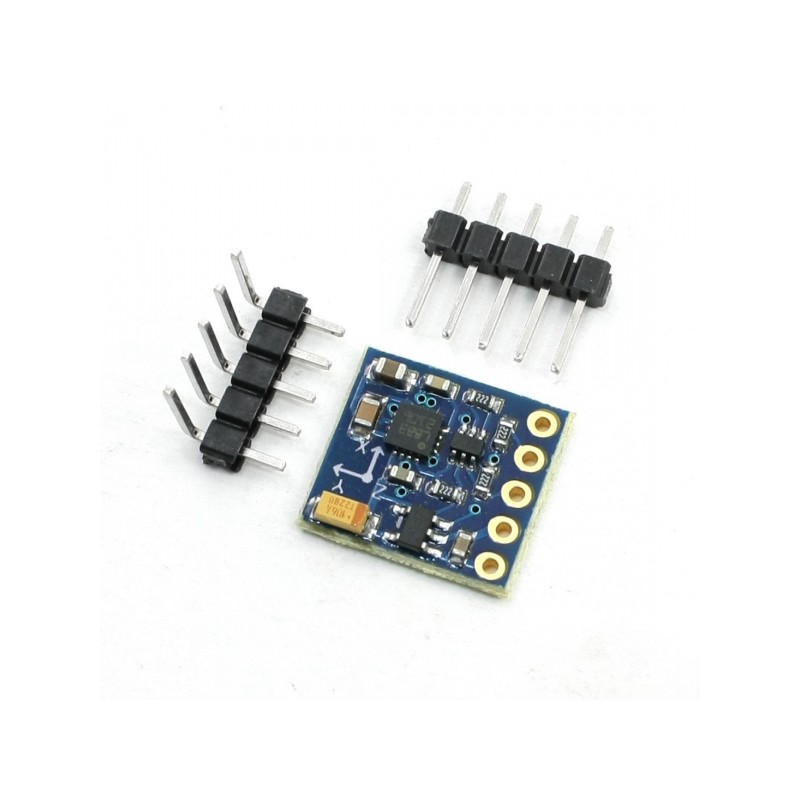

Triple Axis Magnetometer Breakout - HMC5883L with 3.3V regulator

:SEN02011
€7.90
Tax included

The Compass Module is designed for low-field magnetic sensing with a digital interface and perfect to give precise heading information. This compact sensor fits into small projects such as UAVs and robot navigation systems. The sensor converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

The Compass Module is designed for low-field magnetic sensing with a digital interface and perfect to give precise heading information. This compact sensor fits into small projects such as UAVs and robot navigation systems. The sensor converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions.

Orientation



Specifications:

  • Power 3V-5VDC
  • Chipset HMC5883L
  • Communication via I2C protocol
  • Measuring range: ± 1.3-8 Gauss
  • Dimensions 14.8 x 13.5 x 3.5mm



Pinout Configuration:

Pinout
