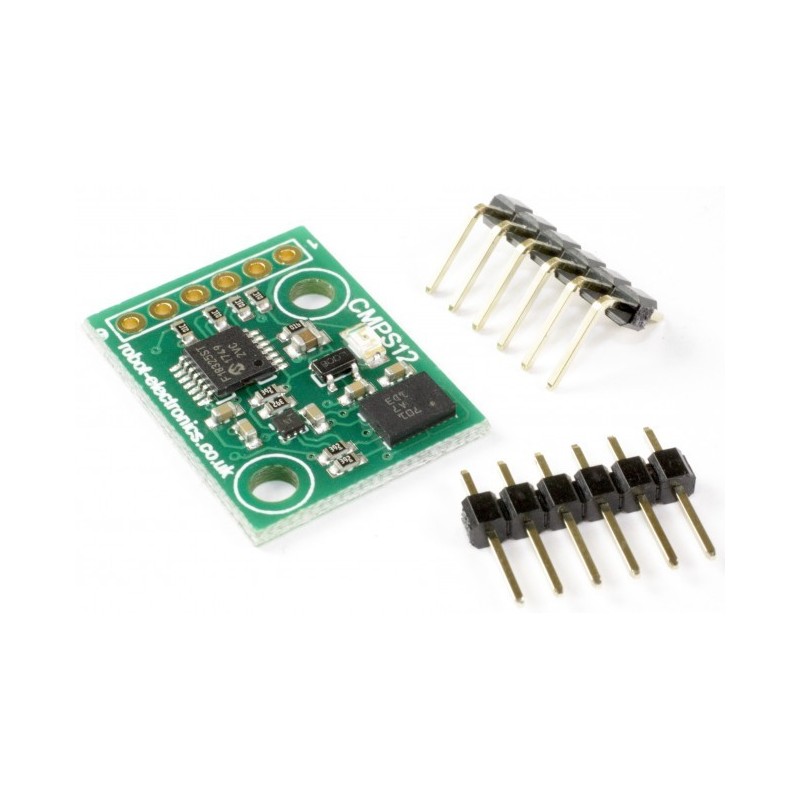

Bússola CMPS12

:SEN02007
34,50 €
preço com IVA incluído

A CMPS12 é a 4ª geração de bússolas da Robot-Electrónics. Baseada no sensor da Bosh BNO55 está melhor do que nunca!

Alimentação: 3.3v-5v 18mA Typ
Resolução: 0.1 graus
Precisão: <1% após calibração
Sinais TTL: tolerantes a 3.3V e 5V.
Comunicação i2C: 400KHz
Comunicação série: 9600, 19200, 38400 baud

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The 4th generation tilt compensated compass, powered by the Bosch BNO055, delivering better performance than ever!

Power - 3.3v-5v 18mA Typ.
Resolution - 0.1 Degree
Accuracy - Better than 1%. after calibration
Signal levels - 3.3v, 5v tolerant
I2C mode - up to 400khz
Serial mode - 9600, 19200, 38400 baud

Full Technical Data

We also have a free design for a 3d printed tower here

Examples:
I2C bus tutor - general I2C guide
Arduino - I2C interface or a serial interface and displaying data via the serial monitor
ATMEGA32 - reading the result and displaying on a LCD03/LCD05
PIC18F4410 - reading the result and displaying on a LCD03/LCD05
PIC24FJ16GA002 - reading the result and displaying on a LCD03/LCD05
Picaxe18x - I2C communication example
Raspberry Pi - using I2C communication
