IMU c/ 10 graus de liberdade - Baixo Consumo

:SEN16000
13,74 €
preço com IVA incluído
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Overview

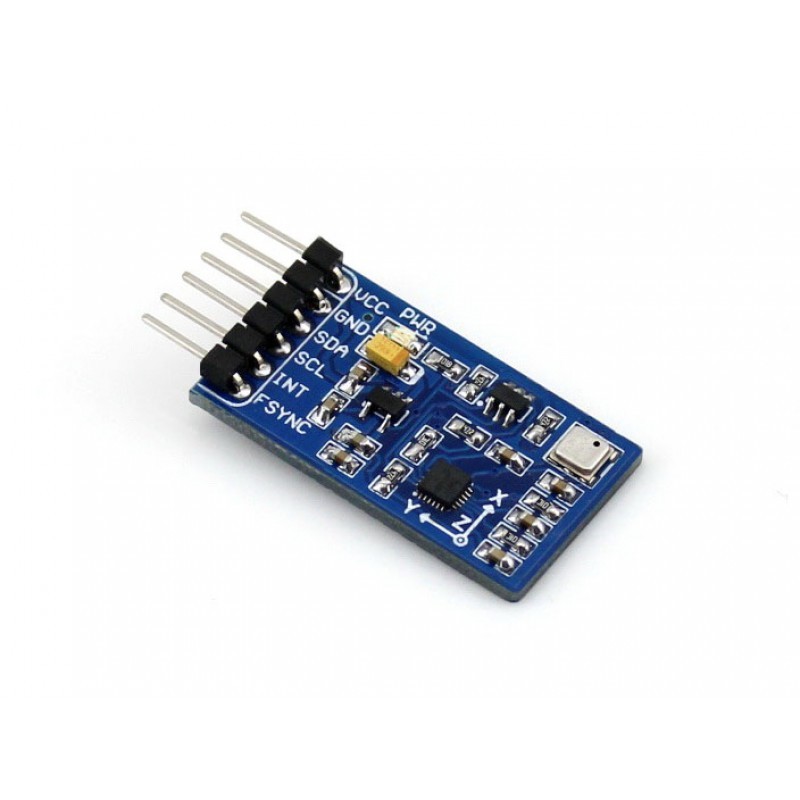

10 DOF IMU Sensor (B) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your own copter or balancing robot, provides great man-machine interaction.



Features

  • MPU9255 : 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
    • Internal Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
    • Comparing with MPU6050, the MPU9255 is lower power consumption, and more suitable for wearable devices
  • BMP180 : barometric pressure sensor
    • Embedded temperature sensor for temperature compensation
  • You can get the 10 DOF data through I2C interface



Specifications

  • Power : 3.3V~5.5V (internal voltage regulation with low dropout)
  • Accelerometer
    • Resolution : 16 bit
    • Measurement range (configurable) : ±2, ±4, ±8, ±16g
    • Operating current : 450uA
  • Gyroscope
    • Resolution : 16 bit
    • Measurement range (configurable) : ±250, ±500, ±1000, ±2000°/sec
    • Operating current : 3.2mA
  • Compass/Magnetometer
    • Resolution (configurable) : 14 or 16 bit
    • Measurement range : ±4800µT
    • Operating current : 280uA
  • Barometric pressure sensor
    • Resolution (configurable) : 16~19 bit
    • Measurement range : 300~1100hPa (altitude : +9000m~-500m)
    • Accuracy : 0.02hPa(0.17m)



Applications

  • Quadcopter
  • Balancing robots
  • Indoor inertial navigation
  • Barometric altimeter
  • Industry measurement



Interface

PIN NO.

SYMBOL

DESCRIPTION

1

VCC

3.3V~5.5V power supply

2

GND

power ground

3

SDA

I2C data pin

4

SCL

I2C clock pin

5

INT

MPU9255 digital interrupt output

6

FSYNC

MPU9255 vertical sync signal



Development Resources

Wiki : www.waveshare.com/wiki/10_DOF_IMU_Sensor_(B)
