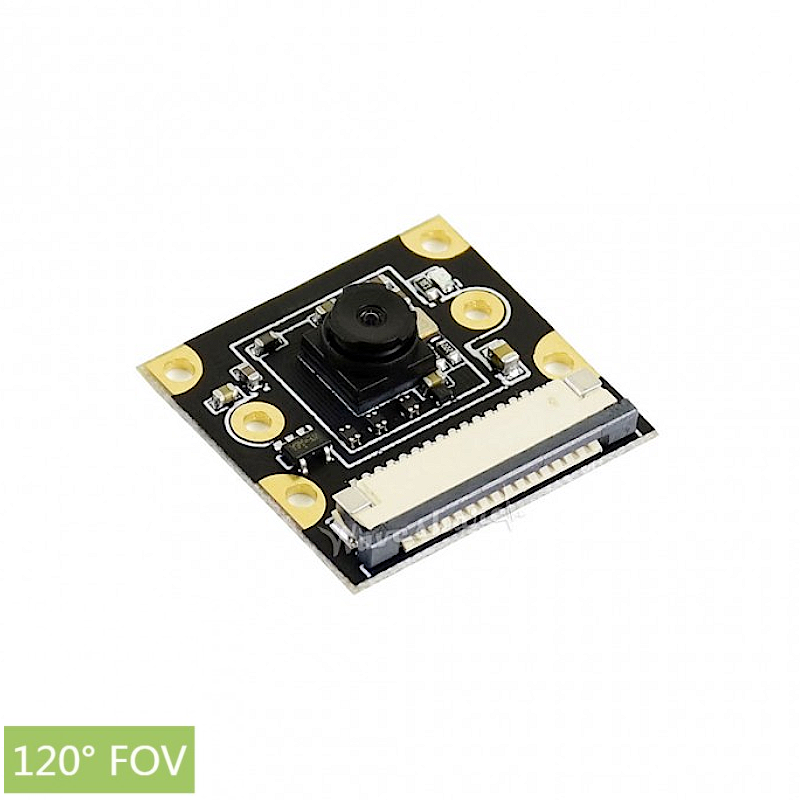

IMX219-120 Câmara 120º FOV para Jetson Nano

:SEN04059
24,50 €
preço com IVA incluído

Esta camara de 8 Megapixeis e de 120º de FOV, é ideal para Jetson Nano, podes usar esta câmara para reconhecimento facial, detecção de linha, reconhecimento de matrículas, etc..

Se quiseres saber mais sobre este producto, consulta a sua Wiki Page.

NOTA: Este produto inclui apenas o a câmara e um cabo F-F de 16cm. Placa Jetson Nano não incluída.

Quantidade
Últimos artigos em stock

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

  1. Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX

  2. 8 Megapixels

  3. Sensor: IMX219

  4. Resolution: 3280 × 2464

  5. Lens specifications:

    1. CMOS size: 1/4inch

    2. Aperture (F): 2.0

    3. Focal Length: 1.79mm

    4. Angle of View (diagonal): 120 degree

    5. Distortion: <13.6%

    6. Lens dimensions: 6.5mm × 6.5mm

  6. 4 screw holes

    1. Used for attachment

    2. Provides 3.3V power output

  7. Dimension: 25mm × 24mm



Applications

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

  1. Face recognition
  2. Road mark detection
  3. License plate recognition



Development Resources

Wiki: www.waveshare.com/wiki/IMX219-120_Camera



Selection Guide

PRODUCT

PIXELS

SENSOR

INFRARED

CAMERA

ANGLE OF VIEW (DIAGONAL) (DEGREE)

APERTURE (F)

FOCAL LENGTH (MM)

PCBA

SUIT FOR

RPi Camera V2

8 Mega

IMX219

×

1

62.2

2.0

3.04

√

Raspberry Pi, CM3/3+/4,
Jetson Nano, Jetson Xavier NX

IMX219-D160

×

1

160

2.35

3.15

×

RPi NoIR Camera V2

√

1

62.2

2.0

3.04

√

Raspberry Pi, CM3/3+/4,
Jetson Nano

IMX219-77 Camera

×

1

79.3

2.0

2.85

√

CM3/3+/4,
Jetson Nano, Jetson Xavier NX

IMX219-77IR Camera

√

1

79.3

2.0

2.85

√

IMX219-120 Camera

×

1

120

2.0

1.79

√

IMX219-160 Camera

×

1

160

2.35

3.15

√

IMX219-160IR Camera

√

1

160

2.35

3.15

√

IMX219-160 IR-CUT Camera

√

1

162

2.7

1.75

√

IMX219-170 Camera

×

1

170

2.4

2.2

√

IMX219-200 Camera

×

1

200

2.0

0.87

√

IMX219-83-Stereo-Camera

×

2

83

2.4

2.6

√

CM3/3+/4, Jetson Nano (B01),
Jetson Xavier NX

  1. The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs

  2. Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
    Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
    Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit



Package Content

Weight: 0.012 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

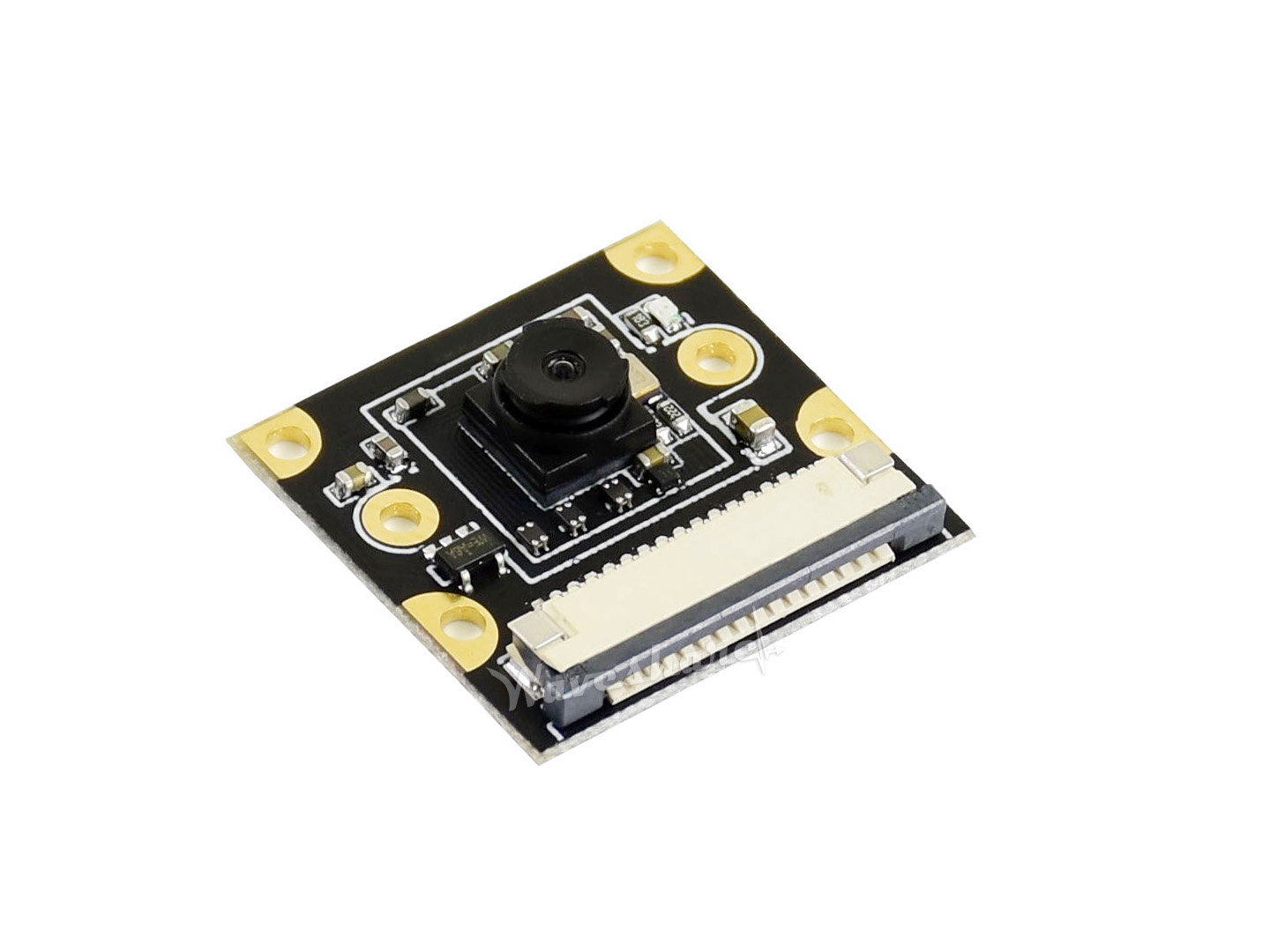

  1. IMX219-120 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
1IMX219-120-Camera-1_93.jpg 2FFC-15pin-16cm-opposite_93.jpg
