• DESCONTINUADO

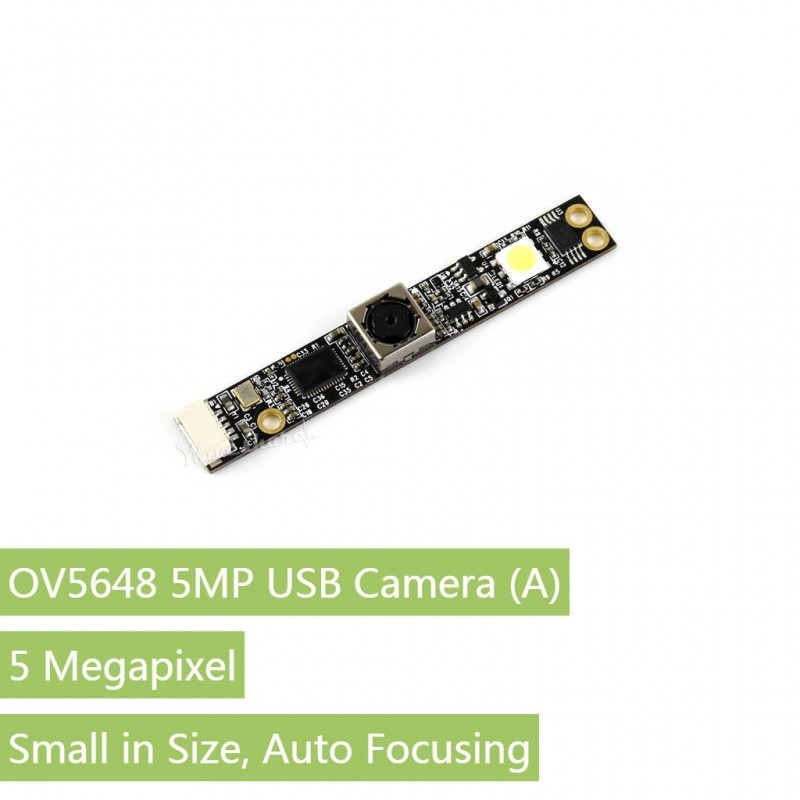

Camara USB OV5648 5MP (A), com Auto Focusing (cabo USB incluido)

:SEN04030
28,75 €
preço com IVA incluído

Com esta mini camera USB de 5 megapixéis e foco automático poderás desenvolver projetos de vídeo e imagem com a tua Raspberry Pi ou PC.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

  • 5 megapixel OV5648 sensor
  • 2592x1944 resolution
  • USB interface, UVC protocol, auto focusing, driver-free, plug-and-play
  • Small in size, easy to integrate into your project
  • DSP
    • Automatic white balance (AWB)
    • Automatic exposure (AEC)
    • Automatic gain control (AGC)
  • Camera specifications
    • CCD size: 1/4inch
    • Aperture (F): 2.8
    • Focal Length (EFL): 3.34mm
    • Field of View (Diagonal): 70°
  • Interface: USB2.0
  • Image formats: MJPEG, YUY2
  • Operating temperature: 0°C ~ 50°C
  • Dimension: 9mmx62mm
  • Supported OS: Windows, Linux

Dimensions

OV5648 5MP USB Camera (A) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/OV5648_5MP_USB_Camera_(A)

Selection Guide

Part Number Pixels Sensor Best Resolution Dimension Field of View  Feature
OV2710 2MP USB Camera (A) 2 mega OV2710 1920x1080 38mmx38mm 145° Low-light sensitivity
OV5648 5MP USB Camera (A) 5 mega OV5648 2592x1944 9mmx62mm 70° Small in size
 IMX179 8MP USB Camera (A) 8 mega IMX179 3288x2512 38mmx38mm 145° HD, Embedded digital mic



PACKAGE CONTENT

Weight: 0.03 kg

  • OV5648 5MP USB Camera (A) x1
  • USB to 5-pin cable x1

1OV5648-5MP-USB-Camera-A-1_93.jpg 2USB-5PIN_93.jpg

SEN04030
