IMX219-83 Stereo Camera, 8MP Binocular Camera Module, Depth Vision

:SEN04045
€59.90
Tax included

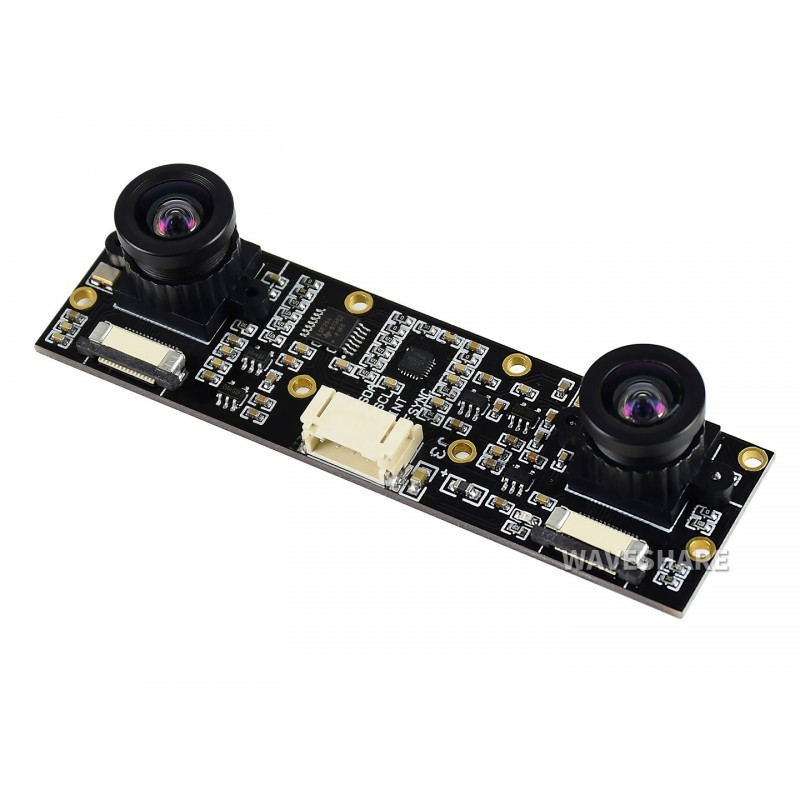

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464 (per camera)
  • Lens specifications:
    • CMOS size: 1/4inch
    • Focal Length: 2.6mm
    • Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
    • Distortion: <1%
    • Baseline Length: 60mm
  • ICM20948:
    • Accelerometer:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±2, ±4, ±8, ±16g
      • Operating Current: 68.9uA
    • Gyroscope:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
      • Operating Current: 1.23mA
    • Magnetometer:
      • Resolution: 16-bit
      • Measuring Range: ±4900μT
      • Operating Current: 90uA
  • Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

Example

IMX219-83 Stereo Camera dimensions

Note: for reference only, Jetson Nano Developer Kit (B01) is NOT included.

Dimensions

IMX219-83 Stereo Camera dimensions

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

Selection Guide

PRODUCT PIXELS SENSOR INFRARED CAMERA ANGLE OF VIEW (DIAGONAL) (DEGREE) APERTURE (F) FOCAL LENGTH (MM) PCBA SUIT FOR
RPi Camera V2 8 Mega IMX219 × 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+, Jetson Nano
RPi NoIR Camera V2 √ 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+, Jetson Nano
IMX219-77 Camera × 1 77 2.0 2.96 √ CM3/3+, Jetson Nano
IMX219-77IR Camera √ 1 77 2.0 2.96 √ CM3/3+, Jetson Nano
IMX219-120 Camera × 1 120 2.2 1.88 √ CM3/3+, Jetson Nano
IMX219-160 Camera × 1 160 2.35 3.15 √ CM3/3+, Jetson Nano
IMX219-160IR Camera √ 1 160 2.35 3.15 √ CM3/3+, Jetson Nano
IMX219-170 Camera × 1 170 2.0 2.2 √ CM3/3+, Jetson Nano
IMX219-200 Camera × 1 200 2.0 0.87 √ CM3/3+, Jetson Nano
IMX219-D160 × 1 160 2.35 3.15 × Raspberry Pi, CM3/3+, Jetson Nano
IMX219-83-Stereo-Camera × 2 83 - 2.6 √ CM3/3+, Jetson Nano (B01)



PACKAGE CONTENT

Weight: 0.023 kg

  1. IMX219-83 Stereo Camera x1
  2. FFC (2PCS) x1
  3. PH2.0 4PIN wire x1
