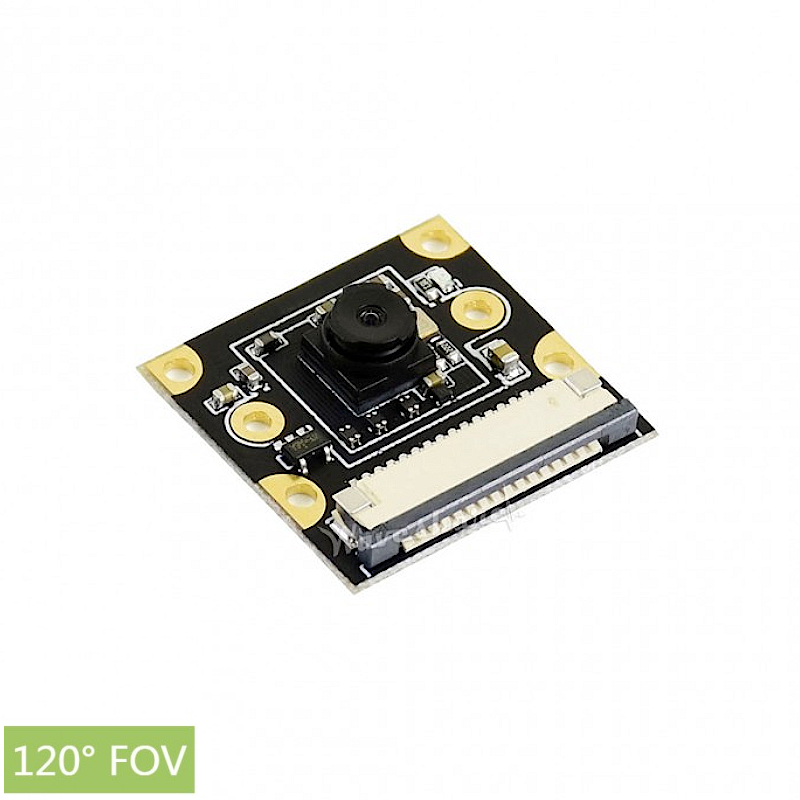

IMX219-120 Camera, 120° FOV, Applicable for Jetson Nano

:SEN04059
€24.50
Tax included

IMX219-120 Camera, Applicable For Jetson Nano, 8 Megapixels, 120° FOV

If you want to know more about this product, please check the Wiki Page.

NOTE: This product only includes the camera and a 16cm F-F cable. Jetson Nano board not included.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  1. Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX

  2. 8 Megapixels

  3. Sensor: IMX219

  4. Resolution: 3280 × 2464

  5. Lens specifications:

    1. CMOS size: 1/4inch

    2. Aperture (F): 2.0

    3. Focal Length: 1.79mm

    4. Angle of View (diagonal): 120 degree

    5. Distortion: <13.6%

    6. Lens dimensions: 6.5mm × 6.5mm

  6. 4 screw holes

    1. Used for attachment

    2. Provides 3.3V power output

  7. Dimension: 25mm × 24mm



Applications

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

  1. Face recognition
  2. Road mark detection
  3. License plate recognition



Development Resources

Wiki: www.waveshare.com/wiki/IMX219-120_Camera



Selection Guide

PRODUCT

PIXELS

SENSOR

INFRARED

CAMERA

ANGLE OF VIEW (DIAGONAL) (DEGREE)

APERTURE (F)

FOCAL LENGTH (MM)

PCBA

SUIT FOR

RPi Camera V2

8 Mega

IMX219

×

1

62.2

2.0

3.04

√

Raspberry Pi, CM3/3+/4,
Jetson Nano, Jetson Xavier NX

IMX219-D160

×

1

160

2.35

3.15

×

RPi NoIR Camera V2

√

1

62.2

2.0

3.04

√

Raspberry Pi, CM3/3+/4,
Jetson Nano

IMX219-77 Camera

×

1

79.3

2.0

2.85

√

CM3/3+/4,
Jetson Nano, Jetson Xavier NX

IMX219-77IR Camera

√

1

79.3

2.0

2.85

√

IMX219-120 Camera

×

1

120

2.0

1.79

√

IMX219-160 Camera

×

1

160

2.35

3.15

√

IMX219-160IR Camera

√

1

160

2.35

3.15

√

IMX219-160 IR-CUT Camera

√

1

162

2.7

1.75

√

IMX219-170 Camera

×

1

170

2.4

2.2

√

IMX219-200 Camera

×

1

200

2.0

0.87

√

IMX219-83-Stereo-Camera

×

2

83

2.4

2.6

√

CM3/3+/4, Jetson Nano (B01),
Jetson Xavier NX

  1. The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs

  2. Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
    Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
    Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit



Package Content

Weight: 0.012 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. IMX219-120 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
1IMX219-120-Camera-1_93.jpg 2FFC-15pin-16cm-opposite_93.jpg
