• DESCONTINUADO

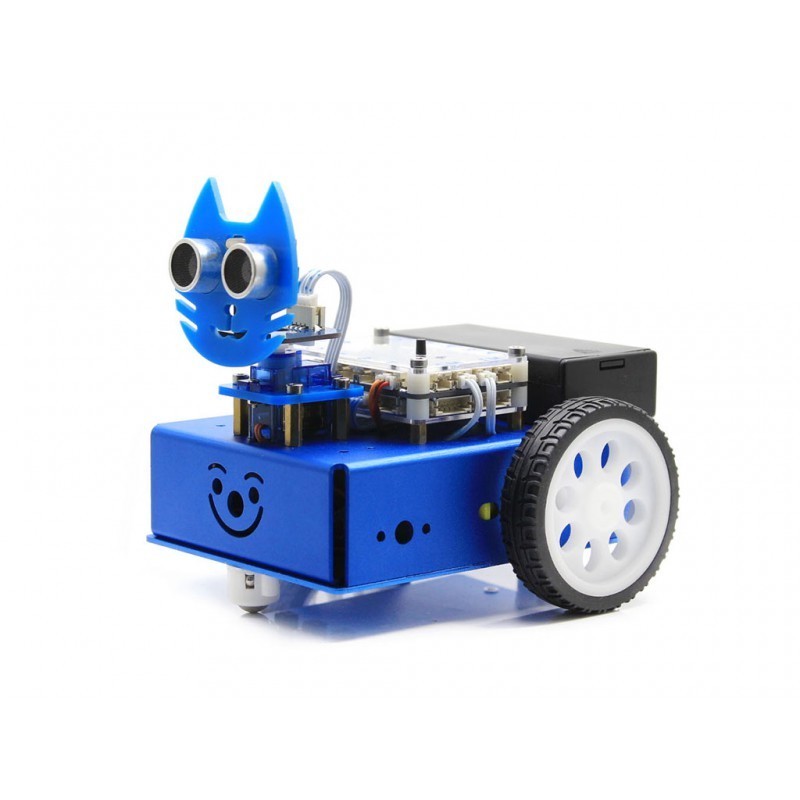

KitiBot, Robô Iniciação, Programação Gráfica, Versão 2WD

: ROB05015
60,98 €

KitiBot é especialmente projetado para a educação, vem com um software de programação gráfica para ajudar as crianças a aprender a programar com blocos de construção facilmente. KitiBot-MG-W é a versão 2WD.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Combined with the open source demo codes from Waveshare, KitiBot is also an ideal choice for electronics enthusiasts and creators to fast get started with robotic development.

KitiBot features a control board named Mega2560, and several typical robotic functional modules includes: line tracking, obstacle avoiding, ultrasonic ranging, servo, IR remote control, etc.

What's on the Mega2560

Mega2560 is an ATMEGA2560-16AU development board, compatible with the Arduino Mega 2560 R3, offers higher performance and more RAM than the UNO R3.

There're various programmable modules like dual-mode Bluetooth, gesture sensor, ambient light sensor, IR receiver, RGB LED, buzzer, and so on. For easily connecting with more expansion devices, it also breakout I2C, SPI, UART interfaces and provides sufficient sensor connectors.

Mega2560 onboard resources

  1. ATMEGA2560-16AU:
    FLASH: 256KB (8KB for bootloader)
    SRAM: 8KB
    EEPROM: 4KB
  2. TB6612FNG: dual H-bridge motor driver
  3. Dual-mode Bluetooth: Bluetooth remote control, compatible with both iOS and Android
  4. AMS1117-5.0: 5V regulator
  5. FT232RL: USB to UART
  6. IR receiver: IR remote control
  7. MPU9255 gesture sensor: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
  8. TSL2581FN light sensor: detect ambient light
  9. Buzzer: essential component to play music
  10. WS2812B: RGB LED
  11. User button
  12. Power switch
  13. Indicators:
    USR: user indicator
    STA: Bluetooth status indicator
    PWR: power indicator
  14. Reset
  15. Micro USB connector: for programming or UART debugging
  16. Peripheral connectors: for connecting external devices and sensors
  17. Motor interface
  18. Power supply interface: 7V~12V input

KitiBot-MG-W illustration KitiBot-MG-W illustration KitiBot-MG-W illustration KitiBot-MG-W illustration KitiBot-MG-W illustration

Development Resources

  • Tutorials
  • KitiBot how-to-install
  • Demo code
  • Circuit diagram
  • Development software

Wiki : www.waveshare.com/wiki/KitiBot-MG

Weight: 0.582 kg

Note: this product requires two 18650 batteries to work, which are NOT included and should be purchased separately.

  1. Metal box x1
  2. Mega2560 control board x1
  3. Acrylic panels for control board 2PCS x1
  4. Line tracking sensor x1
  5. Ultrasonic sensor x1
  6. KitiBot acrylic head x1
  7. Servo x1
  8. Servo mounting board x1
  9. Ultrasonic adapter x1
  10. Motors 2PCS x1
  11. Wheels 2PCS x1
  12. Omni-direction wheel 2PCS x1
  13. Infrared remote controller x1
  14. 18650 battery holder x1
  15. PH2.0 20cm 4Pin same side contact cable x1
  16. PH2.0 20cm 7Pin same side contact cable x1
  17. USB type A plug to micro B plug cable x1
  18. Screwdrivers 2PCS x1
  19. KitiBot-MG-W screws x1
ROB05015
