Módulo Acelerómetro 3 Eixos ADXL335 GY-61

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

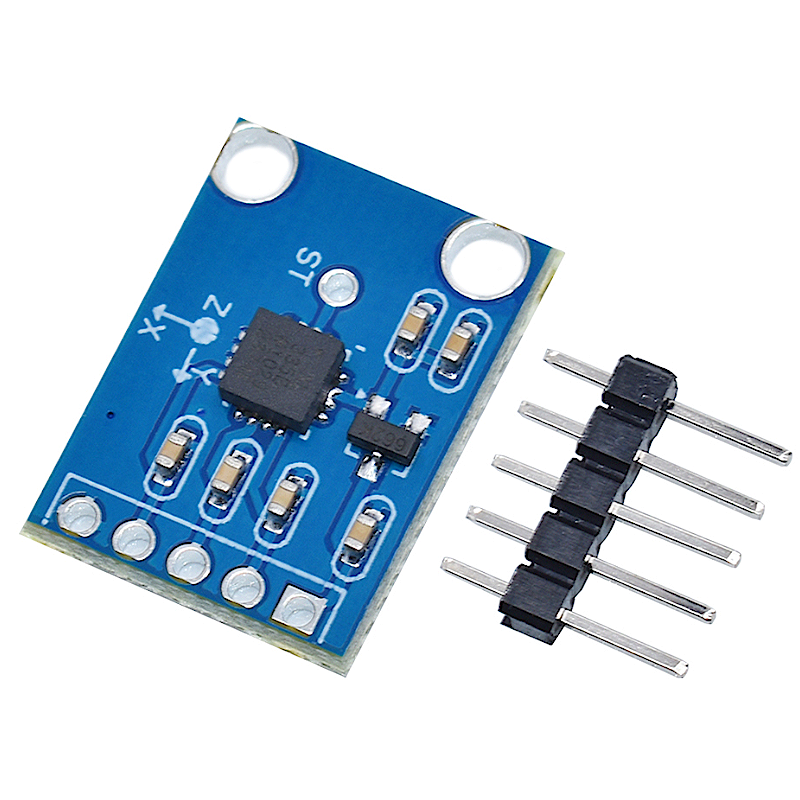

This is a very low cost break out module for the ADXL335 tripple axis accelerometer. This module includes optional header pins and provides easy access to the X, Y and Z axis analogue outputs from the accelerometer. It is capable of sensing forces up to 3g in all axis. A 3.3V on-board regulator is also provided allowing the module to be powered from a 3.3 to 5V power supply source.

Specification:

1. Supply Range: 3V to 5V

2. 3-Axis sensing

3. Full scale range: +/-3g

4. Sensitivity: 300mV/g (Typ)
