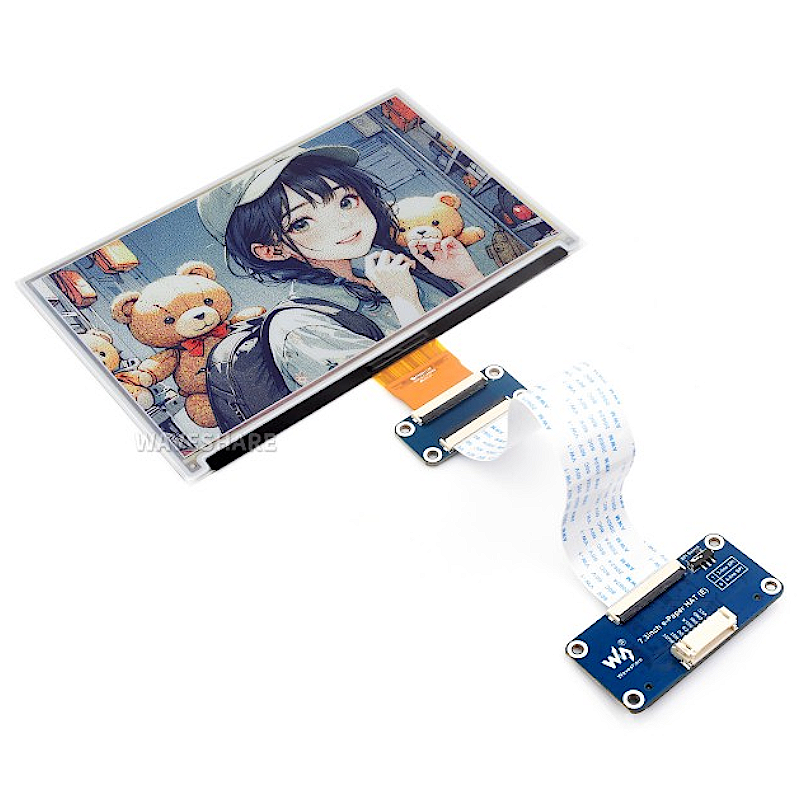

Módulo Display E-Ink 7.3inch 800×480 170º a Cores, Low Power, SPI (módulo driver incluído) - Waveshare 27875

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

 Features at a glance

1. Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation

2. No backlight, keeps displaying last content for a long time even when power down

3. Ultra low power consumption, basically power is only required for refreshing

4. Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32)

5. Optional for e-Paper Driver HAT:

   1. With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano/RDK X3

   2. Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32, etc.

   3. Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

E Ink Spectra 6 technology

E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.

Spectra displays are made of millions of Microcups which suspend the four different colored particles in clear fluid.

By applying a negative charge the red particles rise to the top and become visible

A split charge raises blue particles to the top and become visible

More advanced performance

The resolution is up to 200ppi, features a wider range of operating temperature and faster screen refresh time. And it is more power-saving, aligning with ESG trends for energy efficiency and carbon reduction

Innovative microcup full color technology platform

Using blue charged particles to produce six primary colors, and employing dithering technology to create vivid and saturated full color images.

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards / Jetson Nano / RDK X3

* for reference only, the controller boards above are NOT included.

Onboard SPI control interface on e-Paper Driver HAT

for use with controller boards like Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32

Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/7.3inch_e-Paper_HAT_(E)

Package Content

Weight: 0.094 kg

7.3inch e-Paper (E) x1

1. e-Paper Driver HAT + Adapter board + FFC cable x1

2. PH2.0 8PIN cable x1

3. RPi screws pack (2pcs) x1
