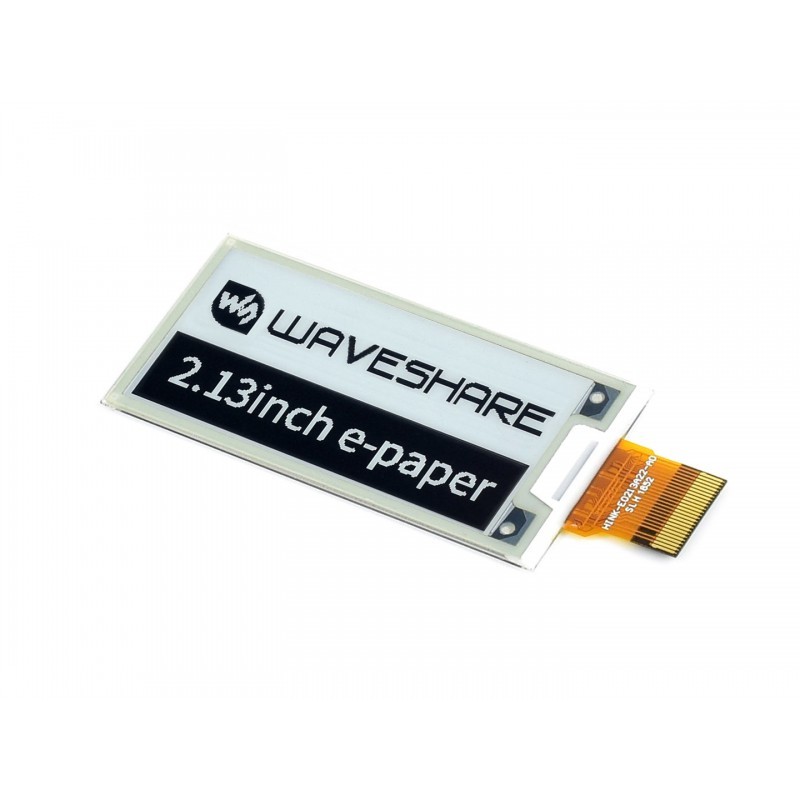

Display e-Paper 2.13' 250x122

: LCD01091
8,90 €
preço com IVA incluído

Display E-Ink, de 2,13 polegadas, resolução de 250x122, com controlador embutido, comunicando via SPI, suporta atualização parcial.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

This is an E-Ink raw display, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 29.2mm × 59.2mm × 1.05mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 250 × 122
  • Display color: black, white
  • Grey level: 2
  • Partial refresh time: 0.3s
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Development Resources

Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT



Weight: 0.003 kg

Note: This is a raw display, you may also want to buy the assembled variant for easy testing and comparing: 2.13inch e-Paper HAT

  1. 2.13inch e-Paper x1
