Sensor de Água/Chuva – Grove
  • Sensor de Água/Chuva – Grove
  • Sensor de Água/Chuva – Grove
  • Sensor de Água/Chuva – Grove

Sensor de Água/Chuva – Grove

:SEN06013
3,80 €
preço com IVA incluído

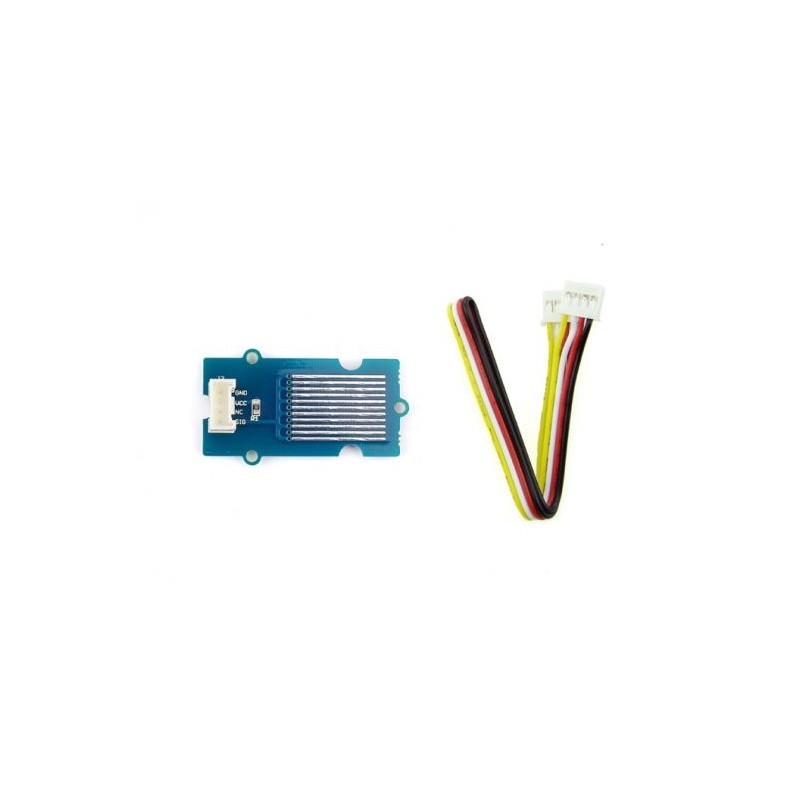

Este módulo sensor de água é parte do sistema Twig. Este sensor funciona por ter uma série de traços condutores expostos ligado à terra e entrelaçados entre eles estão os traços de ligação do sensor.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.





The sensor traces have a weak pull-up resistor of 1 MΩ. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace. Believe it or not this circuit will work with the digital I/O pins of your Arduino or you can use it with the analog pins to detect the amount of water induced contact between the grounded and sensor traces.

Features

  • Grove compatible interface
  • Low power consumption
  • 2.0cm x 2.0cm twig module
  • High sensitivity



Applications Ideas

  • Rainfall detecting
  • Liquid leakage
  • Tank overflow detector



For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Documents


Please visit our wiki page for more info about this product.



Github - Grove_Water_Sensor

SEN06013
