Grove - Water Sensor

:SEN06013
€3.80
Tax included

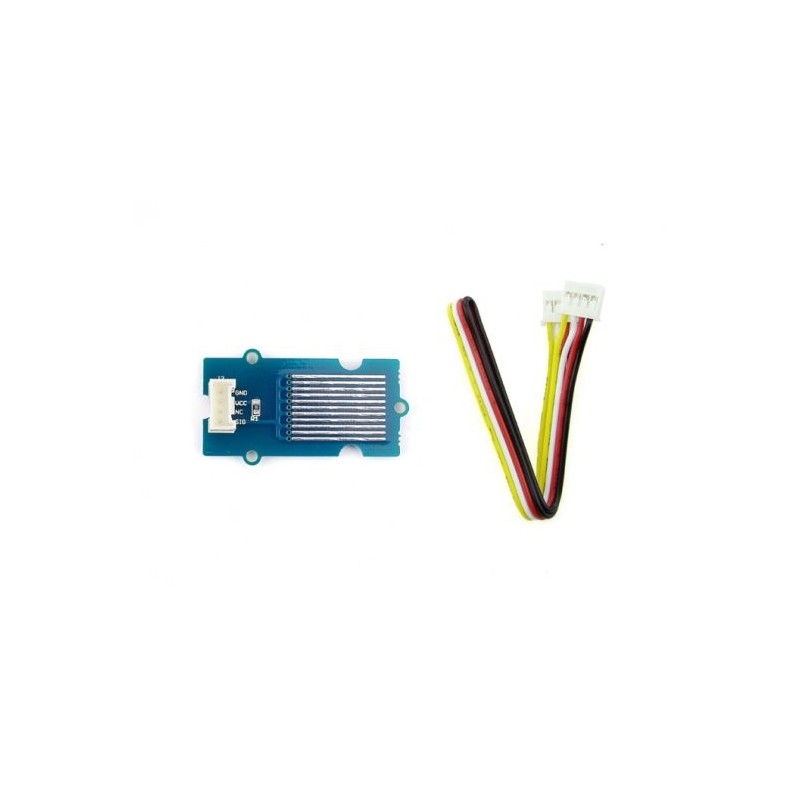

This water sensor module is part of the Twig system. This sensor works by having a series of exposed traces connected to ground and interlaced between the grounded traces are the sens traces.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.





The sensor traces have a weak pull-up resistor of 1 MΩ. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace. Believe it or not this circuit will work with the digital I/O pins of your Arduino or you can use it with the analog pins to detect the amount of water induced contact between the grounded and sensor traces.

Features

  • Grove compatible interface
  • Low power consumption
  • 2.0cm x 2.0cm twig module
  • High sensitivity



Applications Ideas

  • Rainfall detecting
  • Liquid leakage
  • Tank overflow detector



For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Documents


Please visit our wiki page for more info about this product.



Github - Grove_Water_Sensor

SEN06013
