PiTFT Plus 480x320 3.5" TFT+Touchscreen para Raspberry Pi

:LCD01076
42,68 €
preço com IVA incluído

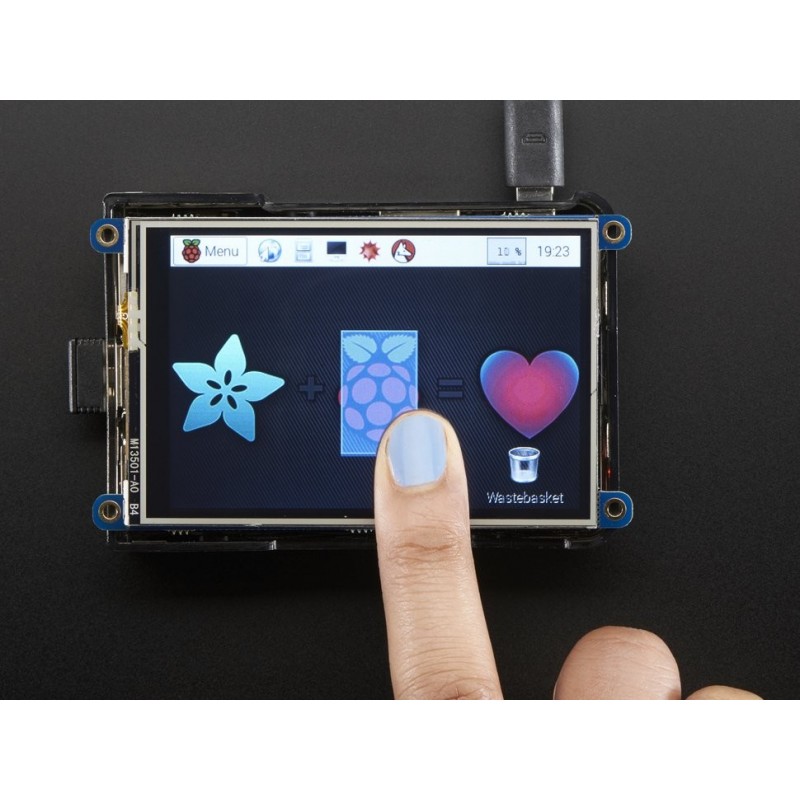

Este TFT possui um display de 3,5" com pixeis de cor de 16 bits e um sensor de toque resistivo. É projetado especificamente para trabalhar com o novo conector 2x20 da Raspberry Pi

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

This PiTFT 3.5" is designed to fit nicely onto the Raspberry Pi Zero, Pi 3, Pi 2 or Model A+ / B+ (any Pi with a 2x20 connector). Not for use with an old Pi 1 with 2x13 connector.

The display uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. GPIO #18 can be used to PWM dim the backlight if you like. All other GPIO are unused. There's a 2x13 'classic Pi' connection GPIO header on the bottom, you can connect a 26-pin Pi GPIO cable to it to use any of the other pins as you like. The other GPIO are broken out into solder pads at the bottom, in case you want to use more of the GPIO.

Best of all, it comes fully assembledand ready to plug into your Pi! You can use this as a display for running the X interface, or pygame. You can also have an HDMI display seperately connected. There's four mounting ears that can be used to attach the display & Pi to a bezel, or snap them off with pliers (they're perforated) for a slick exactly-the-same-size-as-a-Pi look.

Datasheet for the controller chip

Last raspberry files to use with tft display

Youtube tutorial:
