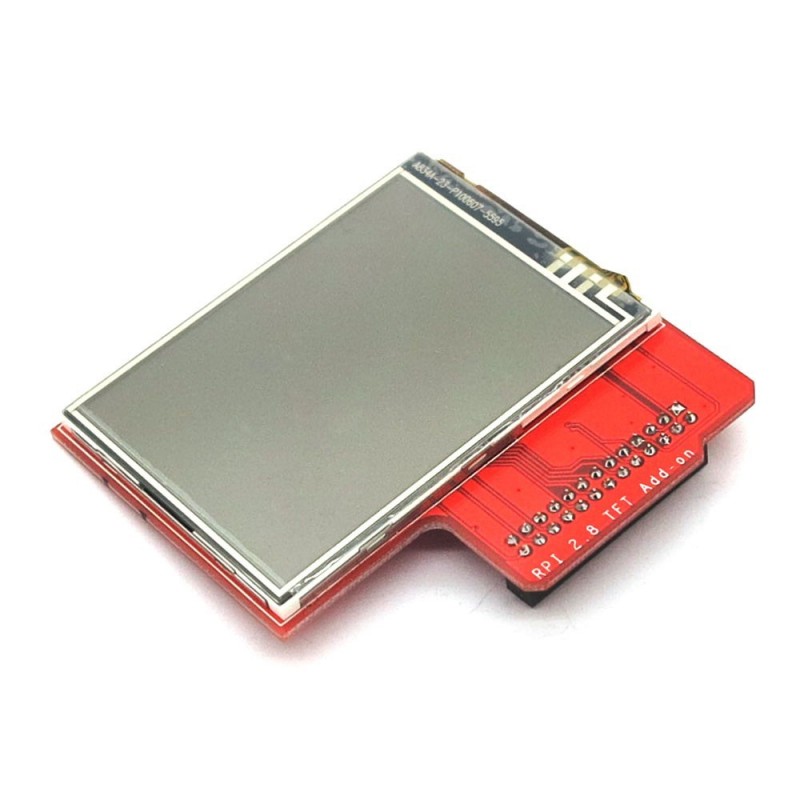

Raspberry Pi 2.8 TFT Add-on

: LCD01029
25,90 €
preço com IVA incluído

Raspberry Pi 2.8 TFT Add-on é personalizado para Raspberry Pi com base no TFT de 2.8. O TFT é controlado com base num barramento de dados de 8 bits e um de  4-bit o ILI9323DS para controlar a interface de barramento, que pode exibir 263K cores.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Overview

Raspberry PI 2.8 TFT Add-on is customized for Raspberry Pi based on 2.8 TFT LCD display module. The screen is driven based on an 8-bit data bus and a 4-bit ILI9323DS to control bus interface, which can display 65K colors. Module controls contents to be displayed via GPIO on Raspberry Pi. With touch function, it can be used to display the desktop of Raspberry Pi and realize clicking, touch and feedback.

Compatibility with Raspberry Pi B+

This Add-on is blocked by the Ethernet port, but it doesn't affect the compatibility of the Raspberry Pi B+ interface.

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Datasheet

Schematic

Module Type No
Weight 100.00g
Model IM140115001
Board Size 72.0mm X 71mm X 1.6mm
Version 1.1
Operation Level Digital 3.3V
Power Supply External 5V
LCD01029
