DYNAMIXEL AX-12
  • DYNAMIXEL AX-12

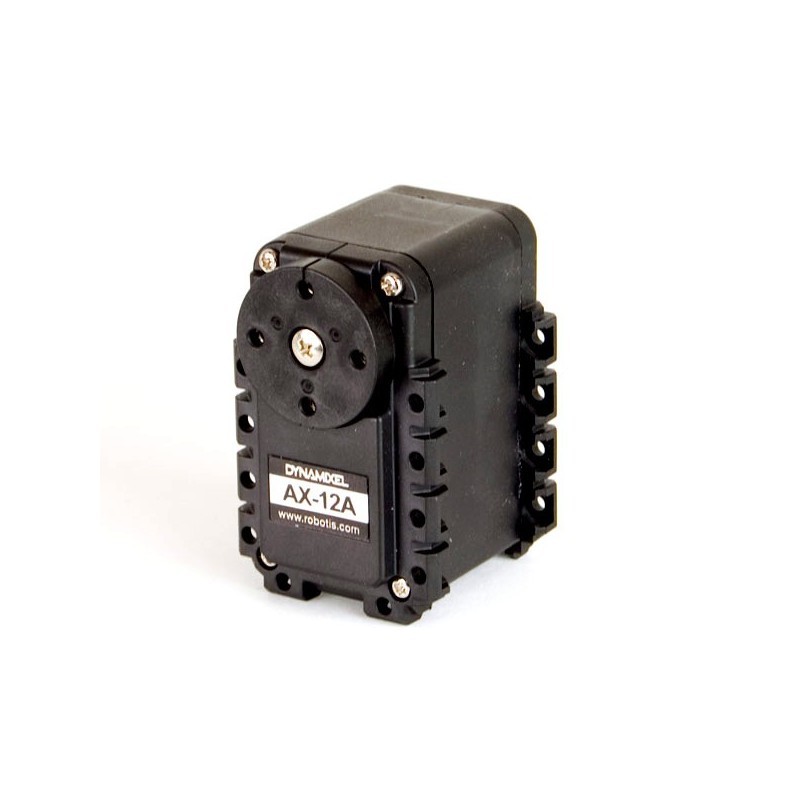

DYNAMIXEL AX-12A

:MOT03027
44,47 €
preço com IVA incluído

AX-12A is a new version of the AX-12+ with the same performance, but more advanced external design. It is 100% compatible with AX-12+ at 1:1 scale, with the same control method.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



** CAUTION

Gear design was changed to improve durability. The AX-12A Gear Set (SKU No. 902-0087-001) will not be compatible with former AX-12+ Gear Set (SKU No. 903-0087-000).



** INCLUDES

Description

Qty

DYNAMIXEL

AX-12A

1

HORN

B01-HORN

1/assembled

FRAME

FP04-F2

1

FP04-F3

1

BPF-WA/BU Set

1

CABLE

3P Cable 200mm

1

BOLT/NUT

Bolt PHS M2*6

16pcs

Bolt PHS M3*10

1

N1 NUT M2

16pcs



** H/W SPECS

Product name

DYNAMIXEL AX-12A

Weight

54.6g

Dimension

32mm x 50mm x 40mm

Gear Ratio

254 : 1

Operation Voltage (V)

12

Stall Torque (N.m)

1.5 (12V)

Stall Current (A)

1.5

No Load Speed (RPM)

59 (12V)

Motor

Cored Motor

Minimum Control Angle

about 0.29 degrees x 1,024

Operating Range

Actuator Mode : 300 degrees

Wheel Mode : Endless turn

Operating Voltage

9~12V (Recommended voltage : 11.1V)

Max. Current

900mA

Standby Current

50mA

Operating Temperature

-5C ~ 70C

Command Signal

Digital Packet

Protocol

Half duplex Asynchronous Serial Communication (8bit,1stop,No Parity)

Link (physical)

TTL Level Multi Drop (daisy chain type Connector)

ID

254 ID (0~253)

Baud Rate

7843bps ~ 1 Mbps

Feedback Functions

Position, Temperature, Load, Input Voltage, etc.

Material

Case : Engineering Plastic

Gear : Engineering Plastic

Position Sensor

Potentiometer

Default Setting

ID #1 (1 Mbps)



**Click : Compatibility Chart



**CONTROLLING ENVIRONMENT

- Software for Dynamixel control : ROBOPLUS - Download

- C/C++, C#, Labview, MATLAB, Visual Basic et. : Library – Download



**Click here to download 2D and 3D drawings

**Click here to go to e-Manual.
