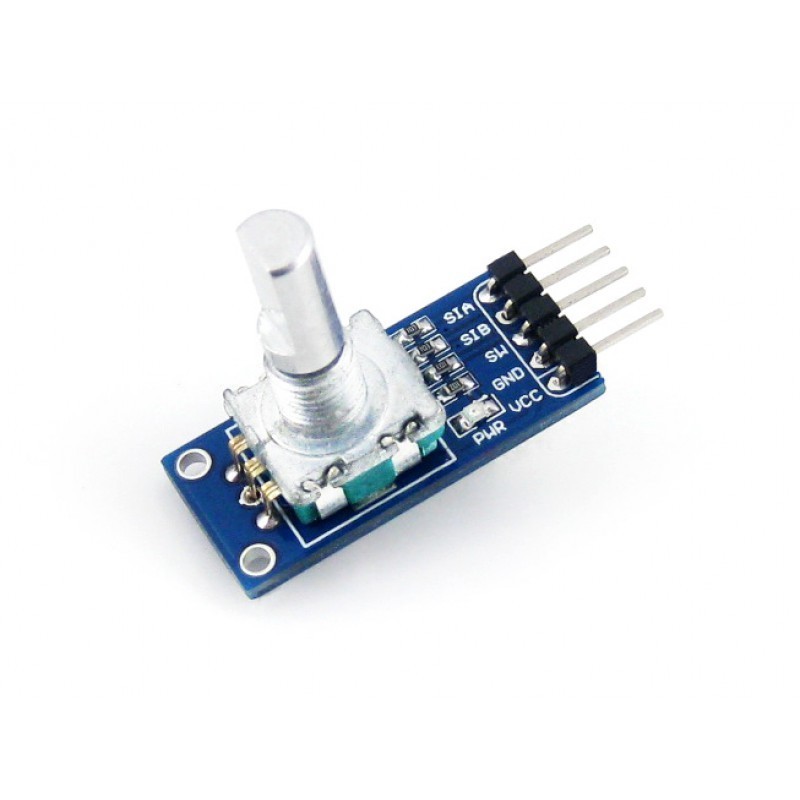

Sensor de Rotação - WS

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

• Detects clockwise/anti-clockwise rotations: degrees and laps

Specifications

• Pulses per lap: 15
• Power: 3.0V ~ 5.3V
• Dimension: 32.1mm * 15.4mm
• Mounting holes size: 2.0mm

Applications

• Positioning in Industrial Controls

How to Use

In the case of working with a MCU:

• VCC ↔ 3.0V ~ 5.3V
• GND ↔ power supply ground
• SW ↔ MCU.IO (encoder button status)
• SIB ↔ MCU.IO (output status)
• SIA ↔ MCU.IO (output status)

Examples

Connect the SIA, SIB, SW pins to the CH0, CH1, CH2 of logic analyser respectively, then power the module.

When clockwise rotating the encoder, the output waveform looks like:

When anti-clockwise rotating the encoder, the output waveform looks like:

When pressing the encoder button, the output waveform looks like:

Photos

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/Rotation_Sensor

Package Content

Weight: 0.011 kg

1. Rotation Sensor x1
2. 5-pin custom connector jumper wire x1
