Matriz LED 8x8 c/ Driver MAX7219

:LCD03018
4,50 €
preço com IVA incluído

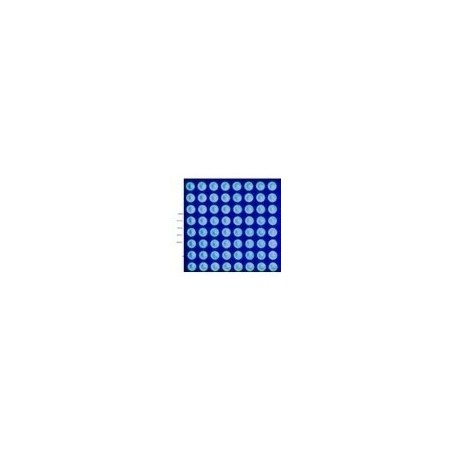

Com esta matriz de LEDs 8x8 (32x32mm) poderá criar animações ou até mesmo juntar várias e passar mensagens, acrescentando brilho e cor ao seu projecto com Arduino. Disponível em 3 cores diferentes (Vermelho, Verde e Azul), poderá interligar várias matrizes em série e controlá-las com apenas 3 linhas de I/O do Arduino.

Na base desta matriz está o chip MAX7219 que recebe as instruções do microcontrolador e faz o drive dos 64 LEDs que a compõem.

No link seguinte encontra um tutorial com todos os passos a seguir para interligar este tipo de matriz de LEDs com o seu Arduino:
https://www.makerguides.com/max7219-led-dot-matrix-display-arduino-tutorial/

Seleccione a cor do produto:
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction:

This matrix as one MAX7219 chip with with serial input/output common-cathode display drivers that interface microprocessors (µPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs.

A convenient 4-wire serial interface connects to all common µPs. Individual digits may be addressed and updated without rewriting the entire display.

The devices include a 150µA low-power shutdown mode, analog and digital brightness control, a scan-limit register that allows the user to display from 1 to 8 digits, and a test mode that forces all LEDs on.

This Matrix requires only three IO ports from the microcontroller to drive the matrix with no flicker!

Parameters:

  • 10MHz Serial Interface
  • Individual LED Segment Control
  • Decode/No-Decode Digit Selection
  • 150µA Low-Power Shutdown (Data Retained)
  • Digital and Analog Brightness Control
  • Display Blanked on Power-Up
  • Drive Common-Cathode LED Display
  • 5V working voltage
  • A single MAX7219 chip can drive a total of 8x8 dot matrix
  • Size (4xMatrix): 3.2 cm*3.2 cm *1.3 cm (L*W*H)
  • With fixing screw holes (3mm diameter)

Wiring instructions:

1. The left side of the module as an input port, an output port on the right.

2. You can use it as a single module matrix, in this case simply connect input port to CPU

3. Cascading multiple modules, CPU -> 1st module input and output 1st module -> 2nd module input... and so on

4. 8051 Microcontroller connection example:

  • VCC → 5V
  • GND → GND
  • DIN → P2.2
  • CS → P2.1
  • CLK → P2.0

5. Arduino conection example:

Arduino-Connection

Shipping list:

1. 1x MAX7219 dot matrix module

2. 2x 5 Pin Header (for soldering)
