MÓDULO SEGUIDOR DE LINHA TCRT5000 COM SAÍDA ANALÓGICA E DIGITAL

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

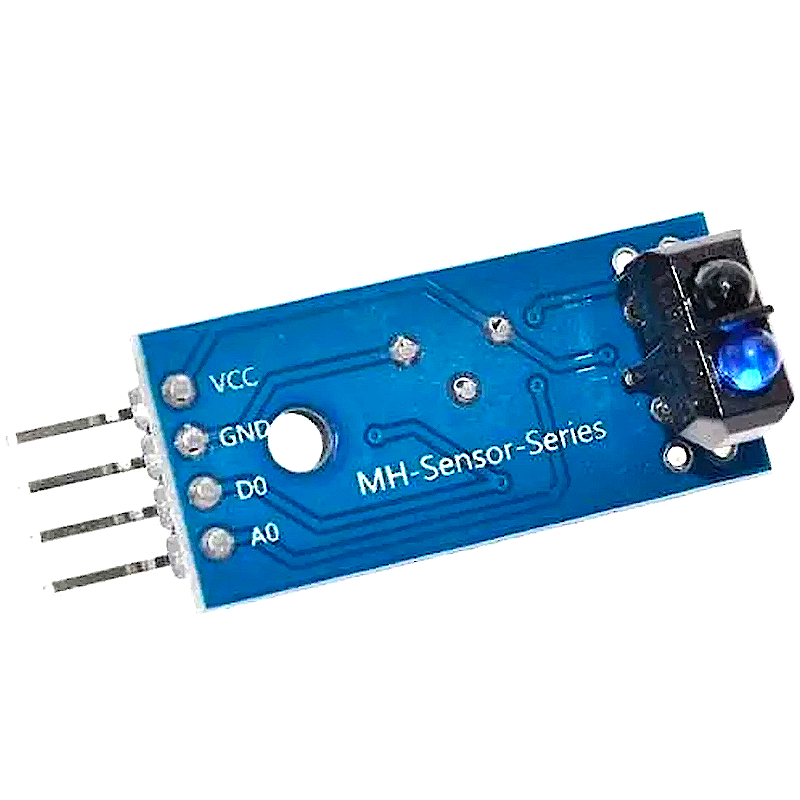

TCRT5000 Infrared Reflective Sensor Module is often used in line following robots, object sorting Robots because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm and the central point is about 2.5mm.

There is also an onboard potentiometer to adjust the sensitivity. The infrared diode will be emitting the infrared continually when the module is powered ON, when the emitted infrared light has not been reflected or the strength is not big enough, the receiver diode will in the off state and output pin i.e. DO will be LOW.

Applications:

1. Meter pulse data sampling
2. Fax paper shredders detection
3. Obstacle detection
4. Black and white line detection

Notes:

1. Designed with the reflected infrared sensor, indicator light.
2. Built in a potentiometer for sensitivity control.
3. On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L
4. Onboard signal output instructions, the output is the highly effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection & middot
5. Signal detection sensitivity can be adjust
6. A fixed bolt hole, convenient installation.
7. Operating voltage 3.3V - 5V
8. PCB size 3.2cm x 1.4cm

Ex code:

// for Arduino microcontroller
const int digital_pin = 7;
const int analog_pin = A0;

// for ESP8266 microcontroller
//const int digital_pin = D7;
//const int analog_pin = A0;

// for ESP32 microcontroller
//const int digital_pin = 4;
//const int analog_pin = 0;

void setup(){
  Serial.begin(9600);
  pinMode(digital_pin,INPUT);
}

void loop(){
  Serial.print("Analog Reading=");
  Serial.print(analogRead(analog_pin));
  Serial.print("\t Digital Reading=");
  Serial.println(digitalRead(digital_pin));
  delay(1000);
}
