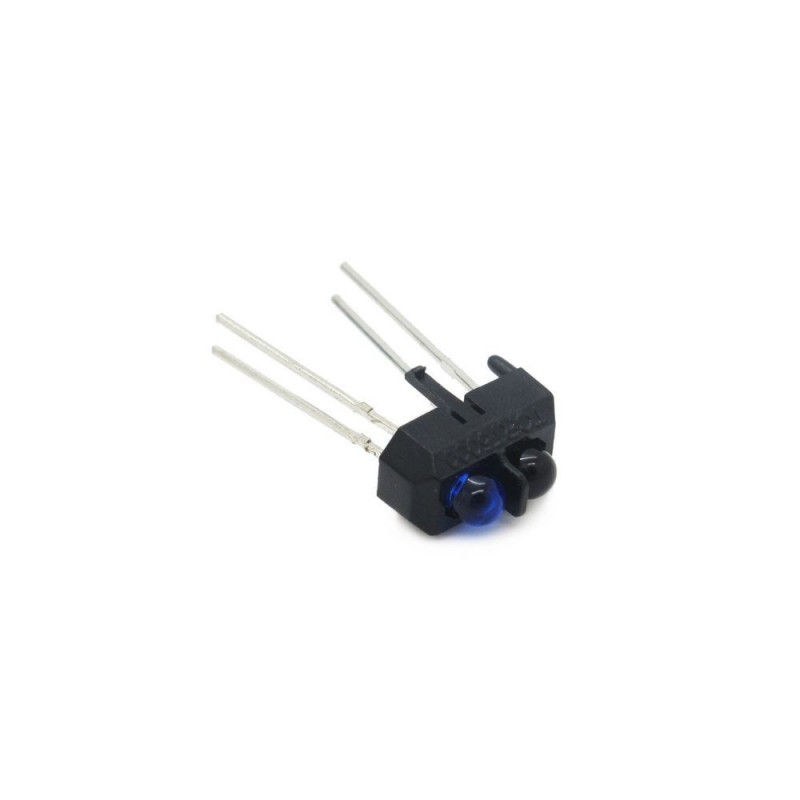

Sensor Óptico Reflectivo TCRT5000
  • Sensor Óptico Reflectivo TCRT5000
  • Sensor Óptico Reflectivo TCRT5000
  • Sensor Óptico Reflectivo TCRT5000

Sensor Óptico Reflectivo TCRT5000

:SEN11002
1,50 €
1,00 € Poupe 0,50 €
preço com IVA incluído

O TCRT5000 (L) tem uma construção compacta onde a fonte emissora de luz e o detector estão dispostos na mesma direcção para detectar a presença de um objecto utilizando o feixe de infravermelhos a partir do objecto reflector. O detector é constituído por um fototransistor.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Overview



The TCRT5000(L) has a compact construction where the emitting-light source and the detector are arranged in the same direction to sense the presence of an object by using the reflective IR beam from the object. The detector consists of a phototransistor.



Features



  • Snap-in construction for PCB mounting

  • Package height : 7mm

  • Plastic polycarbonate housing construction which prevents crosstalk

  • L = long leads

  • Current Tranfer Ratio (CTR) of typical 10%



Application



  • Psition sensor for shaft encoder

  • Detection of reflective material such as paper, IBM cards, magnetic tapes etc.

  • Limit switch for mechanical motions in VCR

  • General purpose - wherever the space is limited



Datasheet

SEN11002
