Sensor de Linha 5 x TCRT5000 + Obstáculos

:SEN03045
7,50 €
preço com IVA incluído

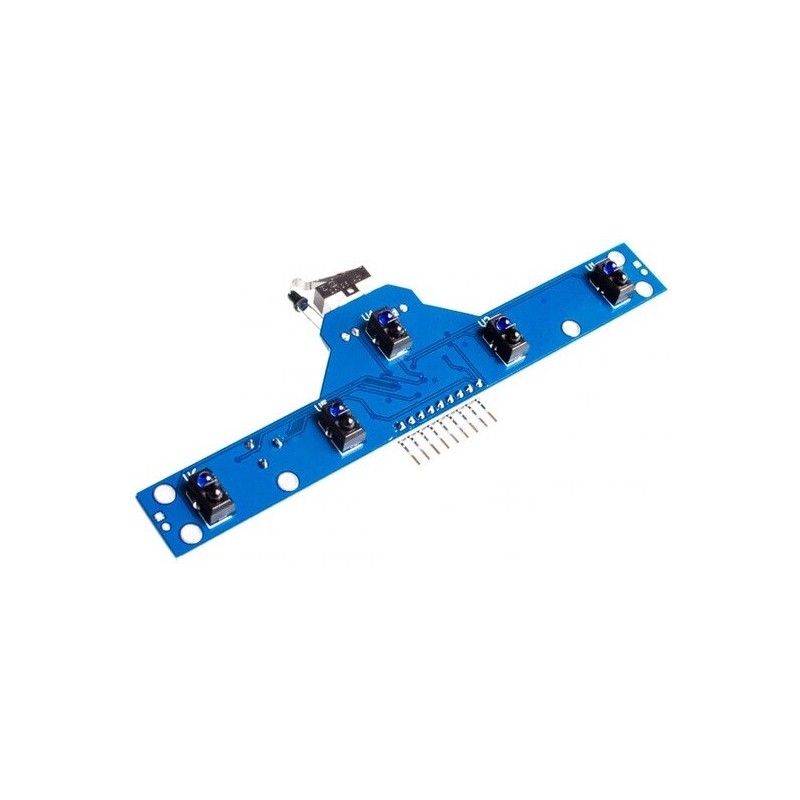

Este sensor seguidor de linha com 5 sensores TCRT5000 permite destinguir uma linha preta num fundo branco em 5 pontos e assim dar informação ao seu robô para a seguir.

Disponibiliza ainda dois sensores de obstáculos, um por infravermelhos e outro por interruptor fim-de-curso.

A informação dos vários sensores é  digital (nível alto ou baixo) e é compativel com 3.3V e 5V.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

5 Channel Line Tracking Sensor Module (BFD-1000) info

5 Channel Line Tracking Sensor Module (BFD-1000) is a sensor board designed for use with line follower robots. This module has been sufficient to meet the day-to-day task of tracking, but also with the infrared distance sensor and touch detection sensor, the board makes your robot design able to adapt to the situation easily.



5 Channel Line Tracking Sensor Module (BFD-1000) - General Specifications

  • 5 channel high sensitivity sensor
  • High accuracy for tracking black line.
  • Distance sensor at the front, distance can be adjusted
  • Special touch sensor design, making the robot design simple
  • Digital output signal
  • Indicator LEDs



5 Channel Line Tracking Sensor Module (BFD-1000) - Technical Specifications

  • Detection distance: 0 - 4cm (black and white line sensors), 0 - 5cm (adjustable distance detection)
  • Input voltage: 3.0V - 5.5V
  • Output form: digital output (high and low level)
SEN03045
