T-Journal ESP32 com Camera OV2640 2M Lente olho-de-peixe, Display 0.91, driver CH9102 - LILYGO® Q162

: PCO05133
26,70 €
preço com IVA incluído

Com este módulo será possível desenvolver projetos WiFi / bluetooth com acesso remoto a imagens.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



More info and updated documentation on LilyGo product page (Fish-eye Lens [Q162])



Chipset ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor

- FLASH QSPI flash/SRAM, up to 4 x 16 MB

- SRAM 520 kB SRAM

- KEY reset，IO32

- Dispaly 0.91 SSD1306

- Power indicator lamp red

- Camera OV2640  2Megapixel

- Steering engine analog servo

- On-board clock 40MHz crystal oscillator

                                              Specifications

Working voltage  2.3V-3.6V
Working current  about 160mA
Working temperature range  -40℃ ~ +85℃
Power Supply USB 5V/1A
Charging current 1A
Battery 3.7V lithium battery
Battery connector Jst 2pin 1.25mm

Technology Support [Github]

If you need technical support please check the link to find more details.

Camera Series

lilygo_e32f8d3b-424c-4090-bdf7-e4ec72ceb175_600x600.jpg?v=1666335258
Size
lilygo-cam_1_600x600.png?v=1666338519
Pin Diagram
https://www.lilygo.cc/cdn/shop/products/T-Journal-lilygo_1.jpg
Details
lilygo-cam_2_600x600.jpg?v=1666338707
T-Journal-lilygo_14_600x600.jpg?v=1666338723
lilygo3_27710697-5808-44d7-aa3e-f8e6886e166a_600x600.jpg?v=1666338586

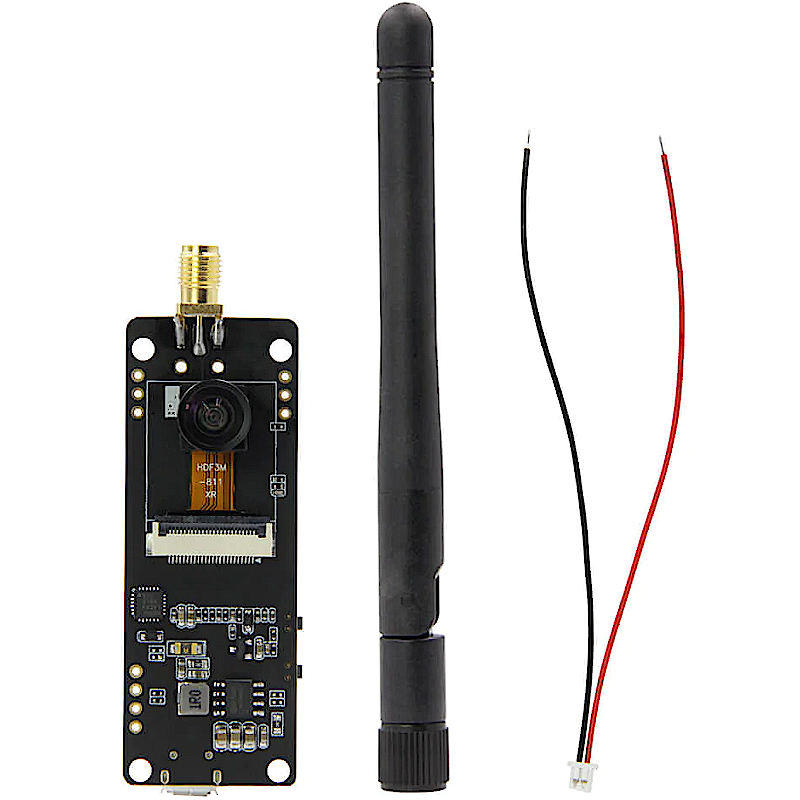

1 X T-Journal ( Fish-eye Lens)

1 X Wi-Fi  Antenna

1 X Power Cable

lilygo-cam_1_600x600.jpg?v=1666338673

PCO05133
