T-Journal ESP32 with OV2640 2MB Cam with Fish-eye Lens, Display 0.91, driver CH9102 - LILYGO® Q162

:PCO05133
€26.70
Tax included

With this module it will be possible to develop WiFi / bluetooth projects with remote access to images.

The TTGO T-Journal is a ESP32 Camera Development Board with an OV2640 camera, an antenna, an I2C SSD1306 0.91 inch OLED display, some exposed GPIOs, and a micro-USB interface that makes it easy and quick to upload code to the board.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (Fish-eye Lens [Q162])



Chipset ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor

- FLASH QSPI flash/SRAM, up to 4 x 16 MB

- SRAM 520 kB SRAM

- KEY reset，IO32

- Dispaly 0.91 SSD1306

- Power indicator lamp red

- Camera OV2640  2Megapixel

- Steering engine analog servo

- On-board clock 40MHz crystal oscillator

                                              Specifications

Working voltage  2.3V-3.6V
Working current  about 160mA
Working temperature range  -40℃ ~ +85℃
Power Supply USB 5V/1A
Charging current 1A
Battery 3.7V lithium battery
Battery connector Jst 2pin 1.25mm

Technology Support [Github]

If you need technical support please check the link to find more details.

Camera Series

lilygo_e32f8d3b-424c-4090-bdf7-e4ec72ceb175_600x600.jpg?v=1666335258
Size
lilygo-cam_1_600x600.png?v=1666338519
Pin Diagram
https://www.lilygo.cc/cdn/shop/products/T-Journal-lilygo_1.jpg
Details
lilygo-cam_2_600x600.jpg?v=1666338707
T-Journal-lilygo_14_600x600.jpg?v=1666338723
lilygo3_27710697-5808-44d7-aa3e-f8e6886e166a_600x600.jpg?v=1666338586

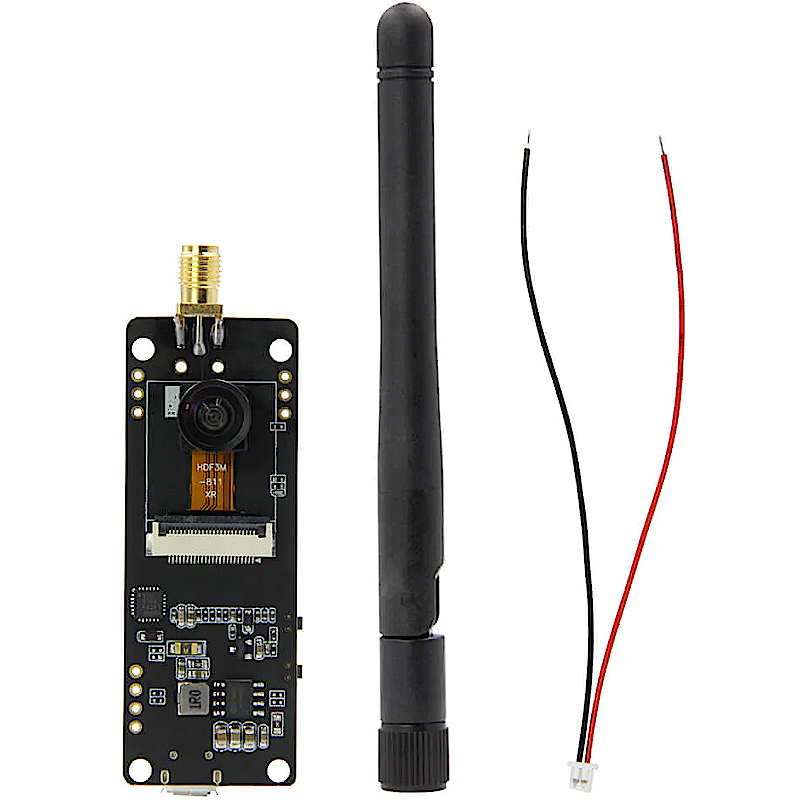

1 X T-Journal ( Fish-eye Lens)

1 X Wi-Fi  Antenna

1 X Power Cable

lilygo-cam_1_600x600.jpg?v=1666338673
