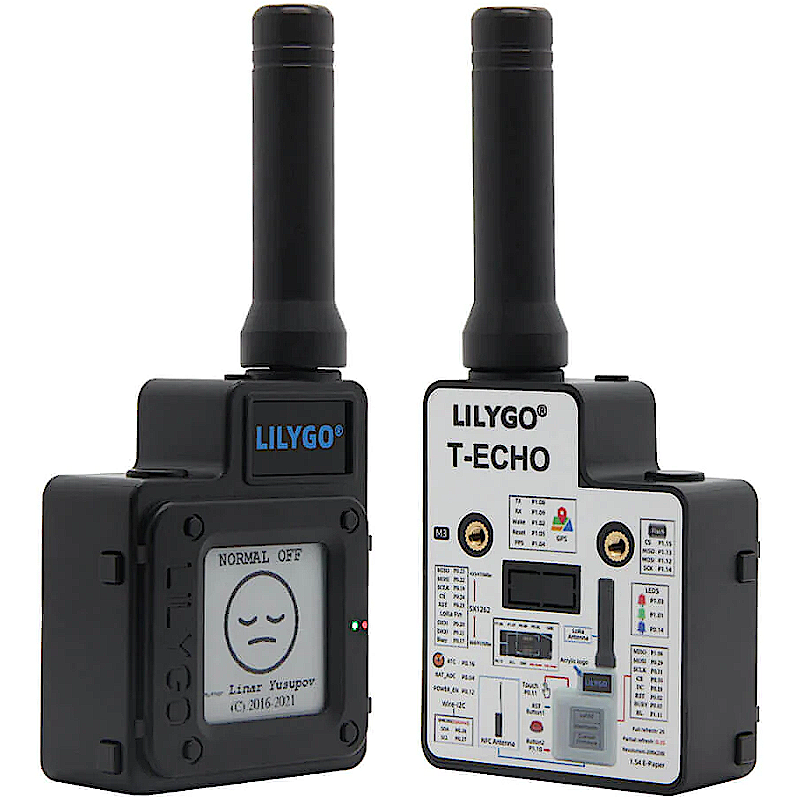

T-Echo Meshtastic 868MHz NRF52840, LoRa SX1262, com BME280 e bateria 850mA, caixa ABS preta - LILYGO® K183

: PCO05130
104,90 €
preço com IVA incluído

LILYGO®TTGO T-Echo é uma versão evoluída do LILYGO T-BEAM. No início do design, a opção mais importante foi a adaptação ao Meshtastic. portanto, o Bluetooth e o baixo consumo de energia foram as metas consideradas no projeto, e o NRF52840 Advanced Bluetooth 5 foi selecionado como thread e SoC multiprotocolo Zigbee. A função LORA continua com o módulo funcional da versão LILYGO SX1262 do T-BEAM.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



More info and updated documentation on LilyGo product page (T-Echo Meshtastic [868MHz])



LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 433/868/915MHz NRF52840 1.54 E-Paper GPS RTC NFC BME280 for Arduino

Pick a different color of shell for your T-Echo：T-Echo shell

Specification

MCU NRF52840
FLASH 2MB
RAM 2MB
Bus Interfaces UART, SPI, TWI, PDM, 12S, QSPI
Wireless Connectivity Bluetooth 5, Thread,
Bluetooth Mesh, ANT, 802.15.4, Zigbee
With/Without BME280 temperature pressure sensor
SX1262 LoRa Transceiver  Long Range, Low Power
Frequency coverage 868Mhz
Enclosure material  ABS
Version Normal version / BME280 version
Battry Capacity 850mAh


1.54-inch SPI E-Paper Display

Grey level 2
Resolution 200x200
 Full refresh time 2S


L76K Multi-System Positioning GNSS module

Support System GPS, GLONASS, BeiDou, QZSS
Support Function

 LNA, SAW Filter, AGNSS, 1PPS
Improved receiving and anti-interference attributes



LILYGO® TTGO Meshtastic T-Echo Introduce：

LILYGO®TTGO T-Echo is a version evolved from LILYGO T-BEAM. At the beginning of the design, more consideration was to adapting to Meshtastic.
so Bluetooth and low-power consumption were considered when designing, and NRF52840 Advanced  Bluetooth 5 was selected thread and Zigbee multiprotocol SoC.
The LORA function continues T-BEAM's LILYGO SX1262 version functional module.

PRODUCT-INTRODUCTION_41bbb092-7127-4901-81ad-7de8b081aff4_480x480.jpg?v=1658977611

T-SX1262 wireless transceiver module, using Semtech SX1262 LORA RF transceiver chip design, working in the 868MHz ISM frequency band, integrated high stability TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, receiving sensitivity -139dBm. Automatic transceiver Switching, internal transmission, and reception channel isolation, advanced LORA spread spectrum communication technology, strong anti-interference, and privacy can realize long-distance wireless data

Battery capacity: 850mAh



Technology Support [Github]

If you need technical support please check the link to find more details.

Basic Example:

https://github.com/Xinyuan-LilyGO/LilyGO-T-Echo



Meshtastic:



Application scenarios:

- DIY creation    - LoRa networking   - GPS positioning   - IOT terminal control - Stem education product

Features of the module:

Multi-satellite positioning system L76K is a support multi-satellite system (GPS, BeiDou, GLONASS, QZSS), multi-system joint positioning, and single system independent positioning, support AGNSS function, built-in low noise amplifier, and surface filter, can provide users GNSS module with fast, accurate and high-performance positioning experience.

Compared with a single GPS system, the high-precision positioning multi-satellite system greatly increases the number of visible and usable satellites, improves positioning accuracy, and can achieve stable high-precision positioning even in complex urban environments.

K142_7_600x600.jpg?v=1660377911

It supports the AGNSS function, which can greatly Reduce the time for the first positioning, built-in low-noise amplifier, can achieve high sensitivity, high-precision positioning, and fast signal capture and tracking, even under weak signal conditions can also ensure a good positioning performance, built-in surface acoustic filter, can greatly The anti-interference ability of the module is enhanced, and the active antenna detection circuit and protection circuit are integrated inside to protect the module and the active antenna from damage.

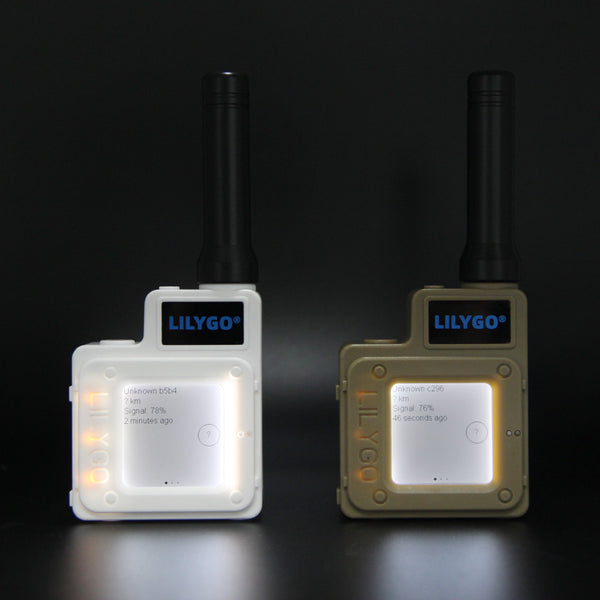

The display uses a 1.54-inch electronic paper display with front light, 200x200 resolution 1.54 front LED E-paper, and it can be used in a dark environment.

reference2_230b6cfe-0a8e-4fcf-bc14-96651a3fc65f_600x600.jpg?v=1658978122

product-dislay_445f6586-1b00-4b3c-b15b-d2539f68373e_600x600.jpg?v=1658978136

1. Size

size_af69b82a-9daf-425d-be02-67dc0fff4e84_600x600.jpg?v=1658978261

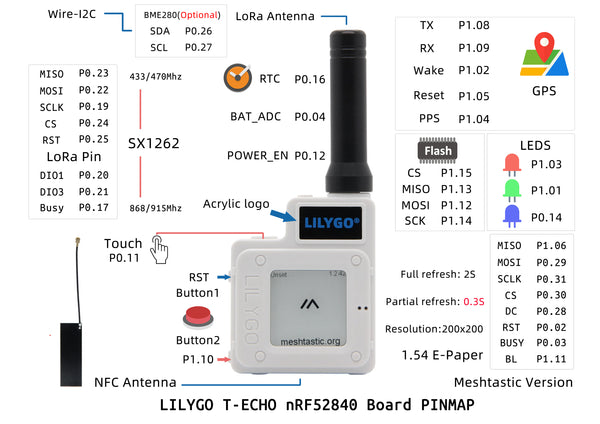

2. Pin Diagram

pin-digram_600x600.jpg?v=1658978313

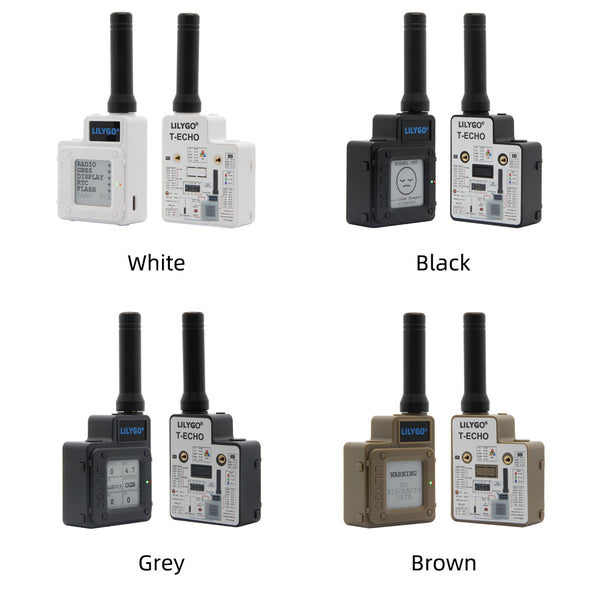

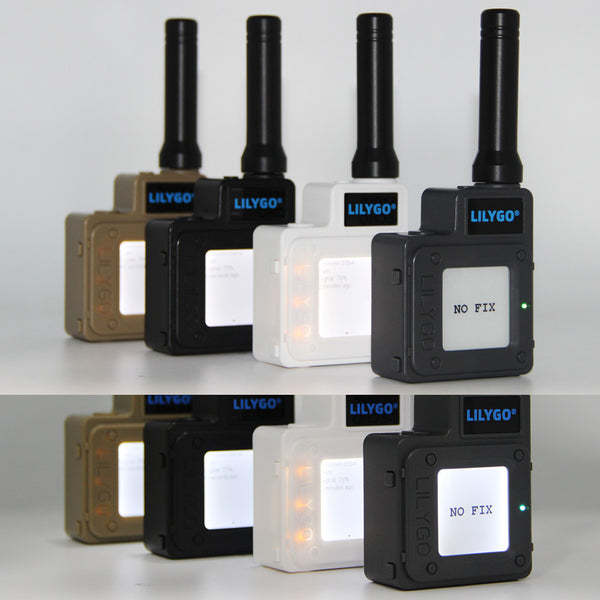

3. Appearance Details

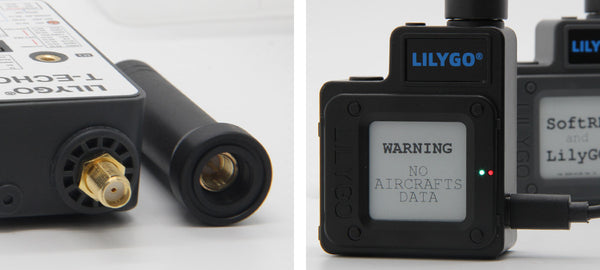

appearance-details_600x600.jpg?v=1658978441

details2_600x600.jpg?v=1658978475

details3_9fc8c735-217b-4184-b00e-542c5341ce14_600x600.jpg?v=1658978535

T-Echo 868MHz BME280 Options

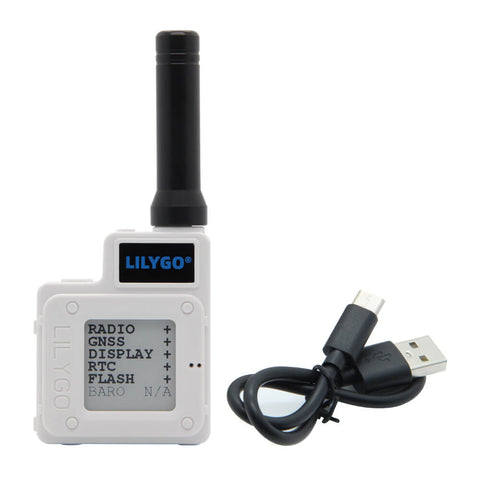

T-Echo

1 X T-ECHO Motherboard [BME280]
1 X GPS Antenna
1 X LORA 868MHz Antenna
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X 850mA Capacity Battery
1 X ABS Material Enclosure
1 X Type C USB Cable



PCO05130
