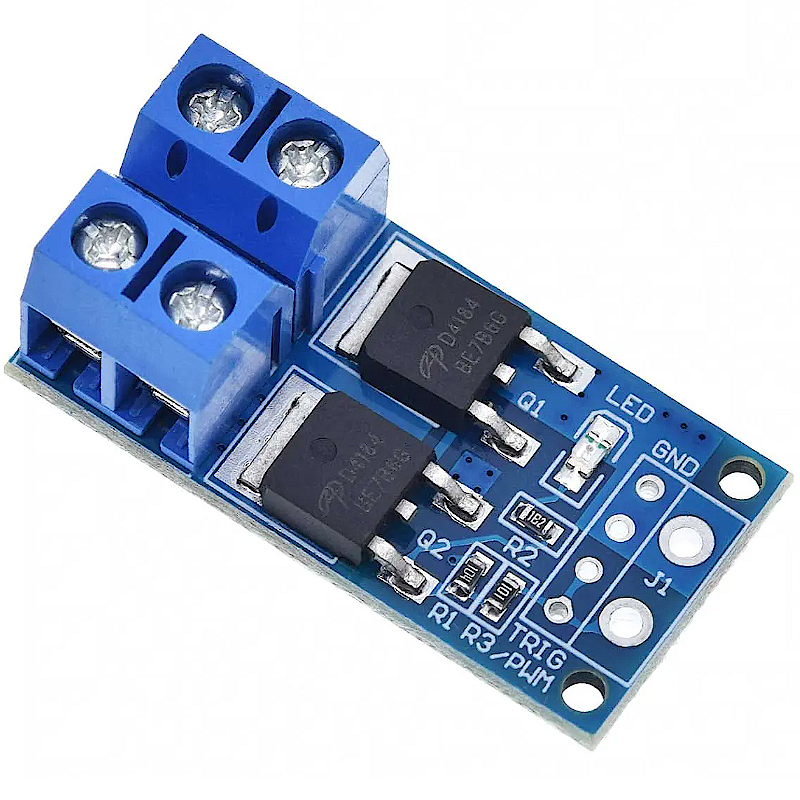

Driver Motores DC a MOSFET controlo PWM 5~36Vdc 15A 400W

:MOT01057
4,90 €
preço com IVA incluído
  • Nova saída ativa paralela dupla MOS AOD4184A, menor resistência, mais corrente, forte potência à temperatura ambiente, 15A, 400W, para atender ao maior uso do equipamento;
  • Voltagem ampla, o suporte perfeito para PWM;
  • Fácil controle da energia de equipamentos.
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Parameters:

  • Operating Voltage: DC 5V – 36V;
  • Trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
  • Output capacity: DC DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
  • Application: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness.
  • Life: Unlimited switch; Operating temperature: -40-85 ℃; size: 3.4 * 1.7 * 1.2cm
