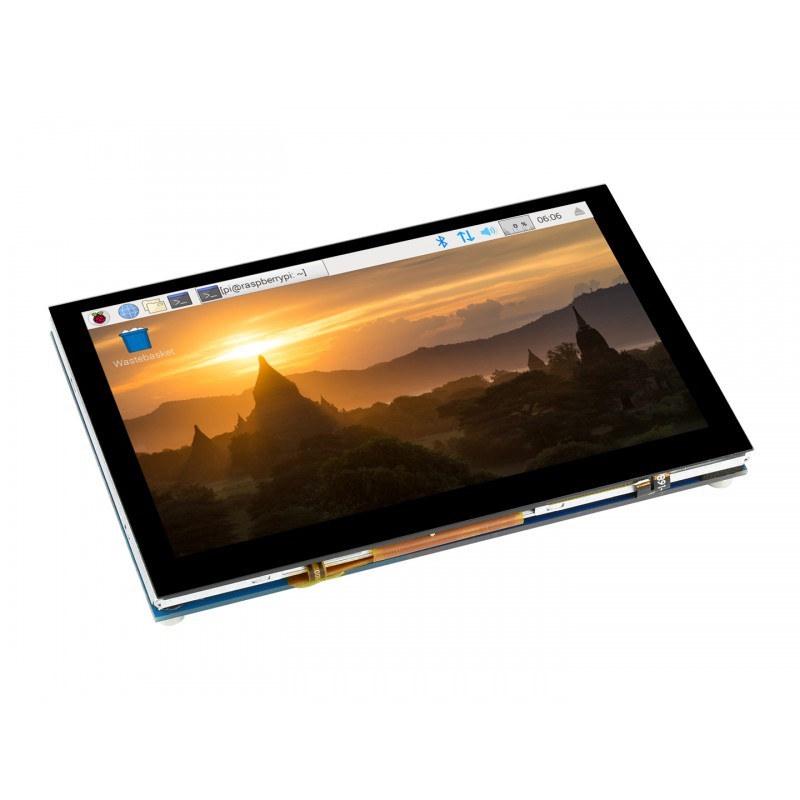

Ecrã tátil capacitivo 5'' 800x480 c/ interface DSI p/ Raspberry Pi

: LCD01135
34,88 €

Ecrã tátil capacitivo, 5'', 800x480 ideal para Raspberry Pi



Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

5" Touch Display


  • SizeDimension.png5"
  •
  • ResolutionResolution.png800×480
  •
  • Display Portmipi.pngDSI
  •
  • Power ConsumptionLow_power.pngLow Power
  • Touch TypeCapacitive_touch.pngCapacitive
  •
  • Touch PointsFive_touch.png5-Points
  •
  • Touch PortI2C.pngI2C
  •
  • Touch PanelTempered_panel.pngToughened Glass

Device & System Support



Raspberry Pi

Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+*

* CM3/3+ requires extra adapter board

Connection Examples

Working With Raspberry Pi 4


Working With Raspberry Pi 3B+


Touch Control

Touch-Screen-Top-C5.jpg Touch-Screen.jpg

1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software


Appearance And Dimensions


Resources & Services


Wiki: 5inch_DSI_LCD

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PARTNUMBER DISPLAY TOUCH AUDIO DEVICE SUPPORT
RESOLU-TION DISPLAY PORT DISPLAY PANEL VIEW ANGLE TOUCH TYPE TOUCH PORT TOUGHENED GLASS PANEL FULLY LAMINATED SPE-
AKER
SIGNAL OUTPUT PI JETSON NANO PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT Resistive SPI × × × × × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × × × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × × × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C × × × ×
4inch DPI LCD (B) 480×800 DPI IPS 170° Capacitive I2C × × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × × × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C × × × × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C × × × × ×
5inch DSI LCD 800×480 DSI TFT - Capacitive I2C × × × × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × ×
5inch HDMI LCD 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (B) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT Resistive USB × × × ×
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT Capacitive USB × ×
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB × ×
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB × × × ×
5.5inch HDMI AMOLED (with case B) 1080×1920 HDMI AMOLED 170° Capacitive USB × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × ×
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB × ×
7inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive USB
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB × ×
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB × ×
9inch 2560x1600 Monitor 2560×1600 HDMI IPS 178° Capacitive USB
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT Capacitive USB × × × ×
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB ×
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB × × × ×
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB ×
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB ×
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB × ×
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB × ×
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB ×

Have a look :
RPi LCD Comparing

PACKAGE CONTENT

Weight: 0.162 kg

  1. 5inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
  3. Screws pack x1



LCD01135
