Raspberry Pi Zero V1.3 - SC0019

: PCO01088
12,85 €

A Raspberry Pi Zero é uma variante ultra pequena da Raspberry Pi original. Medindo apenas 65 mm x 30 mm é projetada para aplicações embebidas, wearables, protótipos e qualquer outro projecto baseado em Pi que você possa imaginar, numa escala micro!

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

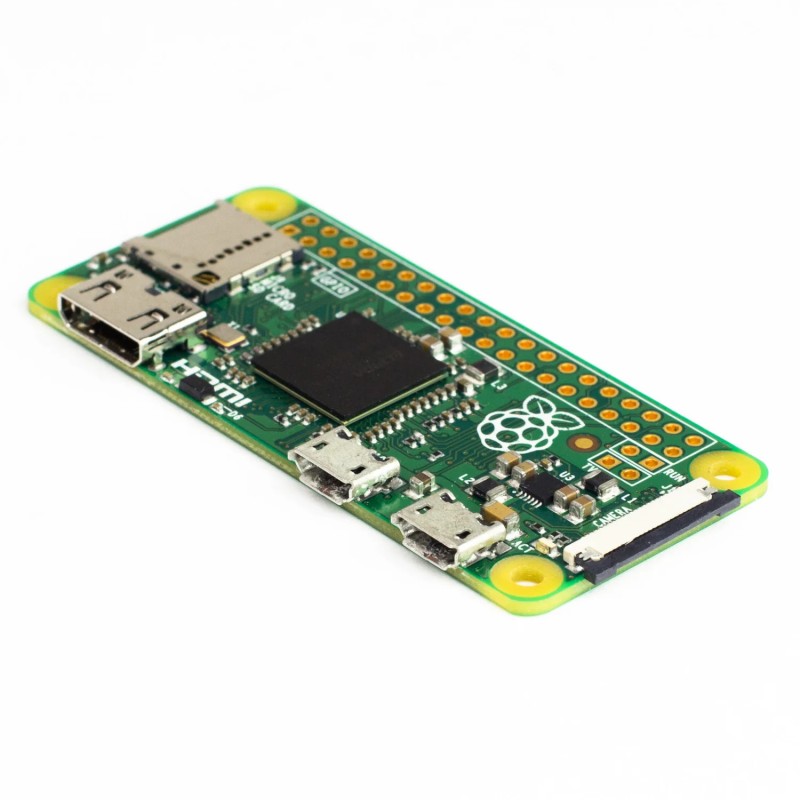

The Raspberry Pi Zero features a BCM2835 chipset, overclocked to 1Ghz with 512MB RAM, and the same 1080p video output, so there's plenty of oomph in that little board. It also features the same 40 pin GPIO layout as the Raspberry Pi 2/B+/A+, which you'll need to solder your own headers to. With it's small form factor and reduction in connectors, the Raspberry Pi Zero only uses ~ 140mA at 5V!

Unlike it's larger brothers and sisters, the Raspberry Pi Zero has an unpopulated GPIO, unpopulated composite (RCA) header and an unpopulated reset header. There's also no DSI screen port, no ethernet, no analogue audio and no full sized USB ports. Instead, the Pi Zero features a micro-USB power port, a micro USB OTG host port (for peripherals e.g. WiFi dongle), and a mini HDMI port for video.

HAT Compatibility Note: The Pi Zero is fully compatible with all HAT breakout boards, as it features the same 40 Pin GPIO as the Raspberry Pi 2/B+/A+

Raspberry Pi Zero Features:

  • BCM2835 chipset, Overclocked to 1Ghz
  • 512MB RAM
  • Tiny Form Factor: 65mm x 30mm x 5mm
  • Fully HAT compatible
  • 40pin GPIO (Unpopulated)
  • Stream and watch Hi-definition video output at 1080P
  • Micro SD Slot for OS
  • Tiny Current Draw ~ 140mA at 5V!
  • Mini-HDMI for Video
  • Micro-USB OTG Host for Data
  • Micro-USB for Power
  • Micro-CSI Camera Port

Downloads

Raspberry Pi Zero Dimension Sheet
