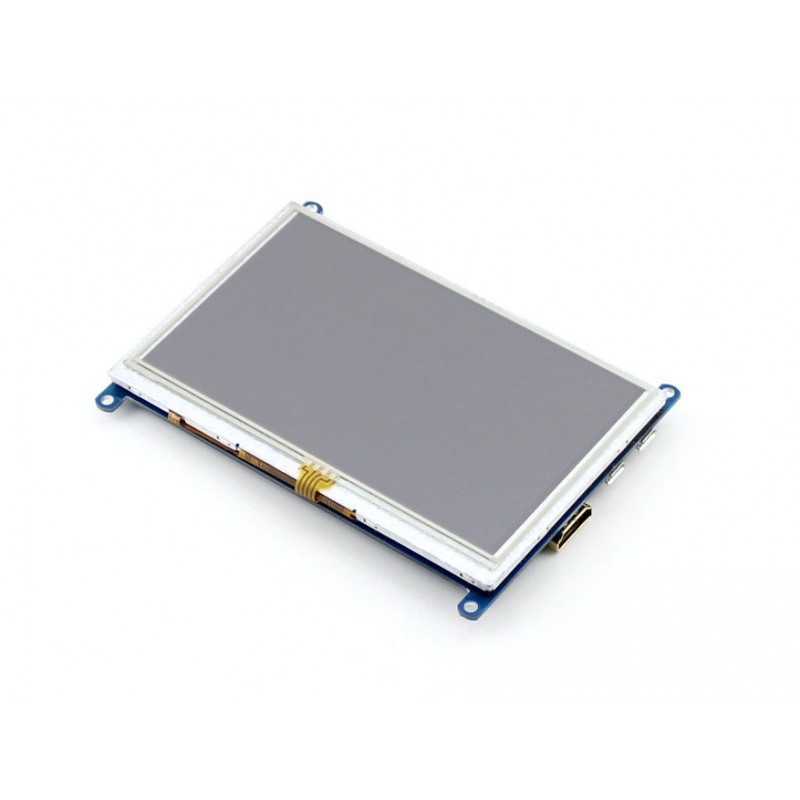

Ecrã tátil resistivo 5'' HDMI LCD 800x480
  •  Ecrã tátil resistivo 5'' HDMI LCD 800x480
  •  Ecrã tátil resistivo 5'' HDMI LCD 800x480
  •  Ecrã tátil resistivo 5'' HDMI LCD 800x480
  •  Ecrã tátil resistivo 5'' HDMI LCD 800x480
  •  Ecrã tátil resistivo 5'' HDMI LCD 800x480
  •  Ecrã tátil resistivo 5'' HDMI LCD 800x480
  •  Ecrã tátil resistivo 5'' HDMI LCD 800x480

Ecrã tátil resistivo 5'' HDMI LCD 800x480

: LCD01038
40,24 €
Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.




Features

  • 800×480 high resolution, touch control
  • Supports Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image
  • Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
  • Supports BB Black, comes with Angstrom image
  • Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen (touch function is unavailable in this case)
  • HDMI interface for displaying, USB interface for touch control
  • Back light control to lower power consumption



External Dimension

  5inch-HDMI-LCD-B-dimension

Development Resources

Wiki : www.waveshare.com/wiki/5inch_HDMI_LCD_(B)



FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might doesn't have enough power to support the Pi and LCD.

For more info, please check the wiki page.



Selection Guide

Part Number

Resolution

LCD Interface

Touch Panel Interface

Dimension (mm)

How you feel

Touch Panel Type

Feature

3.2inch RPi LCD (B)

320x240

I/O

I/O

As the Pi

★★
(indeed it displays something)

Resistive

Cheap

3.5inch RPi LCD (A)

320x480

I/O

I/O

As the Pi

★★★
(not bad)

Resistive

High cost performance

4inch RPi LCD (A)

320x480

I/O

I/O

95 x 61

★★★☆
(better enough)

Resistive

IPS screen

5inch HDMI LCD

800x480

HDMI

I/O

121 x 78

★★★★
(good)

Resistive

High definition

5inch HDMI LCD (B)

800x480

HDMI

USB

121 x 76

★★★★
(good)

Resistive

High definition, supports various systems

7inch HDMI LCD (B)

800x480

HDMI

USB

165 x 107

★★★★☆
(great)

Capacitive

High definition, supports various systems

7inch HDMI LCD (C)

1024x600

HDMI

USB

165 x 107

★★★★★
(amazing)

Capacitive

IPS screen, Ultra high definition, supports various systems

LCD01038
