Ecrã tátil resistivo 5'' HDMI LCD 800x480 + Moldura

: LCD01064
43,50 €
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

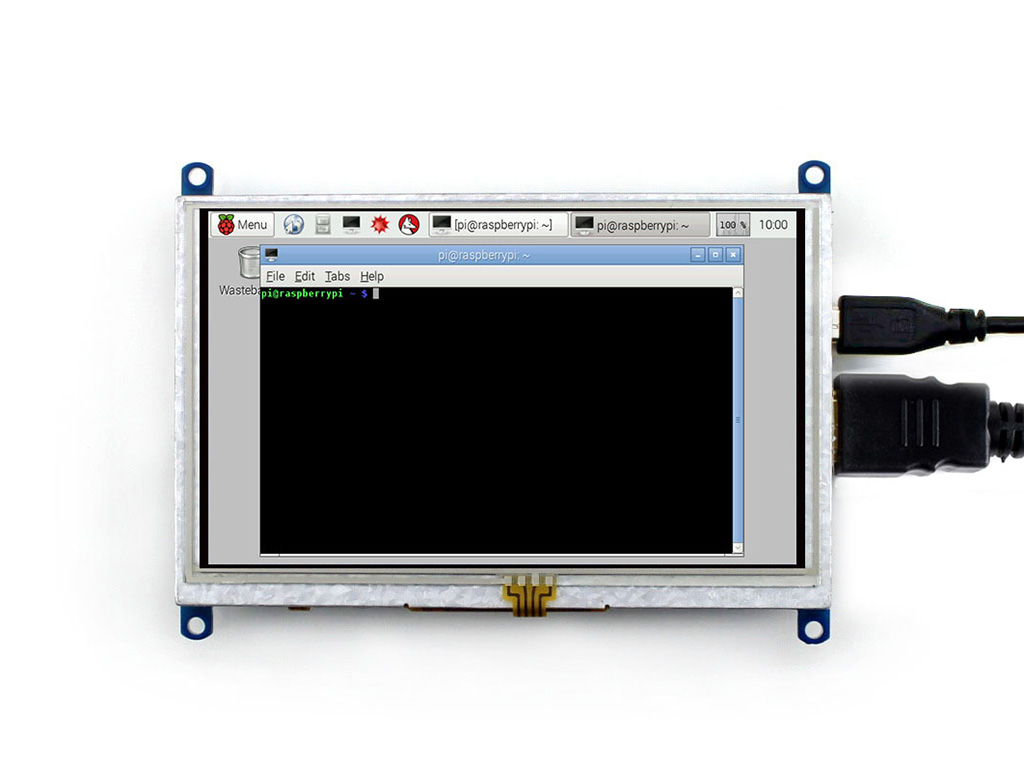

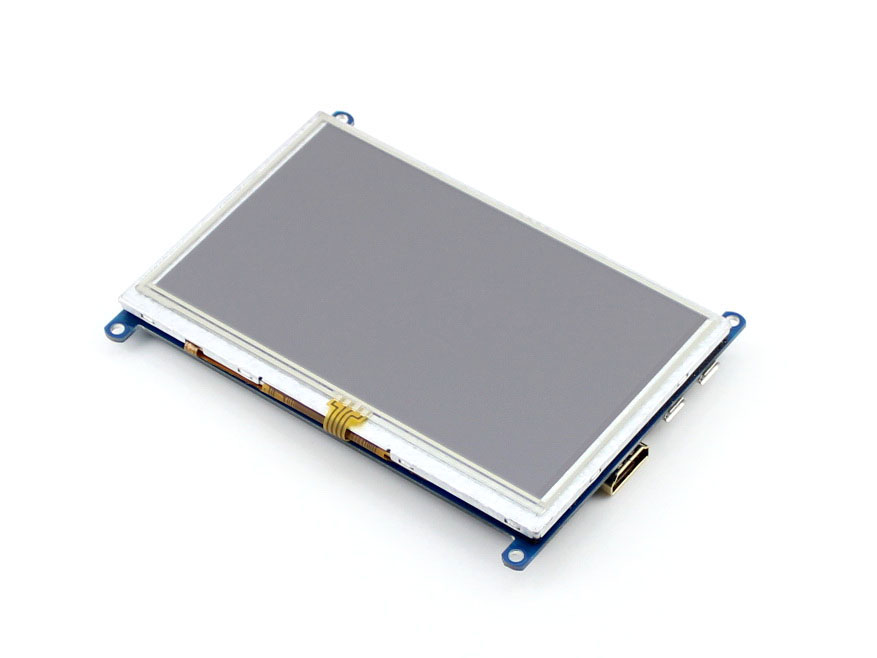

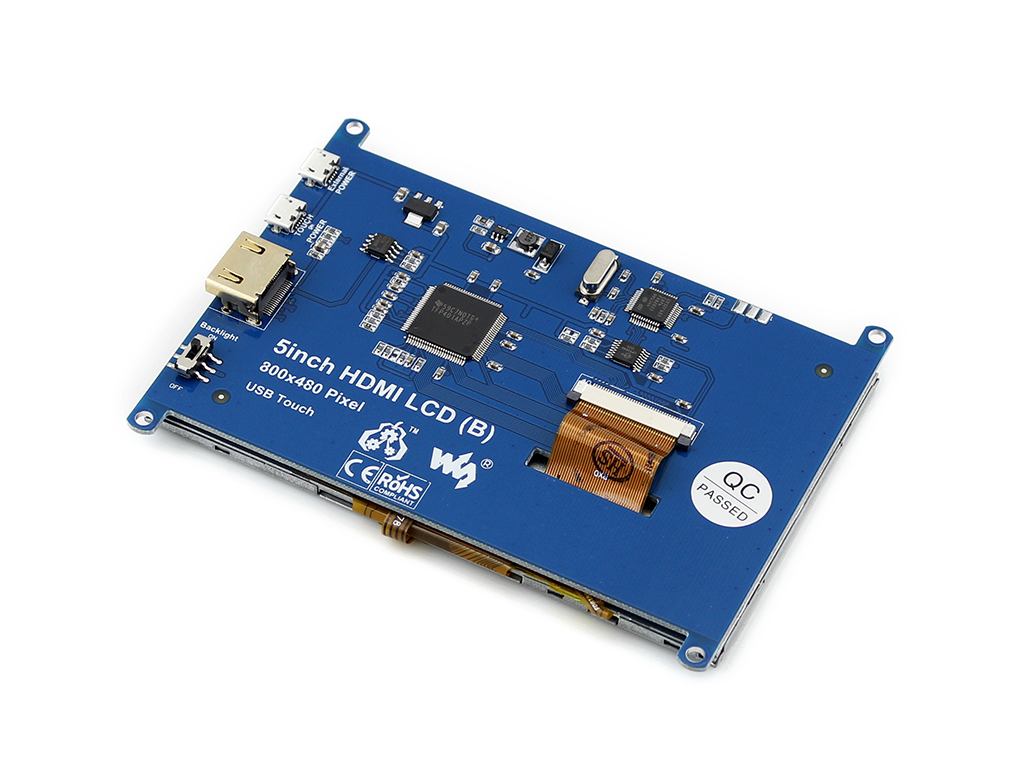

The LCD

  • 800×480 high resolution
  • Resistive touch control

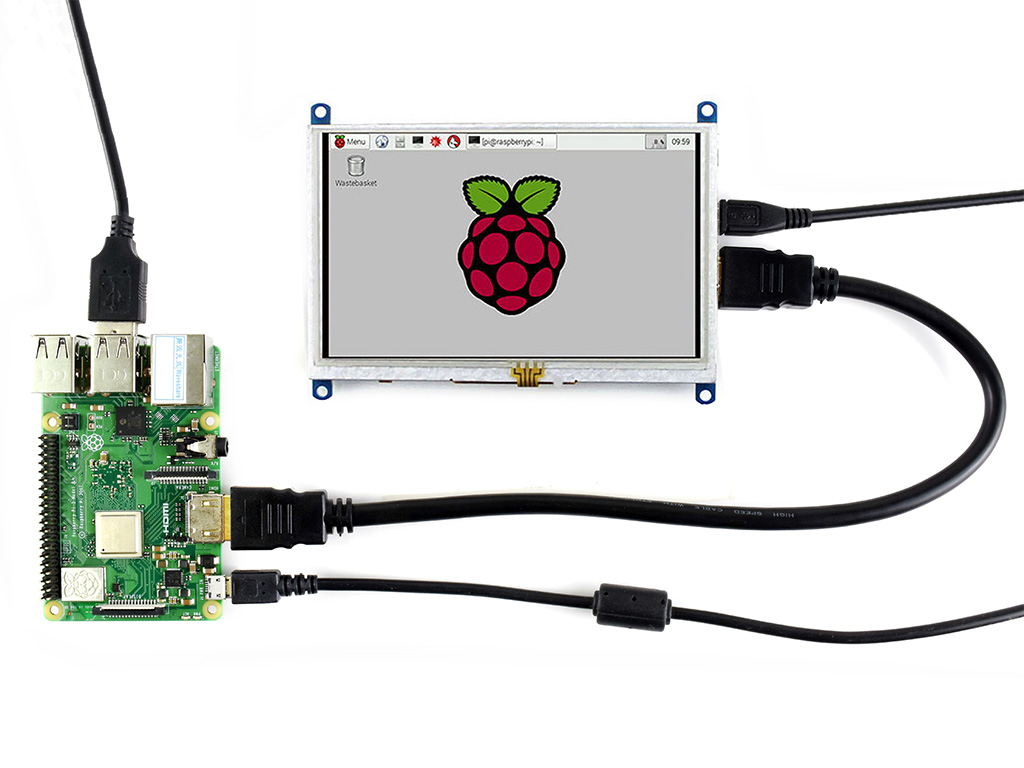

  • Supports Raspberry Pi
  • Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
  • Supports BB Black, comes with Angstrom image
  • For other mini-PCs, driver is required and should be developed by users
  • Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
  • HDMI interface for displaying, USB interface for touch control
  • Back light control to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

Rev1.1:

  • For the Raspberry Pi, Raspbian/Ubuntu driver is required
  • When work as a computer monitor, touch function is unavailable

Rev2.1 New Features:

  • Standard HID protocol, easy to be integrated into your system
  • For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free

More info : 5inch HDMI LCD (B)

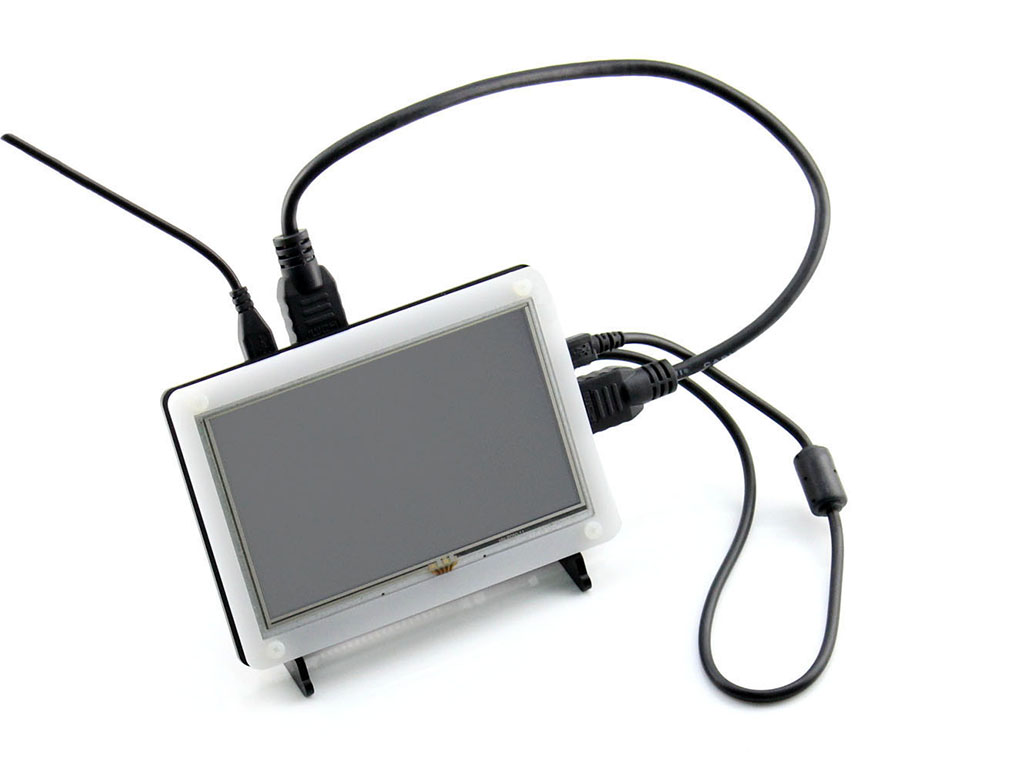

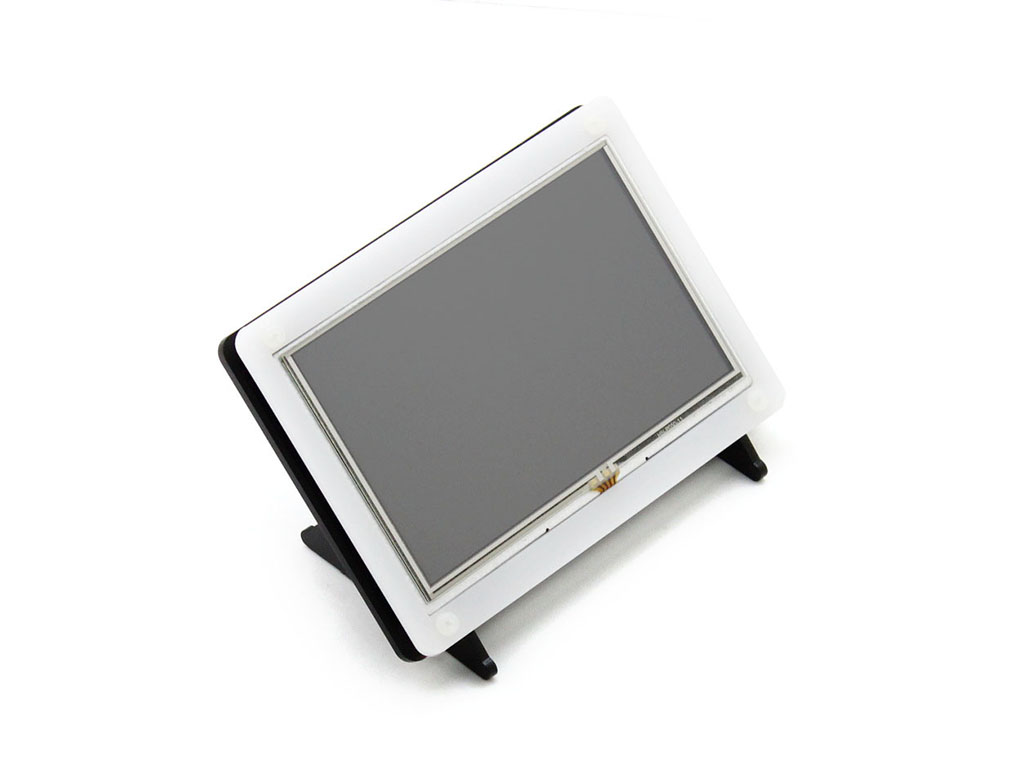

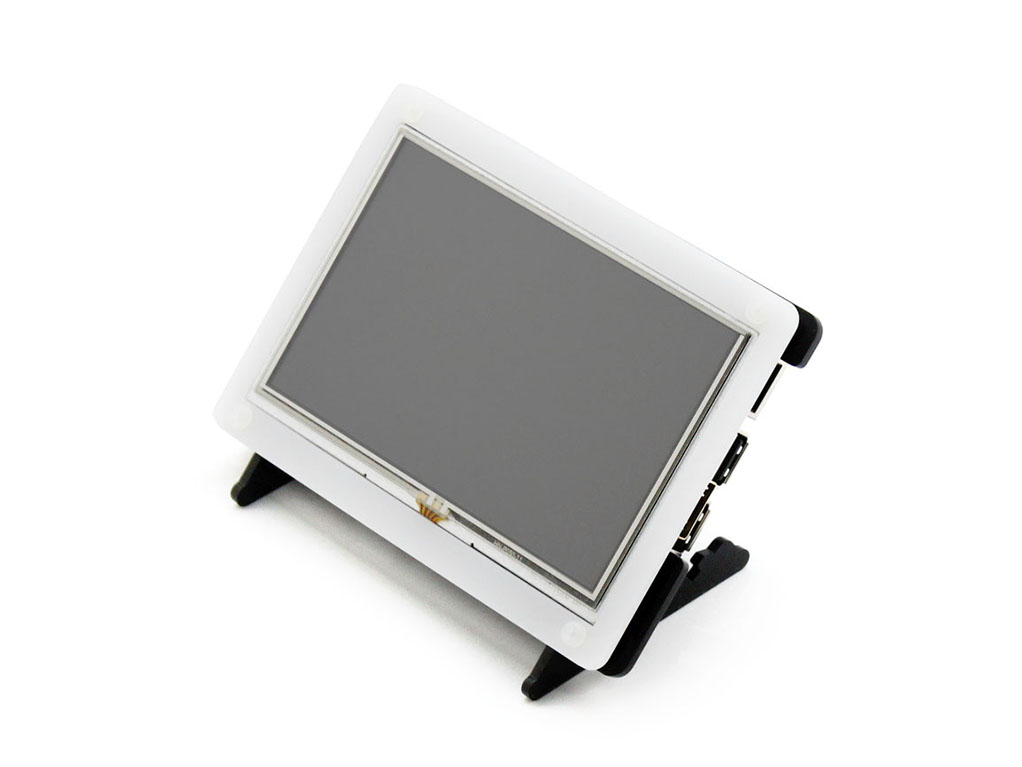

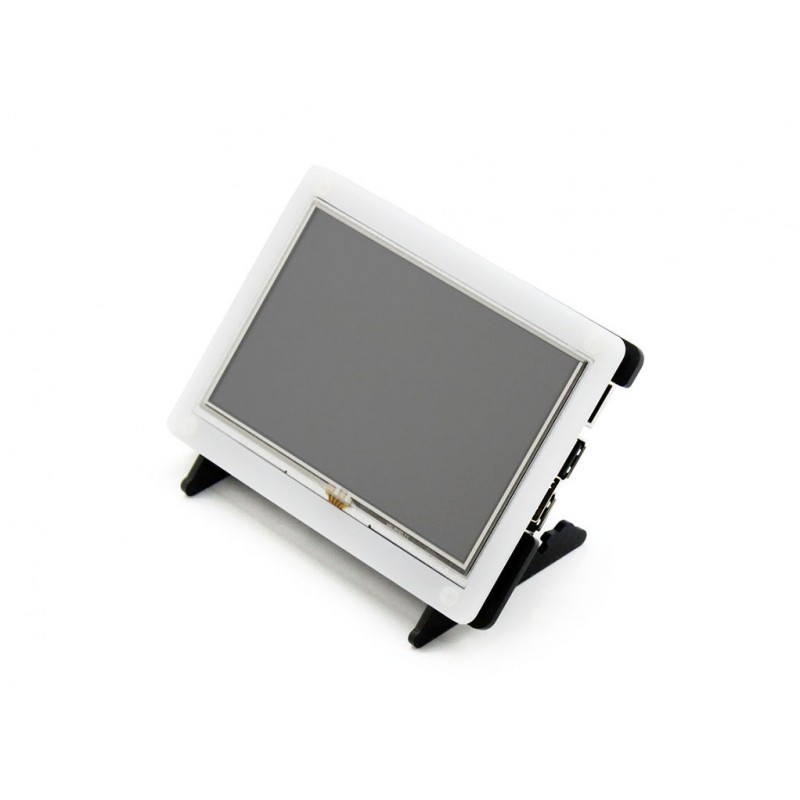

The Case

  • Material : high quality bicolor Acrylic, black and white
  • Comes with bottom holder, optional tilt angle, 45° or 60°
  • Features mounting holes for Raspberry Pi B/A+/B+/2B/3B, Banana Pro

More info : Bicolor Case for 5inch LCD Type B

Supported mini PC

mini PCDriverImage
Raspberry Pi B Raspbian Raspbian
Raspberry Pi A+ Raspbian Raspbian
Raspberry Pi B+ Raspbian Raspbian
Raspberry Pi 2 Model B Raspbian Raspbian, Ubuntu
Raspberry Pi 3 Model B Raspbian Raspbian, Ubuntu
Banana Pi - Raspbian, Lubuntu
Banana Pro - Raspbian, Lubuntu
BB Black - Angstrom

Note :
Drivers can be added to your current system to support LCD display and touch control.
Images CAN NOT be used with your current system. They're stand-alone systems which support LCD display and touch control already.

Photos

Development Resources

How to install: instruction

Wiki : www.waveshare.com/wiki/5inch_HDMI_LCD_(B)

Package Content

Weight: 0.27 kg

  1. 5inch HDMI LCD (B) x 1
  2. HDMI cable x 1
  3. Touch pen x 1
  4. USB type A plug to micro B plug cable x 1
  5. RPi LCD screws pack (4pcs) x 1
  6. DVD × 1
  7. Bicolor Case for 5inch LCD Type B × 1
  8. Screws Pack × 1

FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

For more info, please check the wiki page.

Selection Guide

Part NumberResolutionLCD InterfaceTouch Panel InterfaceFor use withDimension (mm)Touch Panel TypeHow you feelFeature
2.8inch RPi LCD (A) 320x240 I/O I/O Pi As the Pi 3B Resistive ★★ Low cost
3.2inch RPi LCD (B) 320x240 I/O I/O Pi As the Pi 3B Resistive ★★ Low cost
3.5inch RPi LCD (A) 320x480 I/O I/O Pi As the Pi 3B Resistive ★★★ Cost effective
4inch RPi LCD (A) 320x480 I/O I/O Pi 94 × 61 Resistive ★★★☆ IPS screen
4inch HDMI LCD 800×480 HDMI I/O Pi 99 × 58 Resistive ★★★★☆ IPS screen
4.3inch HDMI LCD 480×272 HDMI I/O Pi 106 × 68 Resistive ★★★★ Cost effective
5inch HDMI LCD 800x480 HDMI I/O Pi 121 x 78 Resistive ★★★★ Low cost
5inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 121 x 76 Resistive ★★★★ Supports various systems
7inch HDMI LCD 1024×600 HDMI I/O Pi 165 × 107 Resistive ★★★★☆ IPS screen
7inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★☆ Supports various systems
7inch HDMI LCD (C) 1024x600 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★★ IPS screen, Supports various systems
10.1inch HDMI LCD 1024×600 HDMI I/O Pi 235 × 144 Resistive ★★★★☆ Cost effective
10.1inch HDMI LCD (H) 1024x600 HDMI USB Not only Pi 257 x 162 Capacitive ★★★★☆ Supports various systems
10.1inch HDMI LCD (B) 1280x800 HDMI USB Not only Pi 274 × 187 Capacitive ★★★★★ IPS screen, Supports various systems

Note :
Pi 3B = Raspberry Pi 3 Model B
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.

Have a look :
RPi LCD Comparing

Anti-Piracy

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:

RPi LCD Anti-Piracy
(Click to enlarge)
