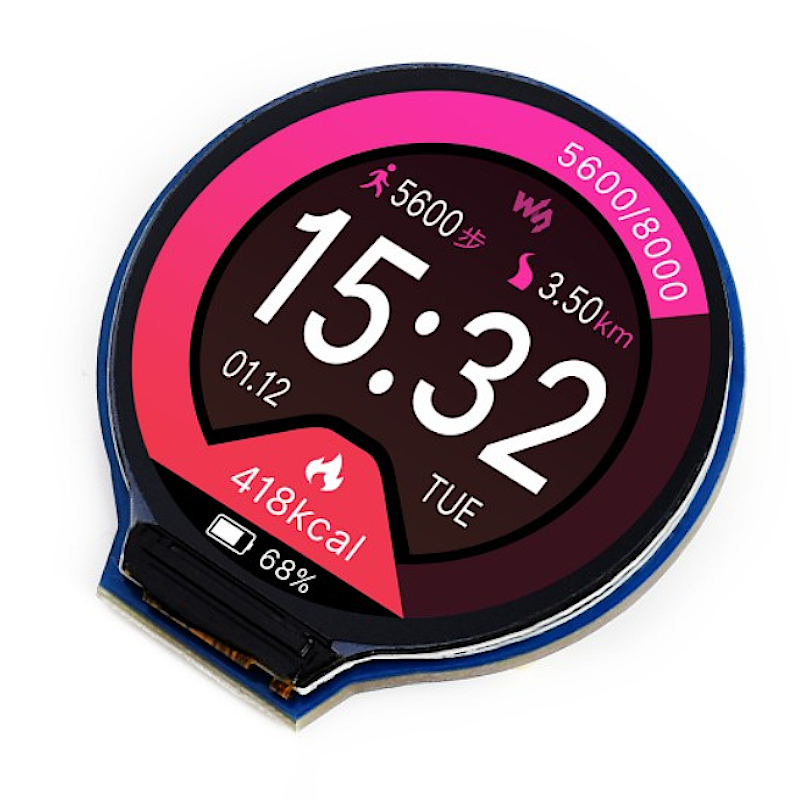

DISPLAY REDONDO 1.28i 240x240 65K RGB

: LCD01146
15,60 €
preço com IVA incluído

Este display RGB de 1.28 polegadas tem o formato ideal para contruires o teu própio relógio usando um Arduino ou uma Raspberry Pi.

Se quiseres saber mais sobre este producto, consulta a sua Wiki Page.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

1.28" ROUND LCD DISPLAY MODULE

Embedded GC9A01 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



Features At A Glance

  1. 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
  2. SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
  3. Comes with development resources (examples for Raspberry Pi/Arduino/STM32)


Specifications

OPERATING VOLTAGE

3.3V / 5V

RESOLUTION

240 × 240 pixels

COMMUNICATION INTERFACE

4-wire SPI

DISPLAY SIZE

Φ32.4mm

DISPLAY PANEL

IPS

PIXEL SIZE

0.135 × 0.135mm

DRIVER

GC9A01

DIMENSIONS

40.4 × 37.5mm Φ37.5mm



Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32


VCC

Power (3.3V / 5V input)

GND

Ground

DIN

SPI data input

CLK

SPI clock input

CS

Chip selection, low active

DC

Data/Command selection (high for data, low for command)

RST

Reset, low active

BL

Backlight





Hardware Connection





Outline Dimensions



Resources & Services





Package Content

Weight: 0.015 kg

  1. 1.28inch LCD Module x1
  2. PH2.0 8PIN 20cm cable x1
