Microcontrolador Raspberry Pi Pico - Raspberry Pi SC0915

: PCO01165
3,58 €

A Raspberry Pi Foundation desta vez apostou no desenvolvemento de aplicações e software de baixo nível, disponibilizando no mercado a RP2040, mais conhecida como Raspberry Pi Pico.

Com um microcontrolador desenvolvido de raíz pela Raspberry Pi Foundation, esta Pico vem cheia de tutoriais ( ver mais Documentos na descrição ) para podermos descobrir, testar e evoluir os nossos conhecimentos de programação e interacção de aplicações com o mundo exterior !

NOTA: Esta é a versão original da Raspberry Pi Pico, se quiseres ter acesso à versão mais atualizada, é só clicar aqui.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

For beginners, for experts

From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands.

Programmable in C and MicroPython, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file.

More experienced users can take advantage of Raspberry Pi Pico’s rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.



Manual Link for Download



Specification

  • 21 mm × 51 mm form factor
  • RP2040 microcontroller chip designed by Raspberry Pi in the UK
  • Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
  • 264KB on-chip SRAM
  • 2MB on-board QSPI Flash
  • 26 multifunction GPIO pins, including 3 analogue inputs
  • 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
  • Supported input power 1.8–5.5V DC
  • Operating temperature -20°C to +85°C
  • Castellated module allows soldering direct to carrier boards
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes
  • Accurate on-chip clock
  • Temperature sensor
  • Accelerated integer and floating-point libraries on-chip

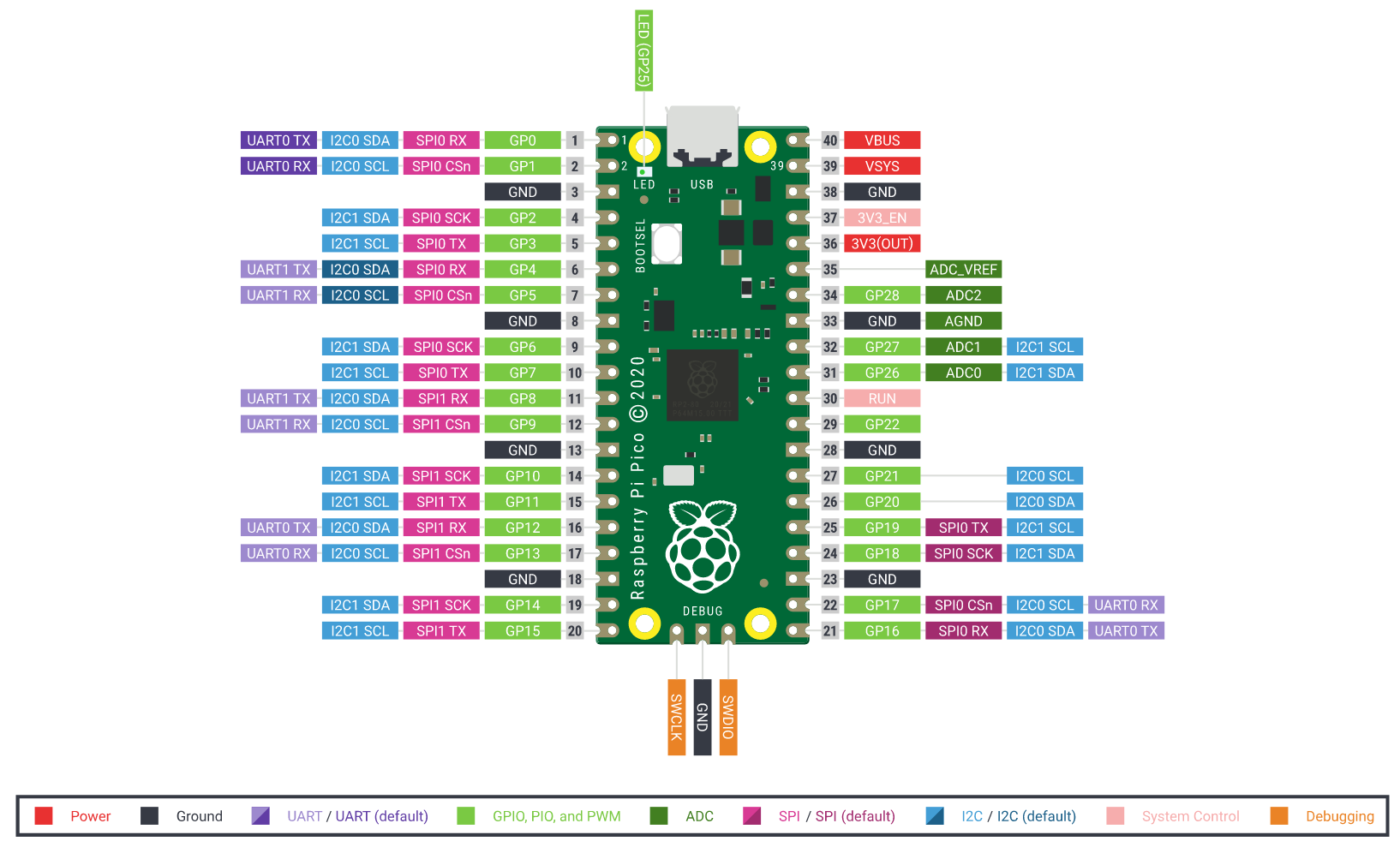

Pinout Diagram

Pinout



Get started

The best place to find everything you need to get started with your Raspberry Pi Pico is here.



Drag and drop MicroPython

You can program your Pico by connecting it to a computer via USB, then dragging and dropping a file onto it, so we’ve put together a downloadable UF2 file to let you install MicroPython more easily.

  1. Download the MicroPython UF2 file by clicking the button below.
  2. Push and hold the BOOTSEL button and plug your Pico into the USB port of your Raspberry Pi or other computer. Release the BOOTSEL button after your Pico is connected.
  3. It will mount as a Mass Storage Device called RPI-RP2.
  4. Drag and drop the MicroPython UF2 file onto the RPI-RP2 volume. Your Pico will reboot. You are now running MicroPython.

You can access the REPL via USB Serial. Our MicroPython documentation contains step-by-step instructions for connecting to your Pico and programming it in MicroPython.



  Download UF2 file

MicroPython Drag and Drop Programming
