Kit de avaliação c/ módulo ZigBee CC2530 - pinout xBee

:COM04020
16,18 €
preço com IVA incluído

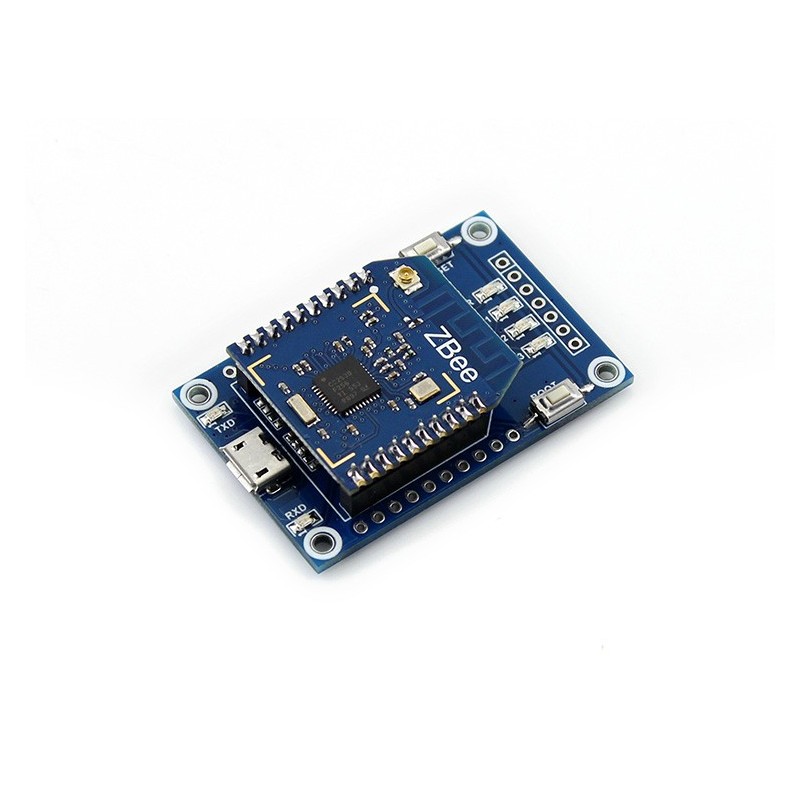

Modulo ZigBee CC2530F256 compativel com o pinout do XBee. Este kit inclui o adpatador USB XBee para ligação direta ao PC.

Este produto inclui apenas um módulo CC2530, sendo que para poder comunicar necessita de dois módulos CC2530 para poder implementar uma rede ZigBee.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

DESCRIPTION

ZigBee development/evaluation kit designed for CC2530F256, supports XBee

This product includes ONLY one CC2530 module, while at least two CC2530 modules are required to setup a ZigBee network.

Overview

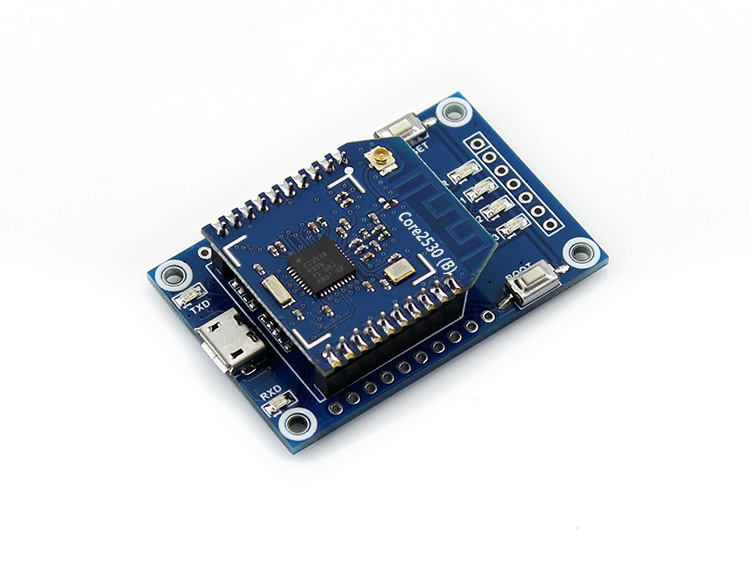

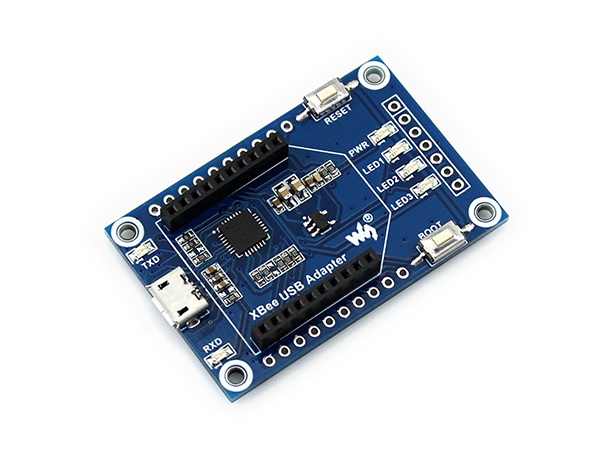

CC2530 Eval Kit5 is a ZigBee development/evaluation kit based on CC2530, which also supports XBee connectivity. The kit consists of the base board XBee USB Adapter and the ZigBee module Core2530 (B).

Basically this kit can be used in two aspects :

  • Develop application with the provided firmware
    Combined with our provided firmware, you can use this kit to set up a minimal ready-to-run ZigBee system for testing or evaluating, and requires NO knowledge about the complicate ZigBee Specification
  • Develop your own firmware
    In this case, you should start from the very underlying to create your solution, what's more, debuggers (like CC Debugger) and knowledge about ZigBee Specification are also required

Note : The Core2530 (B) comes preloaded Bootloader, therefore, you can program BIN files directly via the XBee USB Adapter.

Core2530 (B) Features

  • As easy to use as any UART modules
  • Provided firmware : Coordinator, Router, End Device
    • Router firmware is preloaded by default
  • Supports sending large data packet & fast broadcasting via UART
  • Supports programming via UART (thanks to the Bootloader, and an serial module is required)
  • Supports configuring via upper computer software : working mode, UART port, baudrate, signal channel, etc.
  • Optional hardware interface
    • XBee compatible straight through pin headers (soldered by default)
    • SMT stamp holes are also available (for batch purchase, the pin headers can be removed if required)
  • MISC
    • Auto networking (at least 1 Coordinator and 1 Router are required)
    • Real-time monitoring the signal intensity between Coordinator, Router, and End Device
    • Supports onboard PCB antenna and/or external IPEX antenna

Core2530 (B) Specifications

  • Onboard chip: CC2530F256RHAR
  • Communication distance (open and wide operating environment): up to 130 meters when using PCB antenna
  • Frequency range: 2.4GHz
  • Wide supply-voltage range (2 V–3.6 V)
  • Operating temperature: -40℃ ~ 85℃
  • Serial port baud rate: 38400bps (default), different baud rates are available by software configuration
  • Dimension: 26mm x 28mm (PCB)

CC2530F256RHAR Features

  • Frequency range: 2.4GHz
  • 16 transfer chains, software configurable according to environmental conditions
  • Radio baud rate up to 250kbps
  • High-Performance and Low-Power 8051 microcontroller core with code prefetch
  • 2.4-GHz IEEE 802.15.4 compliant RF transceiver
  • Wide supply-voltage range (2 V–3.6 V)
  • Watchdog timer, battery monitor, and temperature sensor
  • 12-Bit ADC with 8 channels and configurable resolution
  • 2 powerful USARTs with support for several serial protocols
  • IR generation circuitry
  • General-Purpose timers (One 16-Bit, Two 8-Bit)
  • AES security coprocessor
  • 21 General-Purpose I/O pins (19 × 4 mA, 2 × 20 mA)

Photos

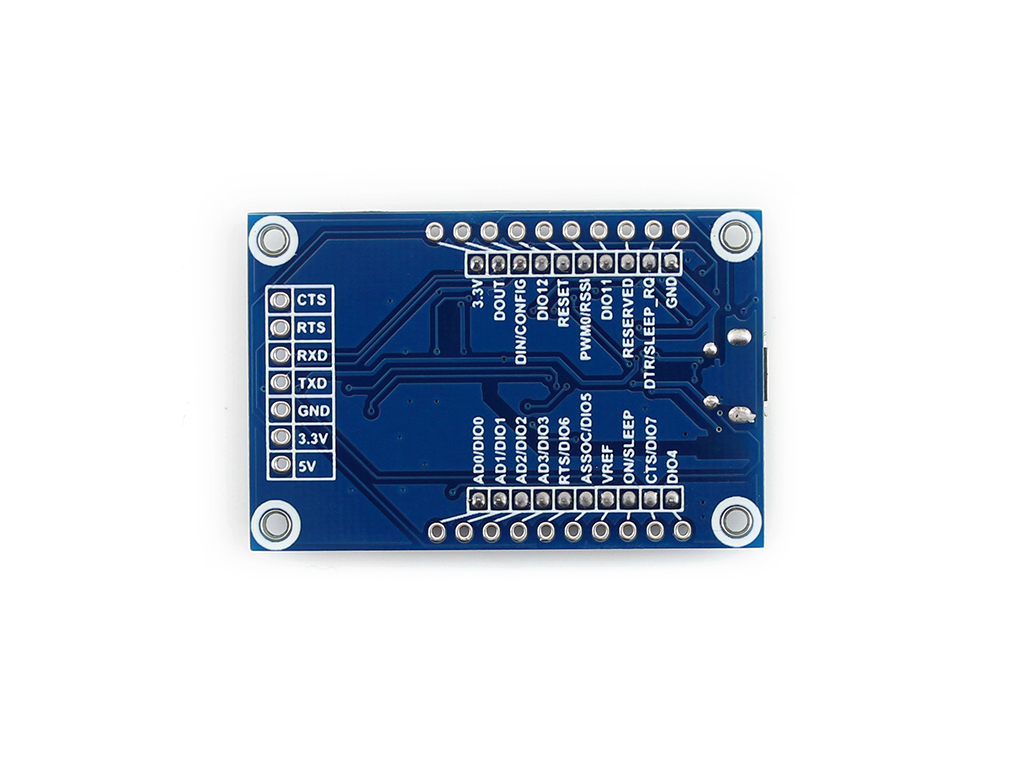

Pin Definition

Development Resources

Wiki : www.waveshare.com/wiki/CC2530_Eval_Kit5

Package Contents:

Weight: 0.062 kg

  1. Core2530 (B) × 1
  2. XBee USB Adapter × 1

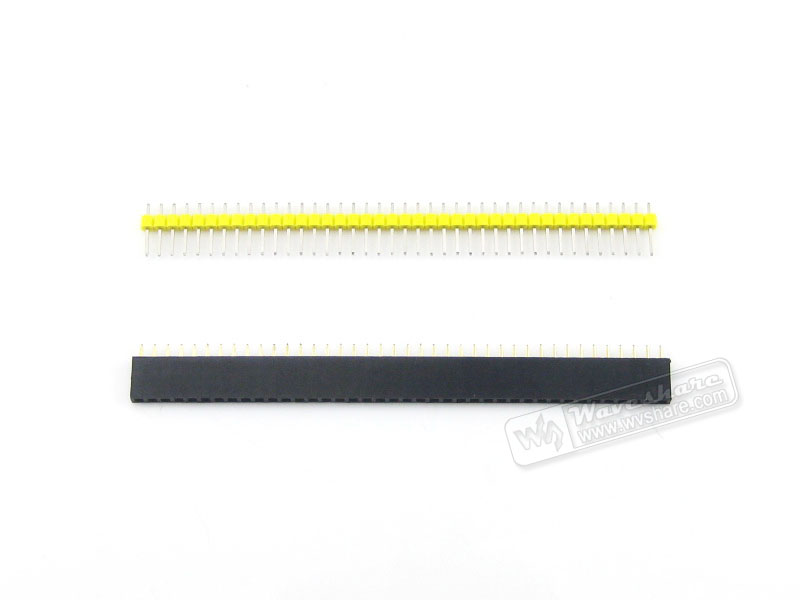

  3. 40-pin male pinheader & 40-pin female pinheader x 1
  4. USB Type A Plug to Micro B Plug Cable x 1
