 Kit de avaliação c/ módulo ZigBee CC2530 - 250m
  •  Kit de avaliação c/ módulo ZigBee CC2530 - 250m
  •  Kit de avaliação c/ módulo ZigBee CC2530 - 250m
  •  Kit de avaliação c/ módulo ZigBee CC2530 - 250m
  •  Kit de avaliação c/ módulo ZigBee CC2530 - 250m
  •  Kit de avaliação c/ módulo ZigBee CC2530 - 250m
  •  Kit de avaliação c/ módulo ZigBee CC2530 - 250m
  •  Kit de avaliação c/ módulo ZigBee CC2530 - 250m

Kit de avaliação c/ módulo ZigBee CC2530 - 250m

: COM04009
15,77 €

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Overview

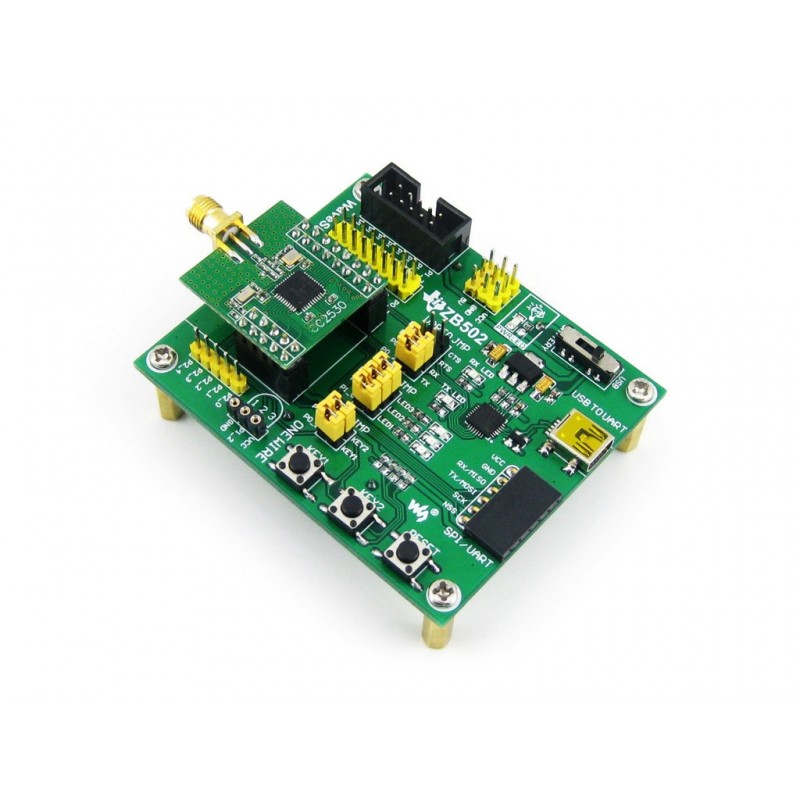

CC2530 Eval Kit is a ZigBee development/evaluation kit designed for CC2530F256, consists of the mother board ZB502 and the ZigBee moduleCore2530.

Basically this kit can be used in two aspects :

  • Develop application with the provided firmware
    Combined with our provided firmware, you can use this kit to set up a minimal ready-to-run ZigBee system for testing or evaluating, and requires NO knowledge about the complicate ZigBee Specification
  • Develop your own firmware
    In this case, you should start from the very underlying to create your solution, what's more, debuggers (like CC Debugger) and knowledge about ZigBee Specification are also required



ZB502 Features

  • Onboard battery holder, multi power supplies are available
  • All the IOs are accessible for easy expansion
  • Integrates CP2102 for debugging
  • LEDs and user keys




What's on the ZB502

ZigBee development board on board resource

  1. ZigBee module connector: for easily connecting ZigBee modules
  2. I/Os interface
  3. USB interface
  4. UART/SPI interface
  5. ONE-WIRE interface
  6. Debugging interface
  7. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  8. CP2102
  9. AMS1117-3.3
  10. Power switch
  11. Serial port RX/TX indicator
  12. Power indicator
  13. User LEDs
  14. User keys
  15. Reset button
  16. UART0 jumper
  17. LED jumper
  18. KEY jumper



Core2530 Features

  • As easy to use as any UART modules
  • Provided firmware : Coordinator, Router, End Device
    • Router firmware is preloaded by default
  • Supports sending large data packet & fast broadcasting via UART
  • Supports programming via UART (thanks to the Bootloader, and an serial module is required)
  • Supports configuring via upper computer software : working mode, UART port, baudrate, signal channel, etc.
  • MISC
    • Auto networking (at least 1 Coordinator and 1 Router are required)
    • Real-time monitoring the signal intensity between Coordinator, Router, and End Device



Core2530 Specifications

  • Onboard chip: CC2530F256RHAR
  • Communication distance (open and wide operating environment):
    • Absolute maximum: over 350 meters
    • Stable communication: over 250 meters
    • Auto connecting: over 120 meters
  • Frequency range: 2.4GHz
  • Wide supply-voltage range (2 V–3.6 V)
  • Operating temperature: -40℃ ~ 85℃
  • Serial port baud rate: 38400bps (default), different baud rates are available by software configuration
  • Expansion pinheader: all the I/Os
  • Pinheader pitch: 2.54mm
  • Spacing between pinheaders on the left side and the right side: 22.86mm (9x2.54mm)
  • Antenna: 2.4G 2DB 360° omni-directional



CC2530F256RHAR Features

  • Frequency range: 2.4GHz
  • 16 transfer chains, software configurable according to environmental conditions
  • Radio baud rate up to 250kbps
  • High-Performance and Low-Power 8051 microcontroller core with code prefetch
  • 2.4-GHz IEEE 802.15.4 compliant RF transceiver
  • Wide supply-voltage range (2 V–3.6 V)
  • Watchdog timer, battery monitor, and temperature sensor
  • 12-Bit ADC with 8 channels and configurable resolution
  • 2 powerful USARTs with support for several serial protocols
  • IR generation circuitry
  • General-Purpose timers (One 16-Bit, Two 8-Bit)
  • AES security coprocessor
  • 21 General-Purpose I/O pins (19 × 4 mA, 2 × 20 mA)



Photos



Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/CC2530_Eval_Kit



Package Content

  1. ZB502 x 1
  2. Core2530 x 1
  3. Antenna x 1
  4. USB type A to Mini-B cable x 1
  5. 4-pin 2-pin wires pack x 1
