Este router da Waveshare conta com o chip da Qualcomm, três portas Ehternet e pode oferecer uma ligação rápida e estável à Internet. Para além disso oferece também múltiplos protocolos VPN fazendo assim com que os teus dados fiquem mais seguros.
Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.

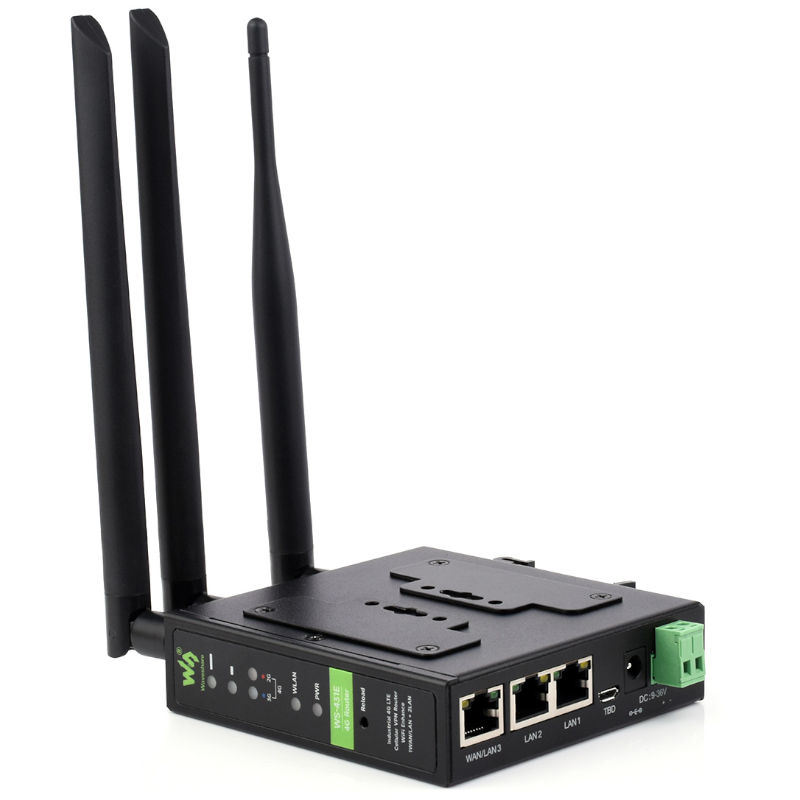

The WS-431E 4G Router is a new Qualcomm solution Wi-Fi enhanced industrial router with excellent anti-interference capability and stable connection performance, supports WIFI hotspot, WIFI client, and WIFI relay modes, and is integrated with 4G LTE, Wi-Fi, Ethernet ports (2LAN and 1WAN/LAN) and VPN technologies.
The WS-431E can provide advanced Internet connectivity and high-speed data access for the devices, allowing users to quickly build their own application network, and also helping enterprise customers achieve efficient large-scale network deployment and management. It is suitable for various IoT and M2M solutions such as service robots, inspection robots, unmanned vehicle networking, massage chair networking, AGV car, and other industrial application scenarios.
| Cellular network parameters | |
|---|---|
|
Frequency band |
TDD-LTE: B38/40/41 |
|
WiFi |
|
|
Standard |
IEEE 802.11b/g/n, 2.4GHz |
|
Data speed |
300Mbps |
|
MIMO |
2×2 |
|
Transmission distance |
500 meters with an open field, the actual transmission distance depends on the environment of the site |
|
Interfaces |
|
|
WAN/LAN |
1× WAN RJ45 port (can be configured as LAN), 10/100 Mbps, supports auto MDI/MDIX, 1.5KV electromagnetic isolation protection |
|
LAN |
2× LAN RJ45 port, 10/100 Mbps, supports auto MDI/MDIX, 1.5KV electromagnetic isolation protection |
|
SIM card slot |
Supports standard Nano (3 V/1.8 V) |
|
Antenna |
SMA-K standard antenna connector, comes with 1x 4G antennas, 2x WiFi antennas by default |
|
TBD |
Debug interface |
|
Reload button |
Supports factory restore |
|
Grounding screw |
Grounding protection |
|
Indicators |
|
|
PWR |
Power indicator, lights up after powered on |
|
WIFI |
Lights up when WiFi is enabled |
|
2/3/4G network indicator |
2G led lights up after being connected to 2G network |
|
SIG |
2× signal strength indicator: lights up one indicates that the signal is average; lights up two indicates that the signal is strong |
|
Power Supply |
|
|
Power adapter |
DC 12V/1A |
|
Input voltage |
DC 9-36V |
|
Power consumption |
Average 260mA/12V |
|
Physical Characteristics |
|
|
Operating temperature |
-20℃~+70℃ |
|
Storage temperature |
-40℃～+125℃（non-condensing) |
|
Relative humidity |
5%~95%（non-condensing） |
|
Case material |
Metal case, IP30 protection level |
|
Dimensions |
104.0×102.0×28.0mm |
|
Installation |
DIN rail mounting, wall mounting, tabletop |
|
EMC |
level 3 |
Comprehensive VPN protocols support ensures your data security, Including OpenVPN, IPsec, PPTP, L2TP and GRE
Supports multiple encryption methods for financial-grade data transmission
Allows connecting to three different OpenVPN servers as a client and also supports functioning as an OpenVPN server
One-click to import ovpn config-file and PKCS# 12 cert-file, Say goodbye to the complex parameter.
Compatible with multiple Openvpn Servers such as OpenVPN® Cloud Connexa™, OpenVPN® Access Server, OpenVPN® @AWS EC2, Open source OpenVPN , Opnsense, pfsense, etc.
The core Wi-Fi chip (master control) and 4G cellular module both adopt the industry-leading Qualcomm solution to ensure the performance and stability of the device
Cellular, wired and Wi-Fi internet access modes can be switched freely;
The Service can be recovered in time when there is a network abnormality;
Allows connecting Ethernet & Wi-Fi terminal to this router for data transmission
Watchdog
Hardware & software dual watchdog
7*24 hours stable operation without downtime
Surge Protection (level 3)
Prevent equipment hardware against damage caused by instantaneous current in the circuit, lightningproof & transient spike voltage proof
Wide Operation Temperature
-20℃ ~ +70℃
ESD Protection (level 3)
Prevent damage to equipment from static electricity, such as dust static electricity, electric arc, etc.
Features hardware industrial-grade design and powerful software functionality, suitable for various industrial fields and IoT application scenarios
Wiki: www.waveshare.com/wiki/WS-431E_4G_Router
Weight: 0.66 kg
WS-431E 4G Route x 1
SMA Protective Cap 3pcs x 1
12V 1A EU head Power Supply x 1
WIFI Antenna 2pcs x 1
4G Antenna x 1
