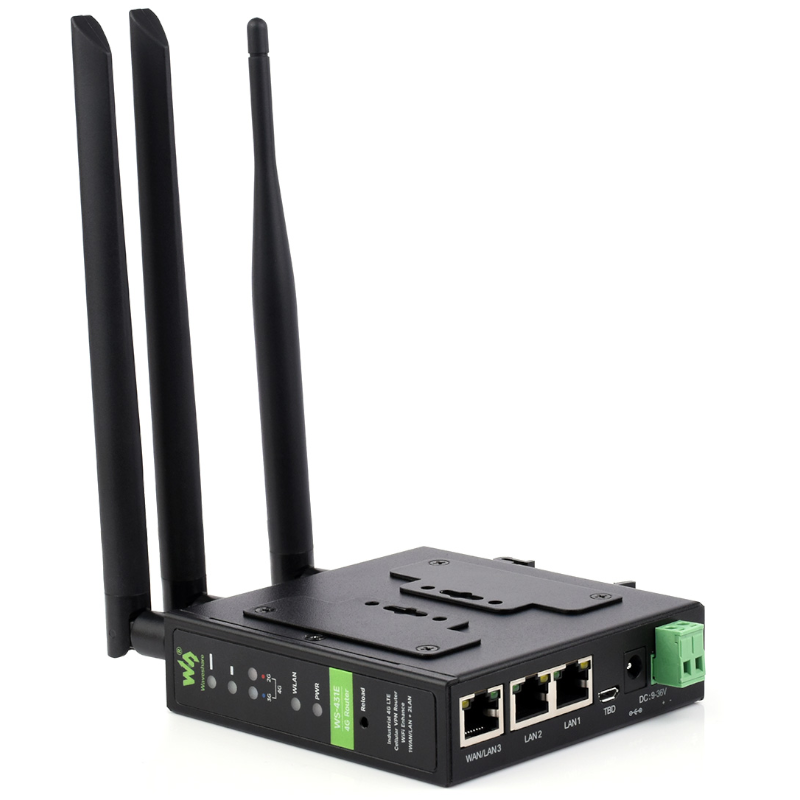

Industrial 4G LTE Router WS-431E with multiple VPN Support, 3-ch Ethernet Ports, Enhanced WiFi, dual Qualcomm chips

:COM02056
€96.75

This Waveshare router has a Qualcomm chip, three Internet ports and can offer a fast and stable Internet connection. It also offers multiple VPN protocols, making your data more secure.

If you want to know more about this product, check out its Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.




Features at a glance

The WS-431E 4G Router is a new Qualcomm solution Wi-Fi enhanced industrial router with excellent anti-interference capability and stable connection performance, supports WIFI hotspot, WIFI client, and WIFI relay modes, and is integrated with 4G LTE, Wi-Fi, Ethernet ports (2LAN and 1WAN/LAN) and VPN technologies.

The WS-431E can provide advanced Internet connectivity and high-speed data access for the devices, allowing users to quickly build their own application network, and also helping enterprise customers achieve efficient large-scale network deployment and management. It is suitable for various IoT and M2M solutions such as service robots, inspection robots, unmanned vehicle networking, massage chair networking, AGV car, and other industrial application scenarios.





Specifications

Cellular network parameters

Frequency band

TDD-LTE: B38/40/41
FDD-LTE: B1/3/7/8/20/28A
WCDMA: B1/8
GSM/EDGE:B3/8

WiFi

Standard

IEEE 802.11b/g/n, 2.4GHz

Data speed

300Mbps

MIMO

2×2

Transmission distance

500 meters with an open field, the actual transmission distance depends on the environment of the site

Interfaces

WAN/LAN

1× WAN RJ45 port (can be configured as LAN), 10/100 Mbps, supports auto MDI/MDIX, 1.5KV electromagnetic isolation protection

LAN

2× LAN RJ45 port, 10/100 Mbps, supports auto MDI/MDIX, 1.5KV electromagnetic isolation protection

SIM card slot

Supports standard Nano (3 V/1.8 V)

Antenna

SMA-K standard antenna connector, comes with 1x 4G antennas, 2x WiFi antennas by default

TBD

Debug interface

Reload button

Supports factory restore

Grounding screw

Grounding protection

Indicators

PWR

Power indicator, lights up after powered on

WIFI

Lights up when WiFi is enabled

2/3/4G network indicator

2G led lights up after being connected to 2G network
3G led lights up after being connected to 3G network
Both leds light up after being connected to 4G network

SIG

2× signal strength indicator: lights up one indicates that the signal is average; lights up two indicates that the signal is strong

Power Supply

Power adapter

DC 12V/1A

Input voltage

DC 9-36V

Power consumption

Average 260mA/12V

Physical Characteristics

Operating temperature

-20℃~+70℃

Storage temperature

-40℃~+125℃(non-condensing)

Relative humidity

5%~95%(non-condensing)

Case material

Metal case, IP30 protection level

Dimensions
(L × W × H)

104.0×102.0×28.0mm

Installation

DIN rail mounting, wall mounting, tabletop

EMC

level 3



Multiple VPN protocols support for data security

Comprehensive VPN protocols support ensures your data security, Including OpenVPN, IPsec, PPTP, L2TP and GRE
Supports multiple encryption methods for financial-grade data transmission




Enhanced OpenVPN Design - Easy to use, but also professional

Allows connecting to three different OpenVPN servers as a client and also supports functioning as an OpenVPN server




One-click to import ovpn config-file and PKCS# 12 cert-file, Say goodbye to the complex parameter.




Compatible with multiple Openvpn Servers such as OpenVPN® Cloud Connexa™, OpenVPN® Access Server, OpenVPN® @AWS EC2, Open source OpenVPN , Opnsense, pfsense, etc.






Easy for Subnet Device Interconnection - Multiple Remote Access Methods






Dual Qualcomm chips, more stable

The core Wi-Fi chip (master control) and 4G cellular module both adopt the industry-leading Qualcomm solution to ensure the performance and stability of the device





WIFI enhance, more coverage





Rich Networking modes, Smooth and reliable

Cellular, wired and Wi-Fi internet access modes can be switched freely;
The Service can be recovered in time when there is a network abnormality;
Allows connecting Ethernet & Wi-Fi terminal to this router for data transmission




Industrial Grade Design, High Reliability


Watchdog
Hardware & software dual watchdog
7*24 hours stable operation without downtime






Surge Protection (level 3)
Prevent equipment hardware against damage caused by instantaneous current in the circuit, lightningproof & transient spike voltage proof






Wide Operation Temperature
-20℃ ~ +70℃






ESD Protection (level 3)
Prevent damage to equipment from static electricity, such as dust static electricity, electric arc, etc.







Wall Mounting & DIN Rail Mounting





Interface Introduction





Applications

Features hardware industrial-grade design and powerful software functionality, suitable for various industrial fields and IoT application scenarios





Outline Dimensions




Resources & Services


Wiki: www.waveshare.com/wiki/WS-431E_4G_Router



Package Content

Weight: 0.66 kg

  1. WS-431E 4G Route x 1

  2. SMA Protective Cap 3pcs x 1

  3. 12V 1A EU head Power Supply x 1

  4. WIFI Antenna 2pcs x 1

  5. 4G Antenna x 1
