Sensor de Temperatura c/ Relé

: SEN06043
6,42 €

Sensor de temperatura com saída a relé.

Através de um potenciómetro consegue defenir a temperatura e acima desse valor o relé é activado.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The Temperature Sensitive Relay Module 5V can automatically control a load such as a fan or heating device based on the temperature.

PACKAGE INCLUDES:

  • Temperature Sensitive Relay Module 5V

KEY FEATURES OF TEMPERATURE SENSITIVE RELAY  MODULE 5V:

  • Built-in thermistor temperature sensor automatically controls the relay based on temperature.
  • Adjustable temperature set-point
  • Controls loads of 115/230VAC @ 10A
  • Controls loads of 0 – 15VDC @ 10A
  • LED indicator when relay is energized
  • 5V power operation

This is a self-contained switching module that energizes / de-energizes a relay based on the temperature.   Just add 5V power and hook up the load you want to control then adjust the potentiometer to set the temperature at which you want the relay to switch between ON / OFF.

This type of module can be used for applications such as to automatically turn on an exhaust fan when the temperature gets above a preset level as might be the case in a green house or aquarium room or it could be used to energize a heating device when the temperature drops below a preset level.

Theory of Operation

The temperature sensor on the module is a standard thermistor.

The temperature trip-point for triggering the relay can be adjusted using the potentiometer on the module.  Turning the pot CW increases the temperature trip-point.

When the temperature goes over the trip-point value, an LM393 voltage comparator IC energizes the relay and it switches ON.  A green LED is illuminated when the relay is energized.

When the temperature drops below the preset value, the relay switches back OFF.

The relay has both NO (Normally Open) and NC (Normally Closed) contacts so the module can either be used to energize a load when temperature goes up past the trip-point value or when it goes down past that level.

A flyback diode is included on the module in parallel to the relay coil to safely shunt current when the relay coil is de-energized.

Module Connections

POWER

The module requires 5V power and ground to operate.  There is a red LED that is lit when power is applied to the module.   When the relay is energized, the module draws about 80mA from the Vcc pin.

1 x 2 Header (Power Connections)

  • Vcc = Connect to 5V power supply
  • GND = Connect to ground of the 5V power supply

LOAD

The output of the relay is rated to switch up to 30VDC at 10A or up to 250VAC at up to 10A (See our notes below about the maximum VDC that can be switched).

The output is SPDT type with both a NO (Normally Open) terminal and a NC (Normally Closed) terminal relative to the COM terminal.  When the relay is de-energized (green LED OFF) the NO-COM is open and the NC-COM is shorted.  When the relay is energized (green LED ON) the NO – COM is shorted and the NC-COM is open.

1 x 3 Screw Terminal (Load Connections)

  • Top = Normally Open relay contact – Load is connected to this terminal if it should switch ON when relay is energized.
  • Center = Common connection – Connects to AC or DC power source for load that is being controlled.
  • Bottom = Normally Closed relay contact – Load is connected to this terminal if it should switch ON when relay is de-energized.

OUR EVALUATION RESULTS:

These are inexpensive modules that will work for a number of applications and allow you to control devices based on temperature without the need to have a uC involved.  Just hook up 5V power and your load and you are all set.

We do find the DC rating of the relay to be too aggressive. With DC voltages above about 15V, the contacts can become a little sticky. We recommend using it to switch DC voltages of no more than 15V.

With AC, the relays performed very well in our testing.  To test the upper limit we used it to switch a 1500W heater that draws about 12.5A and the relay handled it without any problems though you should not exceed 10A in normal use.

To test the device, connect it to power and adjust the pot so that the green LED just goes out.  Warming the thermistor should cause the green LED to come on and an audible click heard from the relay as it switches.

To adjust the pot for the final application will take a little trial and error since the module uses a relative adjustment rather than being able to set it to a specific temperature level.  There is also quite a bit of hysteresis in the switching.  If you are trying to maintain a particular temperature with a level of precision, check out our W1209 and W1219 temperature controller modules below which may offer better value for your application.

If the module has long leads on the thermistor, ensure the leads stay separated and do not touch each other or the sensor will not work.

BEFORE THEY ARE SHIPPED, THESE MODULES ARE:

  • Inspected
  • Temperature sensor / relay operation verified
  • Repackaged in high quality resealable ESD bag for safe storage.

Notes:

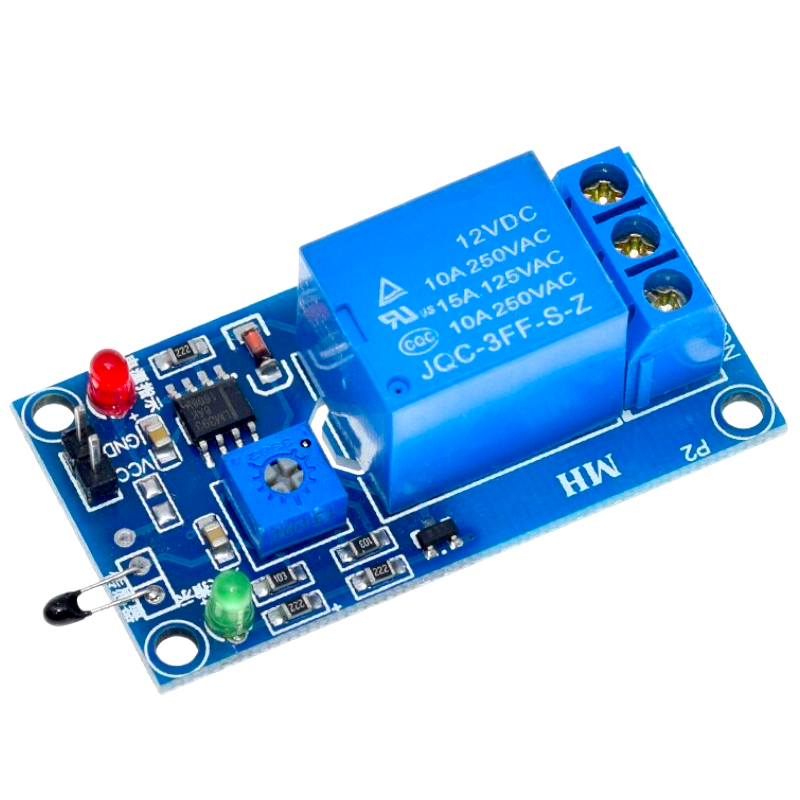

  1. The length of the leads on the thermistor can vary from relatively short to fairly long as shown in the pictures.

TECHNICAL SPECIFICATIONS

 Vcc Typical 5V
Contact Rating  DC 15V @ 10A  (Tested to 15V @ 6A)
 115VAC 10A
 250VAC  10A
Module Size L x W x H (PCB) 50 x 27 x 18mm (2 x 1.1 x 0 .71″)
Hole pattern 44.5 x 20.5mm (1.75 x 0.80″)
Hole size M3

SEN06043
