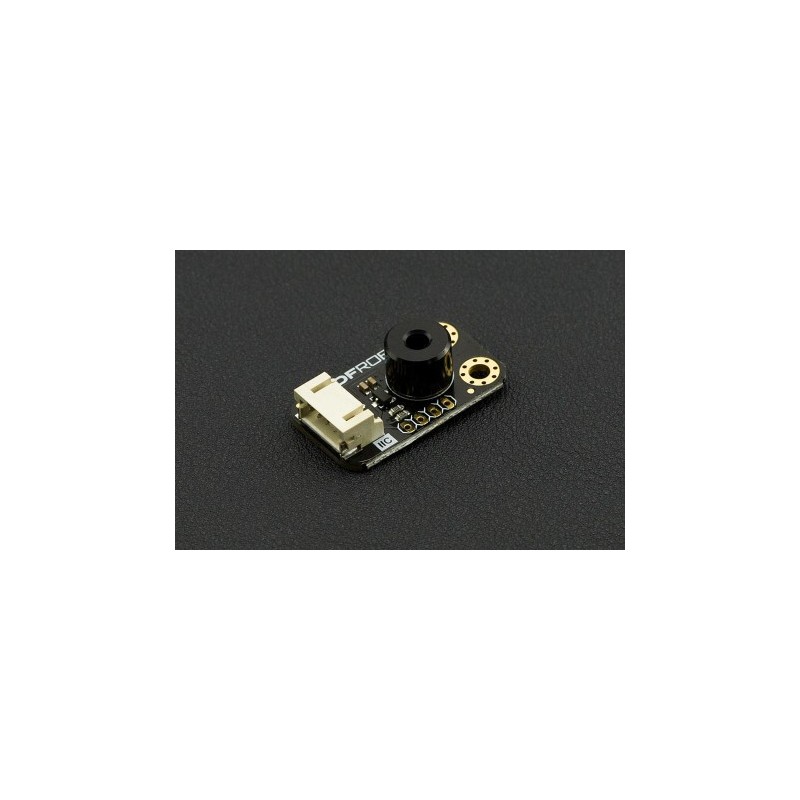

Sensor de temperatura sem contacto para Arduino

:SEN06030
18,90 €
preço com IVA incluído

Este módulo mede a temperatura da superfície através da detecção de energia de radiação infravermelha e distribuição de comprimento de onda. A sonda de temperatura IR faz parte de um sistema de processamento de sinal, com uma componente óptica, um detector fotoelétrico, amplificador,  e módulo de saída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

This module measures the surface temperature by detecting infrared radiation energy and wavelength distribution. The IR temperature probe consists of an optical system, photoelectric detector, amplifier, signal processing and output module. The optical system collects the infrared radiation in its field of view and the infrared radiation energy is converted in to corresponding electrical signals when converging on the photoelectric detector. After being processed by the amplifier and signal processing circuit, the signal is converted in to a temperature value. The MLX90614 is self calibrating and has a low noise amplifier integrated in to the signal processing chip. The chip itself is a 17 bit ADC and DSP device, giving accurate and reliable results.


SPECIFICATION

  • Operating Voltage: 3.3V - 5V
  • Operating Current: 1.2mA
  • Temperature: -70.01℃ to +382.19℃, (0.01 ℃ resolution)
  • Interface Type: I2C
  • Interface Line Sequence: VCC, GND, SCL, SDA
  • Dimensions: 31.5*18 mm/1.24 x 0.7 inches
  • Weight: 15g

Arduino sample code:

/***************************************************
* IR Thermometer Sensor-MLX90614
* ****************************************************
* This example will measure the ambient temperature and object temperature through the I2C bus

* @author jackli(Jack.li@dfrobot.com)
* @version  V1.0
* @date  2016-2-2

* GNU Lesser General Public License.
* See <http://www.gnu.org/licenses/> for details.
* All above must be included in any redistribution
* ****************************************************/
#include < Wire.h >
#include < IR_Thermometer_Sensor_MLX90614.h >

IR_Thermometer_Sensor_MLX90614 MLX90614 = IR_Thermometer_Sensor_MLX90614();

void setup() {
    Serial.begin(9600);
    MLX90614.begin();
}

void loop() {
    Serial.print("Ambient = ");
    Serial.print(MLX90614.GetAmbientTemp_Celsius());
    Serial.println(" *C");
    Serial.print("Object  = ");
    Serial.print(MLX90614.GetObjectTemp_Celsius());
    Serial.println(" *C");
    Serial.print("Ambient = ");
    Serial.print(MLX90614.GetAmbientTemp_Fahrenheit());
    Serial.println(" *F");
    Serial.print("Object  = ");
    Serial.print(MLX90614.GetObjectTemp_Fahrenheit());
    Serial.println(" *F");

    Serial.println();
    delay(500);
}

DOCUMENTS

SEN06030
