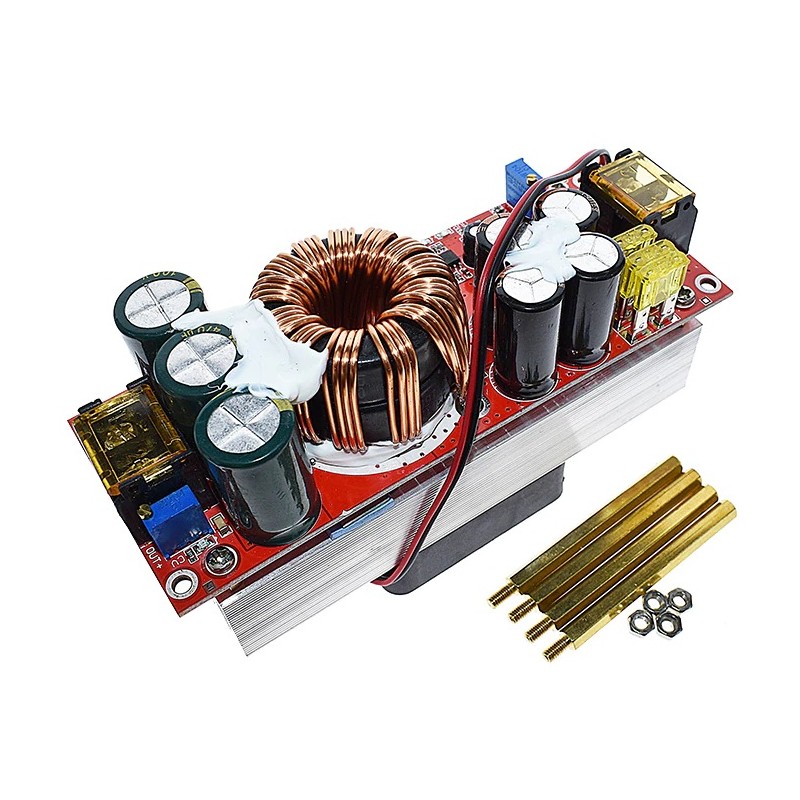

Step-Up Ajustável DC-DC 12~97V 30A 1500W

: FAL08050
32,48 €

Com este potente conversor (1500W / 30A) de tensão do tipo STEP-UP poderá converter tensões mais baixas em tensões mais elevadas. Aceita tensões na entrada entre 10~60Vdc e permite regular a saída entre 12~97Vdc. A regulação é feita através de um potenciómetro multivoltas para obter um ajuste mais preciso.

Além de regular a tensão, tem também um potenciómetro onde poderá limitar a corrente máxima da saída até 22A. Esta função de limitação da corrente é muito útil para por exemplo gerir o carregamento de uma bateria, neste caso terá que regular a tensão máxima da carga da bateria e posteriormente regular a corrente de carga que pretende.

Pode tb ser usado com fonte de corrente constante para alimentação de LEDs de potência.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features:

  • This is a non-isolated DC-DC Step-UP power converter module.
  • High power and stable output, it converts 10~60VDC to 12~97VDC.
  • High quality components ensures high conversion efficiency, up to 97%.
  • Designed with smart temperature control fan, which will automatically work when temperature reaches about 60°, and stop when temperature drops below 60°.
  • Widely used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and various batteries charging.

Layout

Specification:
Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
Input Current: for 10~30V input voltage the maximum current is 35~40A; for 31~60V input voltage the maximum current is 30~35A
Quiescent Current: 15mA (when convert 12V to 20V, higher output voltage will increase quiescent current)
Output Voltage: 12~97V continuously adjustable (cannot be used to step down voltage)
Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8~22A(+/-0.3A)
Reverse Input Protection: Yes (150A power MOS reverse protection)
Input Low Voltage Protection: Yes (10~50V adjustable, self-recovery)
Operating Temperature: -40° to 85°(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over Current Protection: Yes (automatically protect when input is more than 40A, and power supply voltage will not increase)
Short Circuit Protection: Yes (input 60A fuse) please operate carefully, try not to cause short circuit.
Reverse Input Protection: Yes (150A power MOS tube, can be connected reversely for long time)
Installation Method: Four 3mm standoffs
Wiring Method: Terminal blocks (Please use large current copper wire)
Output Power: Max. Output Power = Input Voltage*30A (If input 12V, the max output power=12V*30A = 360W)
(If input 24V, the max output power=24V*30A = 720W)

Weight: 372g / 13.1oz (approx.)



Package list:
1 * Module



Instructions:
Module output should not short circuit or measure current directly  with multimeter short circuit, short circuit will burn out module.
Under voltage adjustable range: 10~50Vdc (clockwise to increase, counterclockwise to reduce), firstly adjust under-voltage to the minimum, then adjust input voltage to required under-voltage protection value, slowly adjust under-voltage value clockwise to increase; when the under-voltage light is on, adjust counterclockwise of one circle, then power on again.
Input under-voltage protection mainly used to prevent battery from over-discharging when input power source is battery. Low battery voltage will damage power module and battery. When input is switching power supply, it also need to set the low voltage protection.
Constant voltage adjustable range: 12~97Vdc (clockwise to increase, counterclockwise to reduce), first adjust voltage to the required voltage and then connected to the load.
Constant current adjustable range: 0.8~22A (clockwise to increase and counterclockwise to reduce), first disconnect load, then adjust output voltage to required voltage, adjust current to the minimum (counterclockwise turn CC potentiometer about 30 circles), connect an ammeter in series to the output, then slowly adjust current.(booster module cannot directly adjust current by short circuit)
Input voltage should not be lower than 10V or higher than 60V, (when input voltage is lower than 12V, please properly reduce the load).
Make sure the input voltage is at lease 2V lower than output voltage.
If use switching power supply or other secondary power supply, please make sure that power is 1.3 times greater or more than the power supply module's power.
During over current or under-voltage protection, output will still have voltage that is close to the input voltage, protection means no boosting voltage.

Size
