Conversor DC-DC Step-Down XH-M401 1,25~36Vdc 8A/200W

: FAL08049
7,80 €
preço com IVA incluído

Com este conversor de tensão do tipo STEP-DOWN (200W / 5A valores máximos) poderá converter tensões mais elevadas em tensões mais baixas. Aceita tensões na entrada entre 4~40Vdc e permite regular a saída entre 1.25~36Vdc. A regulação é feita através de um potenciómetro tipo knob para maior simplicidade de ajuste.

Quantidade
Sem Stock


DSCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

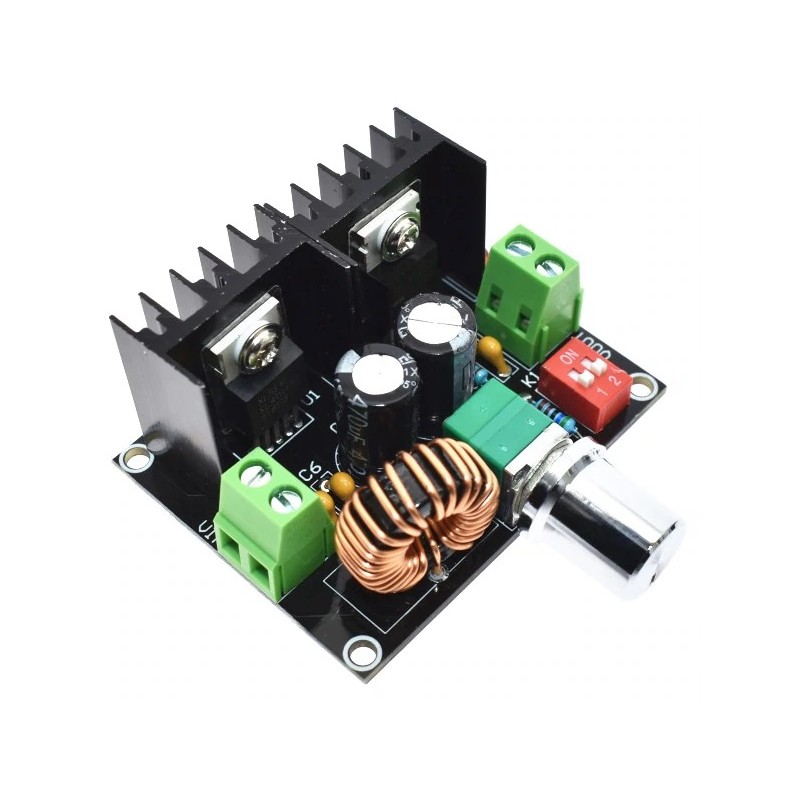

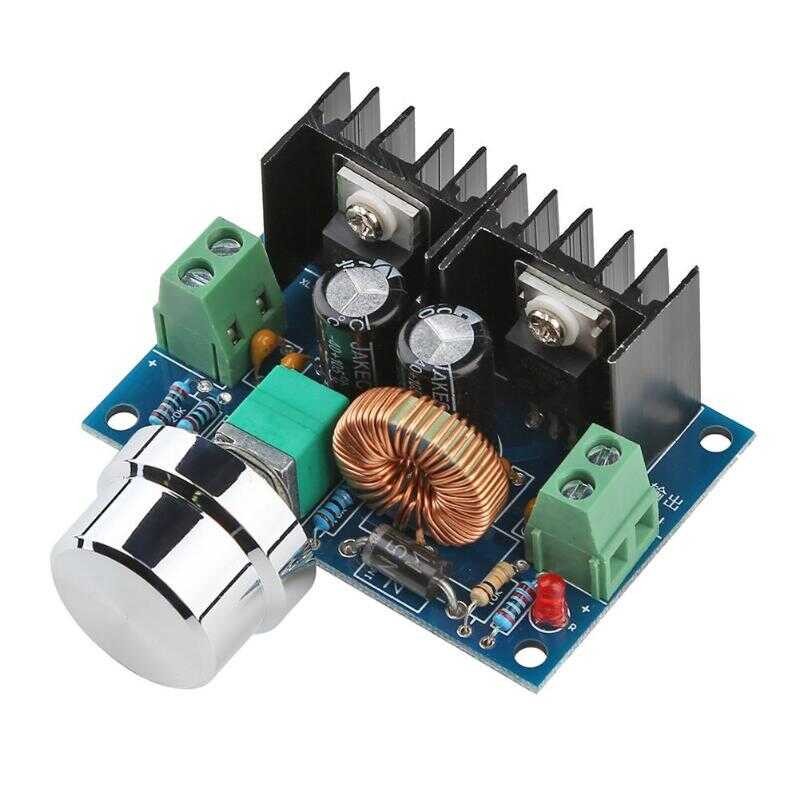

XH-M401 DC-DC Step Down Converter

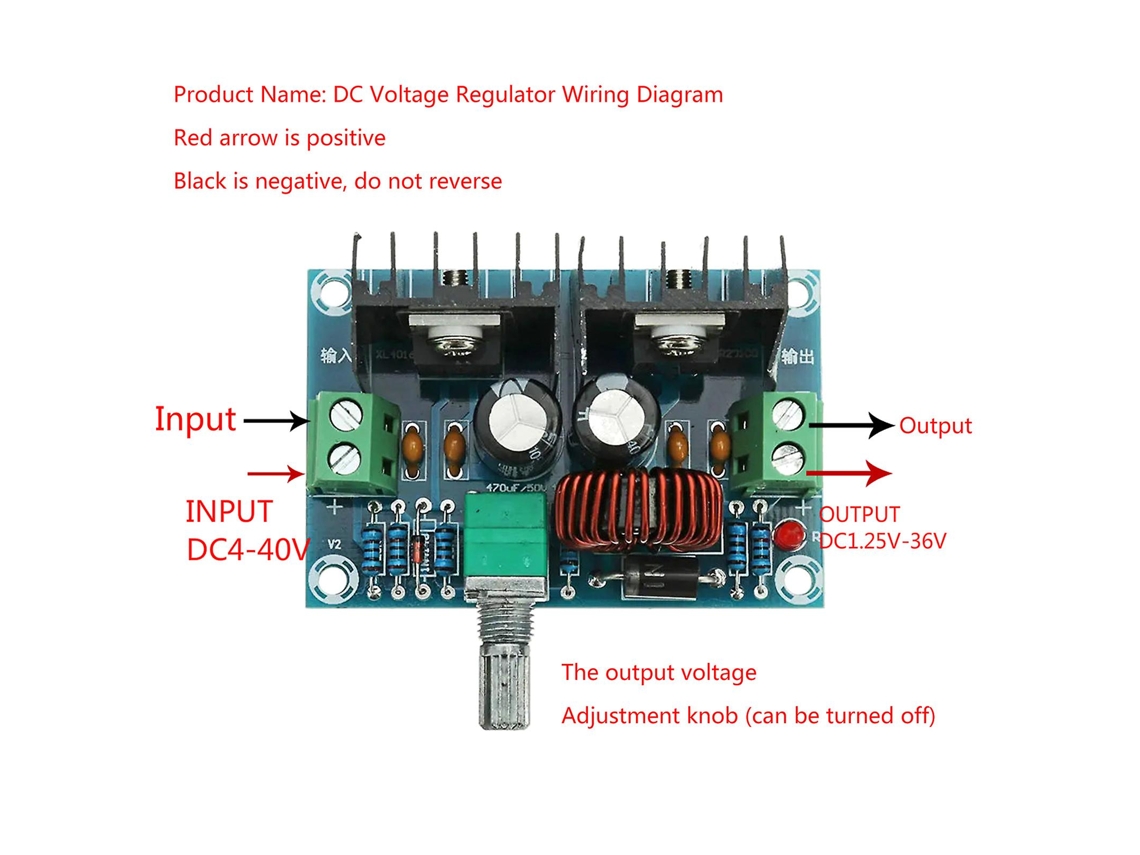

The XH-M401 voltage converter has a potentiometer for regulating the output voltage. With this a stepless regulation of the voltage is possible.

In addition, the potentiometer has an off position, i.e. it is possible to turn off the output. The power supply is best suited for a fixed installation, especially if the voltage is to be switched off or changed more often. The large rotary knob provides a convenient operation.

Furthermore, this step-down module is particularly efficient. The efficiency is 94%. So if it is important that as little energy as possible is lost in the form of heat, this module is just right. This power supply is also a good choice when it comes to delivering a lot of power.

Without additional cooling, currents of up to 5A can be retrieved. This value can be increased up to 8A if a fan or similar is used for cooling.

The built-in protection devices, such as the short-circuit protection or the overheating protection, grant the user a higher level of safety during use. At the same time, they increase the possible service life of the power supply.

Specifications:

✔️ Input voltage: 4-40V

✔️ Output voltage: 1.25-36V

✔️ Starting current: 5a constant, with additional cooling 8a

✔️ efficiency: 94%

✔️ Dimensions: 61x41x27mm

✔️ Weight: 47g

FAL08049
