Sensor Ultrasons URM08-RS485 (35~550cm)

:SEN07018
89,90 €
preço com IVA incluído

Com compensação de temperatura a leitura deste ultrassom é muito mais precisa do que de um ultrassom normal. Aliado a esta precisão, este sensor está montado num involucro metálico para dar ainda mais fiabilidade e robustez, tornado-o assim à prova de água, pó e corrosão.

Pode ser aplicado para medir o nível de líquidos, detetar passagem de objectos, entre outras aplicações.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

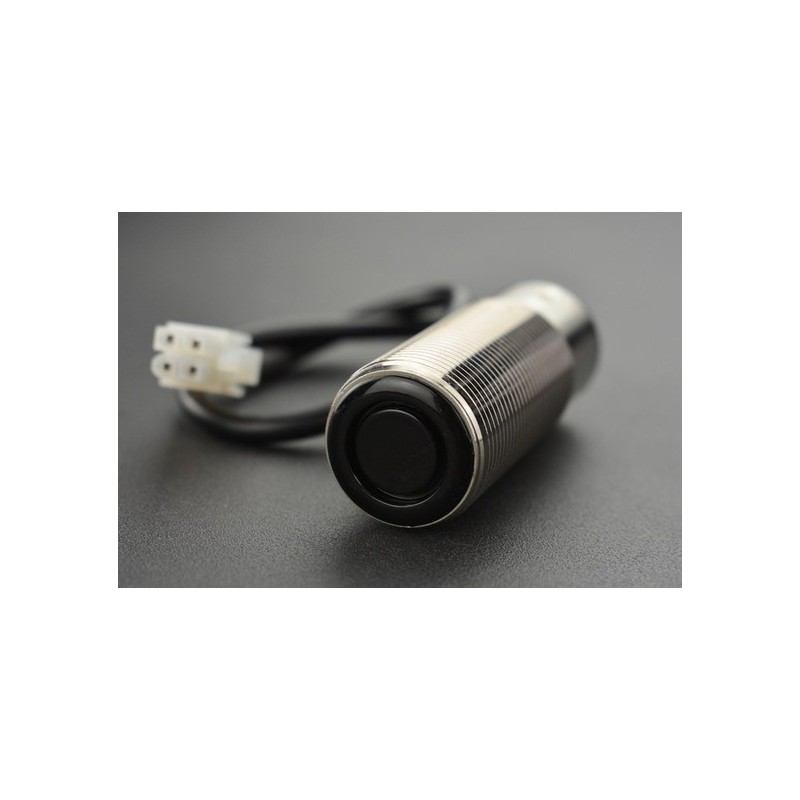

With an internal temperature compensation and accurate distance detection, URM08-RS485 is a combination of temperature measurement device and distance inspection tool. The inner is fully enclosed and the external is made of metal crust, which has brought advantages such as waterproof, dustproof and corrosion resistance… It is applicable to detections of liquid level, levels, and barrier applications. As a high standard sensor, it guarantees smaller blind zone and larger inspection range. On the premise of stable output data, it shows better measurement capabilities in the market of temperature sensors and distance detection sensors.

Specification

  • Operating Voltage: DC 6.0 ~ 12.0V
  • Operating Current: 250mA
  • Effective Range: 35 ~ 550 cm
  • Distance Resolution: 1cm
  • Temperature Resolution: 0.1°C
  • Temperature Error: ± 1 ℃
  • Measurement Period: 70ms
  • Operating Temperature Range: -10 ~ 70 ℃
  • Distance Error: ±1%
  • Operating Humidity Range: RH<75%
  • Acoustic Frequency: 38 ~ 42KHz
  • Direction Angle: 60 °
  • Protection Degree: IP65
  • Communication Interface: RS485

Documents

Shipping List

  • URM08-RS485 U ltrasonic Ranging Sensor x1
  • Screw Nuts x2
  • Metal Pads x2
  • Adaptor Wire x1



SEN07018
