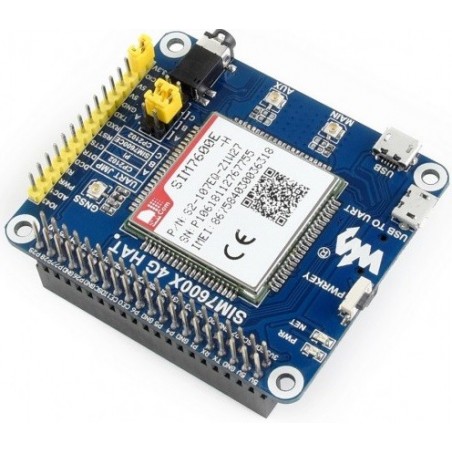

HAT 4G / 3G / 2G / GSM / GPRS / GNSS para Raspberry Pi, LTE CAT4 - SIM7600E

: PCO01115
52,64 €

O SIM7600E-H 4G HAT é um módulo de posicionamento GNSS / GPS e de comunicação 4G / 3G / 2G, que suporta LTE CAT4 até 150Mbps para transferência de dados downlink.

Baixo consumo de energia.

Poderá usar este módulo 4G com o computador para navegar na Internet ou conectá-lo ao Raspberry Pi para ativar funções como conexão 4G de alta velocidade, comunicação sem fios, fazer chamadas telefónicas, enviar SMS, posicionamento global, etc.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

The SIM7600E-H 4G HAT is a 4G/3G/2G communication and GNSS / GPS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption.

You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc.

Features

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the working status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Communications Specifications

 LTEWCDMA / TD-SCDMA / CDMA 2000EDGEGSM/GPRS
Band SIM7600A-H:
-- LTE-FDD B2/B4/B12
SIM7600A-H:
-- UMTS/HSPA+ B2/B5
Not available
SIM7600E-H:
-- LTE-FDD B1/B3/B5/B7/B8/B20
-- LTE-TDD B38/B40/B41
SIM7600E-H:
-- UMTS/HSPA+ B1/B5/B8
GSM/GPRS/EDGE 900/1800 MHz
SIM7600CE-T:
-- LTE-TDD B38/B39/B40/B41
-- LTE-FDD B1/B3/B8
SIM7600CE-T:
-- UMTS/HSDPA/HSPA+ B1/B8
-- TD-SCDMA B34/B39
-- CDMA 1X/EVDO BC0
Generation 4G 3G 2.5G 2G
Emitting power 0.25W 0.5W@EGSM900
0.4W@DCS1800
2W@GSM900
1W@DCS1800
Data Speed LTE CAT 4
Uplink≤50 Mbps
Downlink≤150 Mbps
UMTS
Uplink≤384Kbps
Downlink≤384Kbps
EDGE
Uplink≤236.8kbps
Downlink≤236.8kbps
GPRS
Uplink≤85.6kbps
Downlink≤85.6kbps
    HSPA+
Uplink≤5.76Mbps
Downlink≤42Mbps

SIM Card Normal SIM (Not Included)

GNSS Specifications

  • Receiver type
    • 16-channel
    • C/A code
  • Sensitivity
    • Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
    • Cold starts: -148 dBm
  • Time-To-First-Fix (open air)
    • Cold starts: <35s
    • Hot starts: <1s
  • Accuracy
    • Position: <2.5m CEP

SMS and Audio Specifications

  • SMS
    • Supported types: MT, MO, CB, Text, PDU
    • Storage: USIM card and ME (default)
  • Audio feature
    • Supports echo cancellation
    • Supports noise reduction

Other Specifications

  • Power supply: 5V
  • Operating voltage: 5V/3.3V (configured via jumper)
  • Operating temperature: -30°C ~ 80°C
  • Storage temperature: -45°C ~ 90°C
  • Dimension: 56.21mm x 65.15mm

What's on Board


  1. SIM7600E-H
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. MP1482 power chip
  7. Raspberry Pi GPIO header: for connecting with Raspberry Pi
  8. SIM7600 control interface: for connecting with host boards like Arduino/STM32
  9. SIM card slot: supports 1.8V/3V SIM card
  10. TF card slot: allows file/SMS/... storage
  11. 3.5mm earphone/mic jack
  12. USB interface: for testing AT Commands, getting GPS positioning data, etc.
  13. USB to UART interface: for serial debugging, or login to Raspberry Pi
  14. MAIN antenna connector
  15. AUX antenna connector
  16. GNSS antenna connector
  17. Power switch
  18. Network status indicator
  19. Power indicator
  20. Operating voltage selection jumper:
    VCCIO - 3.3V: set operating voltage as 3.3V
    VCCIO - 5V: set operating voltage as 5V
  21. UART selection jumper:
    A: access Raspberry Pi via USB to UART
    B: control the SIM7600 by Raspberry Pi
    C: control the SIM7600 via USB to UART

Dimension


Development Resources

Wiki : www.waveshare.com/wiki/SIM7600E-H_4G_HAT



PACKAGE CONTENT

Weight: 0.191 kg

Note: the Raspberry Pi in the photo is NOT included.

  1. SIM7600E-H 4G HAT x1
  2. LTE Antenna x1
  3. GPS External Antenna (B) x1
  4. USB type A plug to micro plug cable x2
  5. RPi screws pack (2pcs) x1

1SIM7600E-4G-HAT-1_93.jpg 2LTE-Antenna_93.jpg 3GPS-External-Antenna-B_93.jpg 4USB-type-A-plug-to-Micro-B-plug-cable-x2 5RPi-screws-pack-16-x2.jpg

PCO01115
