• DESCONTINUADO

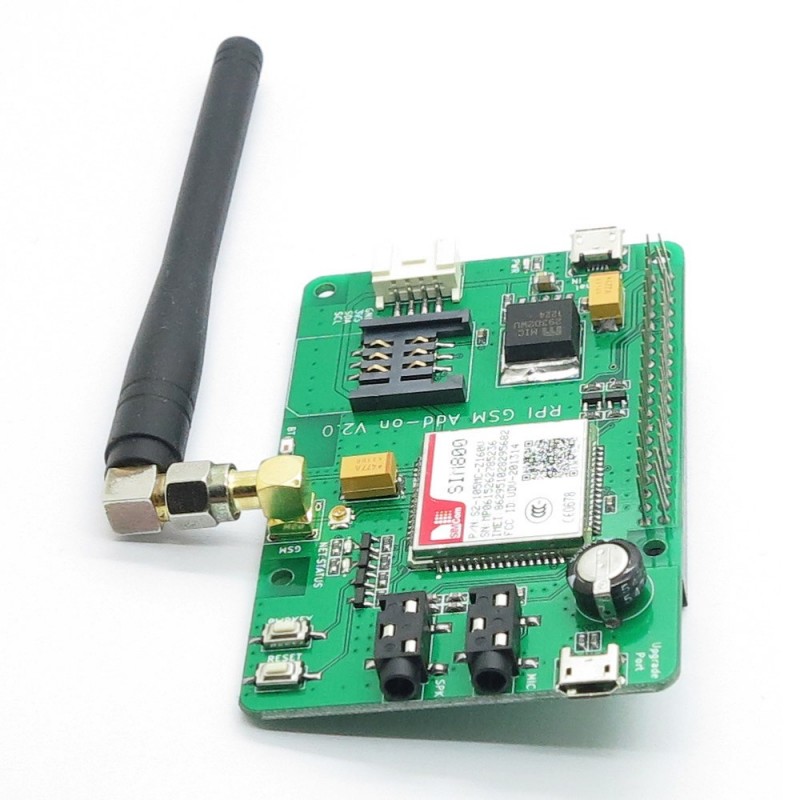

Raspberry Pi SIM800 GSM/GPRS Add-on V2.0

:PCO01100
33,74 €
preço com IVA incluído

Raspberry PI GSM Add-on V2.0 é uma shield personalizada para a Raspberry Pi interface baseado no SIM800 quad-band GSM/GPRS/BT module.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

Raspberry PI GSM Add-on V2.0 is customized for Raspberry Pi interface based on SIM800 quad-band GSM/GPRS/BT module. AT commands can be sent via the serial port on Raspberry Pi, thus functions such as dialing and answering calls, sending and receiving messages and surfing on line can be realized. Moreover, the module supports powering-on and resetting via software.

Note: antenna is included into the package.

Note: V1.0 is customized for Raspberry Pi.



Documents

Please visit wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Technical support

For technical support, please open a ticket on Itead Support System.

Additional Information

Link Wiki No
EWeLink Support No
Module Type No
Weight 70 g
Model IM150720001
Board Size 85mm*56mm*1.6mm
Version V2.0
Operation Level Digital 3.3V
PCO01100
