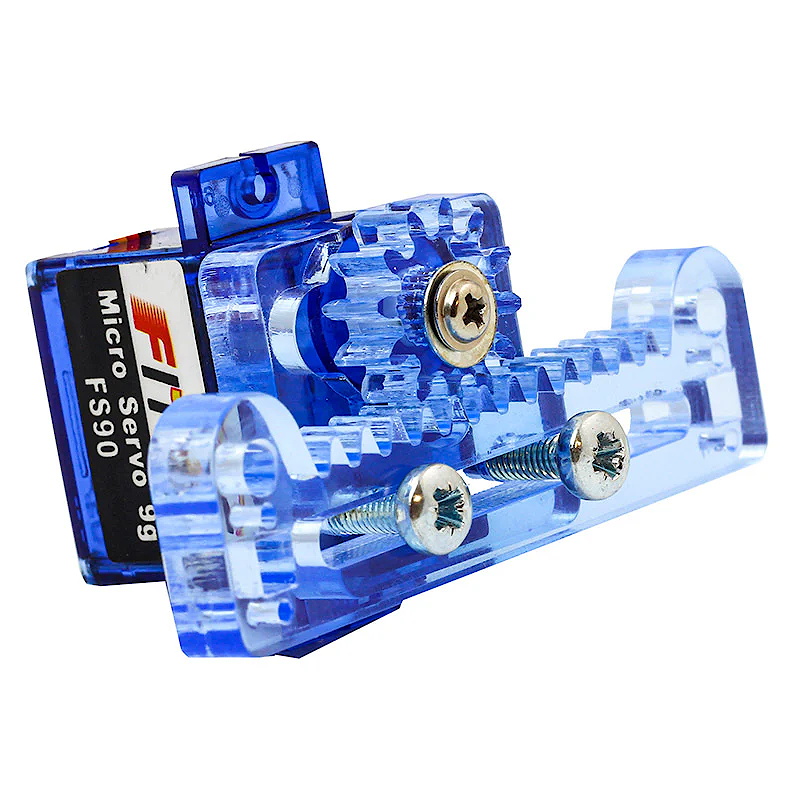

Kit Atuador Linear com Micro Servo - Kitronik 2595

: MOT03061
6,91 €

O Atuador Linear converte o movimento circular de um servo de 180 graus (fornecido) em movimento em linha reta, para um lado e depois para o outro. Pode ser montado num projeto para fornecer movimento horizontal ou vertical.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Linear Actuators are useful for a whole host of different applications, like; robots, automated button switching, steering racks for buggies, a point switcher on a model railway, animating a diorama display, etc. Linear actuators are also used extensively in industry and in consumer products, such as; valves, cams, floppy disk drives and optical disk drives, just to name a few.


An example of a fully assembled linear actuator being used with a servo:lite board and BBC microbit.



The Linear Actuator has been cut from a 5mm clear blue Perspex Sheet, the same material as used in our servo powered Klaw gripper. There are a range of mounting holes at either end of the rack including a 3mm hole, a 3mm square, and standard servo horn holes suitable for wire (1mm dia) and it has approximately 20mm of travel. It has a gear ratio of 2:3 and the stall torque of the provided servo is 1.5kg/cm at 6V and 1.3kg at 4.8V.



Features:

  • The Linear Actuator converts the circular movement of a 180 degree servo (supplied) into motion in a straight line.
  • It is supplied with a 180 degree FS90 servo and fixings.
  • Useful for a wide range of applications, such as; robotics, switching, animating displays and more.
  • Use with boards such as microbit, Arduino, or RaspberryPi.



Contents:

  • Linear Actuator Laser Cut Parts.
  • 1 x Micro 180 Degree Servo and fixings.
  • 2 x M3x 10 Pozi PanSteel M/C.
  • 1 x M3 Form A Steel Washer.
  • Linear Actuator assembly Instructions.



Video:



Requires:

  • Small Phillips Screwdriver.
