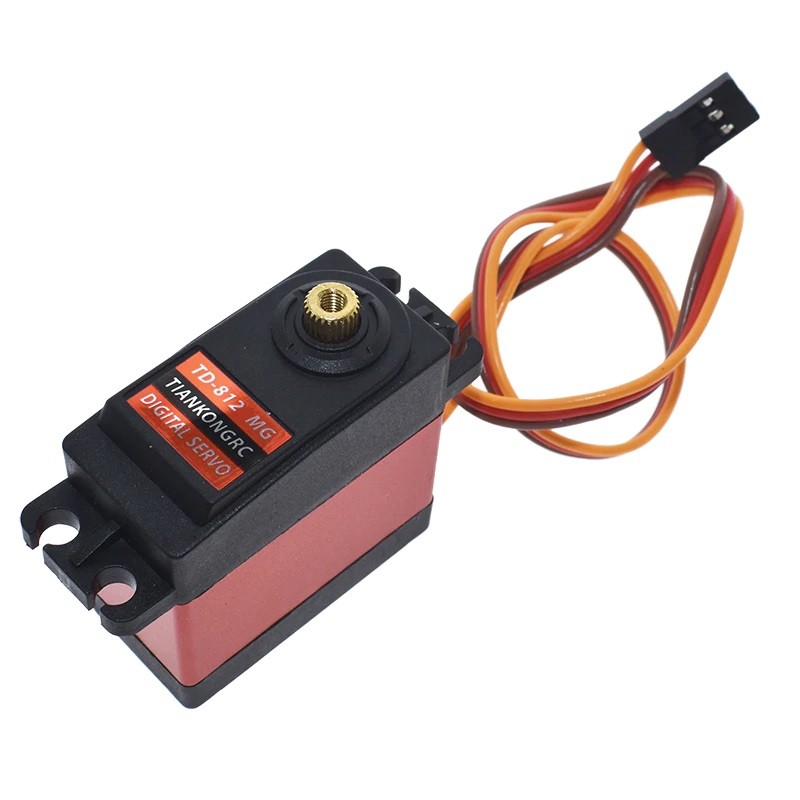

Servo 180º 25Kg - TD-8125MG

:MOT03038
18,85 €
preço com IVA incluído

Com este poderoso servo poderá mover cargas até 25Kg afastadas 1cm do eixo de rotação do servo. Com rotação de 180º os limites podem ser ajustados com pulsos entre 500~2500us.

Nota: Ter em atenção que este servo, em carga, pode atingir 2.5A de corrente quando alimentado a 6V. Deverá providenciar uma fonte de alimentação adequada e não é recomendável fazer a alimentação do servo a partir do Arduino.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

A very powerful servo that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things.

Specifications:

  • Voltage range: 4.8V ~ 6.6V DC
  • Dimensions: 40x20x40.5mm (see images for more dimensions)
  • No-load speed: 0.18 seconds/60 degrees (4.8V); 0.16 sec/60 degrees (6.6V)
  • Torque: 23.5kg · cm (4.8V); 26.5kg · cm (6.6V)
  • Rotation range: 180 degrees
  • Waterproof (splash water)
  • Material gears: Metal

Note: This servo can draw relatively high currents, especially with a load (up to approximately 2500mA at 6V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the Arduino as power supply.

Note: If the servo has less than 180 degrees range, the minimum (500us) and maximum pulse width (2500us) must be adjusted in the controller.
