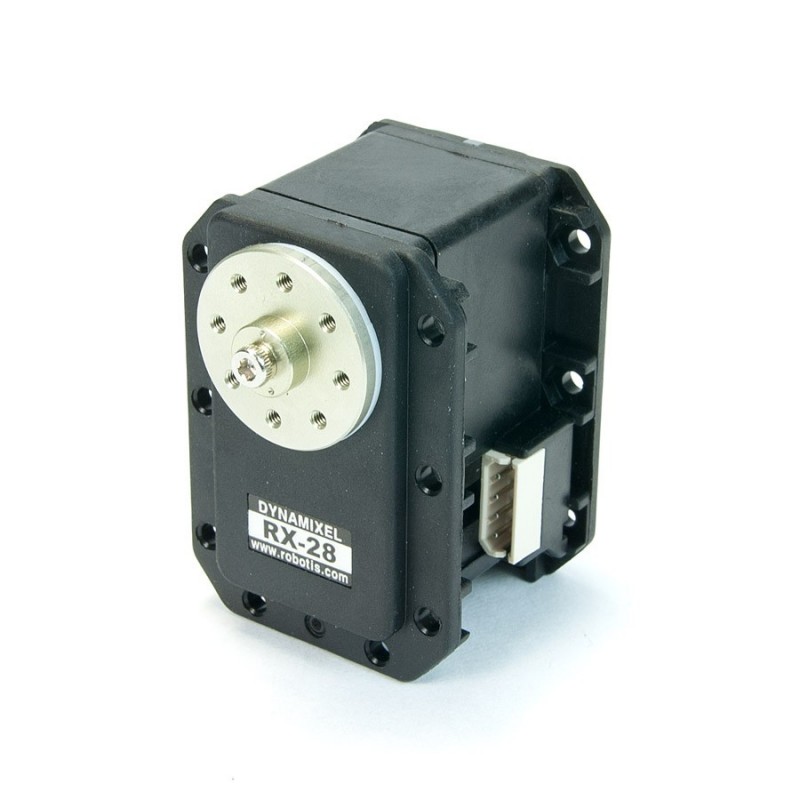

Servo DYNAMIXEL RX-28 HN07-N101
  • Servo DYNAMIXEL RX-28 HN07-N101

Servo DYNAMIXEL RX-28 HN07-N101

:MOT03026
199,19 €
preço com IVA incluído

DESCONTINUADO

Dynamixel is a robot exclusive smart actuator and an all-in-one module composed of a reduction gear head, controller, driver and network function.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



- The RX28 HN07-N101(NEW horn) is included in the RX28 HN07-N101 Type.



** INCLUDES

Description

Qty

DYNAMIXEL

RX-28

1

HORN

RX28-HN07-N101

1

WASHER

Thrust Washer

1

CABLE

4P Cable 200mm

1

BOLT/NUT

Wrench Bolt M2.5*6

16pcs

Wrench Bolt M2.5*8

1

Wrench Bolt M2*3

10

Nut M2.5

18pcs



** H/W SPECS

Product name

DYNAMIXEL RX-28 HN07-N101 Type

Weight

72g

Dimension

35.5mm x 50.8mm x 41.8mm

Gear Ratio

193 : 1

Operation Voltage (V)

14.8

Stall Torque (N.m)

2.5 (14.8V)

Stall Current (A)

1.5

No Load Speed (RPM)

67 (14.8V)

Motor

Maxon Motor

Minimum Control Angle

About 0.29 degrees x 1,024

Operating Range

Actuator Mode : 300°

Wheel Mode : Endless turn

Operating Voltage

12~18.5V (Recommended voltage : 14.8V)

Operating Temperature

-5C ~ 80C

Command Signal

Digital Packet

Protocol

RS485 Asynchronous Serial Communication (8bit,1stop,No Parity)

Link (physical)

RS485 Multi Drop Bus

ID

254 ID (0~253)

Baud Rate

7843bps ~ 1 Mbps

Feedback Functions

Position, Temperature, Load, Input Voltage, etc.

Material

Case : Engineering Plastic

Gear : Full Metal

Position Sensor

Potentiometer

Default Setting

ID #1 (1 Mbps)



**Click : Compatibility Chart



** CONTROLLING ENVIRONMENT

- Software for Dynamixel control : ROBOPLUS - Download

- C/C++, C#, Labview, MATLAB, Visual Basic, etc. : Library – Download



**Click here to download 2D and 3D drawings

**Click here to go to e-Manual.
