Makeblock - 3 Ts + 1 de 4vias pneumáticas

:MOT09003
7,95 €
preço com IVA incluído

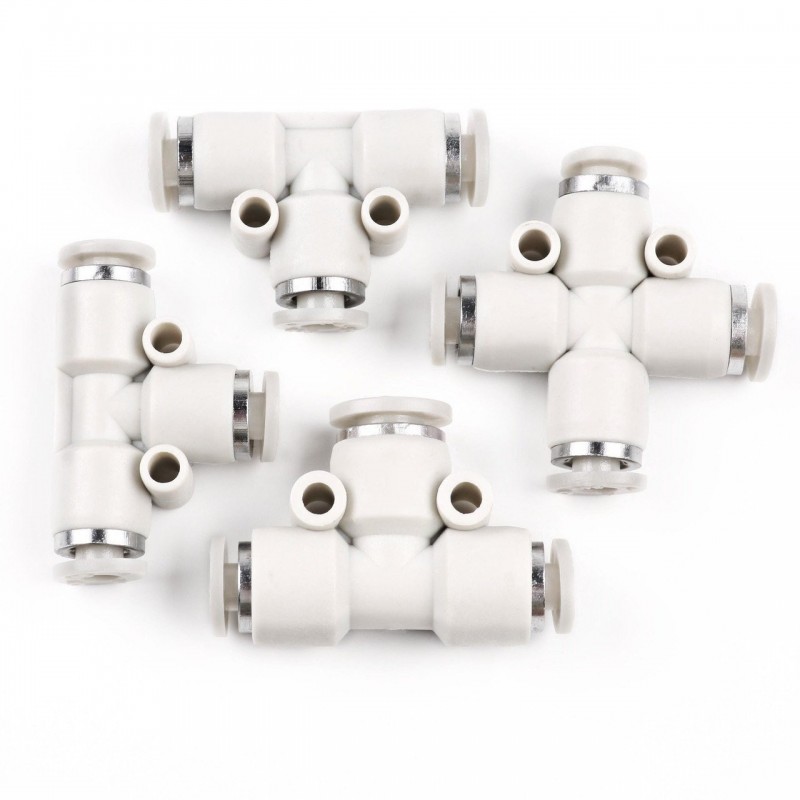

O pack de conectores pneumáticas da makeblock inclui 3 tipos de conectores pneumáticos usados com frequência:

  • 2 unidades conector T4 em T
  • 1 unidade  conector redução de φ6 para φ4 em T
  • 1 unidade conector cruzado em 4 vias de φ4.
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

Makeblock Pneumatic Parts Connector Pack includes 3 types of frequently-used pneumatic connectors: 2 x φ4 T-Coupling, 1 x φ6 - φ4 Reducing T-Coupling, and 1 x φ4 Cross Four-Way Connector.

Features:

φ4 T-Coupling
A T-shaped three-way connector with a diversion function, cooperated with control elements in pipeline system and used with φ4 air pipe.

φ6 - φ4 Reducing T-Coupling
One end is used with φ6 air pipe and the other two ends with φ4 air pipe. The channel is of T-through type and reduces the φ6 air pipe to φ4 air pipe.

φ4 Cross Four-Way Connector
It is a cross-shaped four-way connector with a diversion function, cooperated with control elements in pipeline system and used withφ4 air pipe.
Cross-shaped four-way and even division.

Size Charts(mm):

φ4 T-Coupling


φ6 - φ4 Reducing T-Coupling

φ4 Cross Four-Way Connector


Connection Illustration:

φ4 T-Coupling

φ4 Cross Four-Way Connector

φ6 - φ4 Reducing T-Coupling

MOT09003
