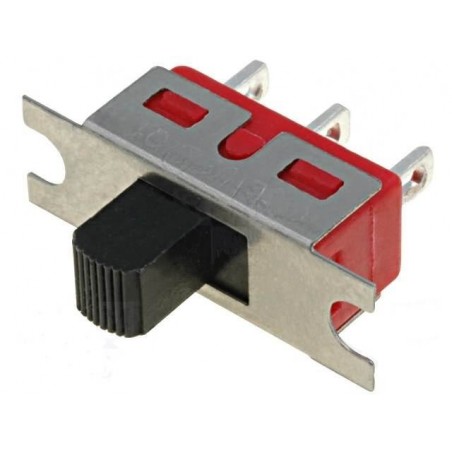

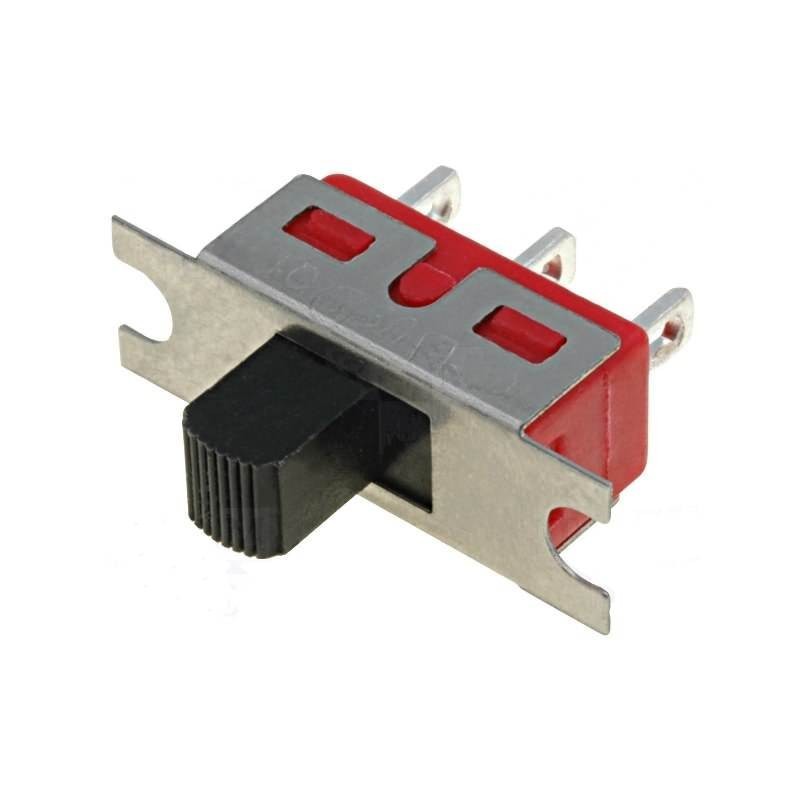

Interruptor deslizante 2 posições
  • Interruptor deslizante 2 posições

Interruptor deslizante 2 posições - Vertical

: CEL10015
1,35 €
preço com IVA incluído

Interruptor 2 posições; SPDT; 5A/120VAC; 5A/28VDC; ON-ON; 1000MΩ

Quantidade

Specification

  • Switch type slide
  • Stable positions number 2-position
  • Contacts configuration SPDT
  • AC contacts rating (at resistance load) 5 A / 120 VAC
  • DC contacts rating (at resistance load) 5 A / 28 VDC
  • Switching method ON-ON
  • Number of terminals 3
  • Body dimensions 19.56 x 6.1 x 6.35mm
  • Leads for soldering
  • Mounting screw type
  • Operating temperature -30...85°C
  • Knob height 5.08mm
  • Number of positions 2
  • Min. insulation resistance 1000MΩ
  • Mechanical durability 30000cycles
  • Switches features with mounting tabs
CEL10015

Downloads

5MS1S102BM1QE.pdf

Datasheet

Downloads (234.87k)
