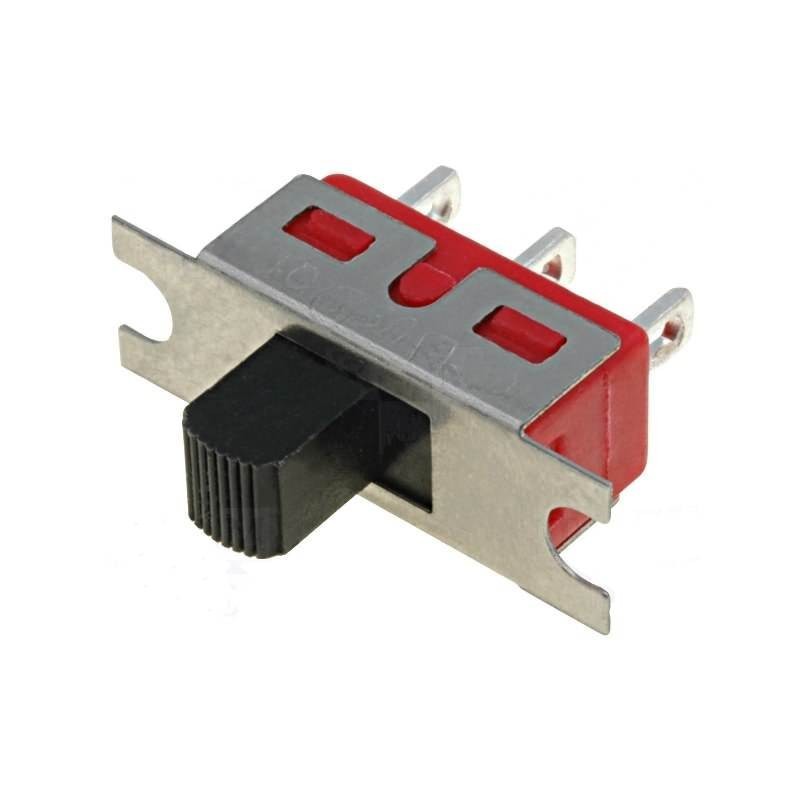

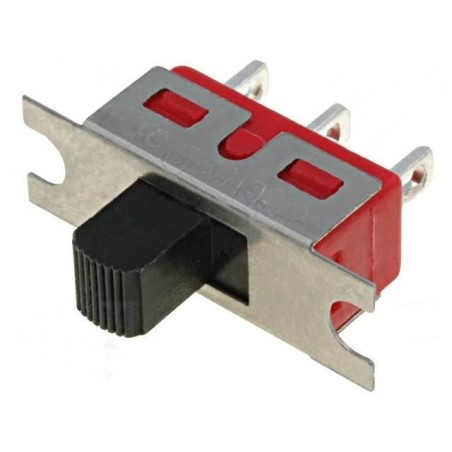

Switch slide 2-position
  •  Switch slide 2-position

Switch slide 2-position

: CEL10015
€1.10

Switch: slide; 2-position; SPDT; 5A/120VAC; 5A/28VDC; ON-ON; 1000MΩ



Quantity

Specification

  • Switch type slide
  • Stable positions number 2-position
  • Contacts configuration SPDT
  • AC contacts rating (at resistance load) 5 A / 120 VAC
  • DC contacts rating (at resistance load) 5 A / 28 VDC
  • Switching method ON-ON
  • Number of terminals 3
  • Body dimensions 19.56 x 6.1 x 6.35mm
  • Leads for soldering
  • Mounting screw type
  • Operating temperature -30...85°C
  • Knob height 5.08mm
  • Number of positions 2
  • Min. insulation resistance 1000MΩ
  • Mechanical durability 30000cycles
  • Switches features with mounting tabs
CEL10015

Download

5MS1S102BM1QE.pdf

Download (234.87k)
