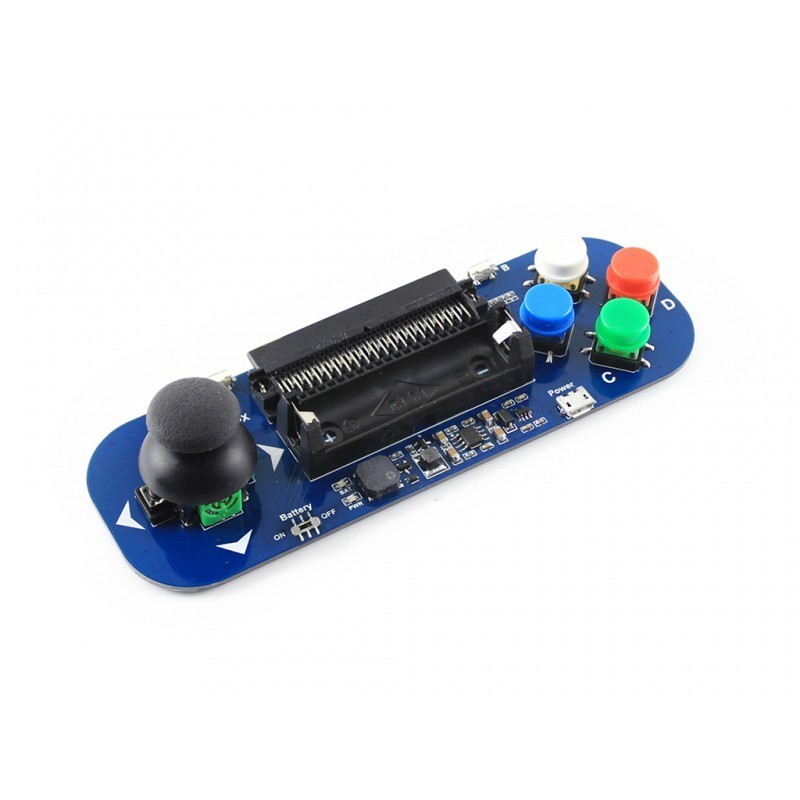

Gamepad para micro:bit, Joystick botões e suporte pilha 14500

: PCO07005
10,90 €
preço com IVA incluído

Este pequeno módulo adiciona um gamepad de arcade ao seu micro: bit, torna possível transformar o micro: bit numa mini consola de jogos.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.


Features

  • micro:bit edge connector, directly pluggable
  • High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
  • Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
  • Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
  • 4x colorful buttons
  • 2x side buttons, related to the A/B buttons of micro:bit, easy to use
  • Buzzer for playing music and game background effect
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

Specifications

  • Operating voltage: 5V
  • Battery type: 14500 Li-ion
  • Dimension: 150mm x 50mm

Pinouts

SYMBOL PIN DESCRIPTION
A 5 Button A
B 11 Button B
C 15 Button C
D 14 Button D
E 13 Button E
F 12 Button F
X 1 Joystick X axis
Y 2 Joystick Y axis
P 8 Joystick press
Buzzer 0 Buzzer

Dimensions

Joystick for micro:bit dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Joystick_for_micro:bit

Weight: 0.054 kg

Note: this product requires a 14500 battery to work, which are NOT included and should be purchased separately.

  1. Joystick for micro:bit x1
PCO07005
